st4/st6 series submersible pumps• operation anD parts manual — rev. #1 (11/12/13) — page 9

A

B

F

G

C

E

D

H

J

I

Dimensions

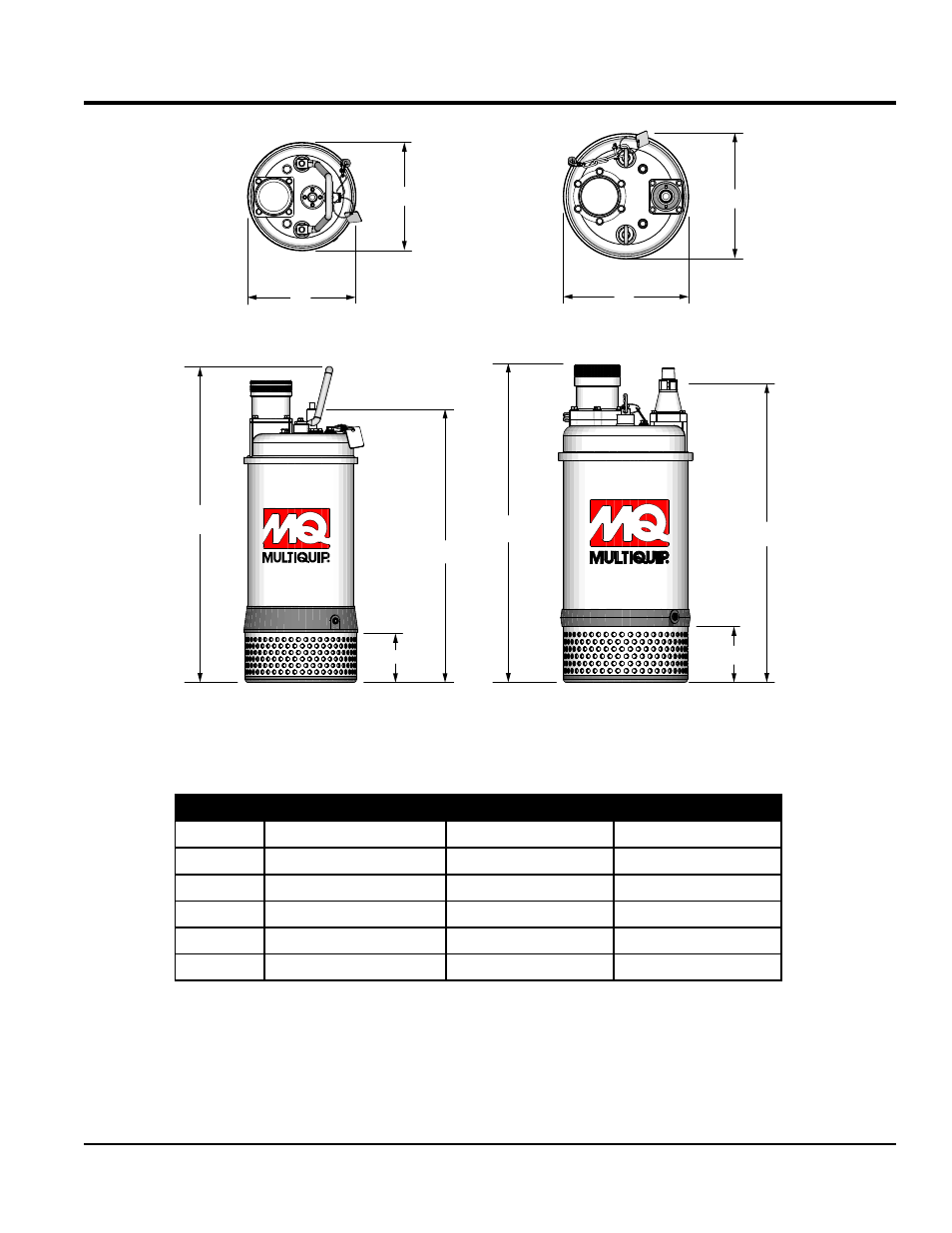

Figure 1. Pump Dimensions

table 2. Dimensions in. (mm)

reF. Des.

st41230/st4160

reF. Des.

st61230/st6160

A

11 (279)

F

14 (356)

B

11 (279)

G

14 (356)

C

32.5 (826)

H

34.75 (883)

D

5.5 (140)

I

5.5 (140)

E

28.25 (718)

J

31.0 (787)
