page 14 — st4/st6 series submersible pumps • operation anD parts manual — rev. #1 (11/12/13)
floaT swiTChes
Control boxes
For remote pumping applications, all four model submersible
pumps will require a control box (Figure 7).
For each model submersible pump there is an associated
control box. Reference Table 4 for the desired control box
and applicable heater. The heater size is determined by
the the full load amps the pump will draw.
These water-resistant control boxes provide electronic
overload protection a watertight enclosure and glands to
prevent water from leaking into the box, and a float switch
interface.
Each control box will require the use of
two SW-1WOPA
float switches, no plug, bare wires for direct connection to
the control box. Reference Figure 20 and Figure 21 for a
schematic reprensentation of each control box.
NOTICE
Contact Multiquip sales department to order control
boxes as listed in Table 4.
table 4. Control box specifications
Control box
model no.
used With
pump model
voltage,
3Ø
Heater
size
Heater
amps
running
amps
UL/CSA
listed
thermal
overload
protection
Float
switch
Capability
CB1269 ST41230 230 K69 27.7~30.1 28.6 YES YES YES
CB1274 ST61230 230 K74 40.2~45.5 43.0 YES YES YES
CB1456 ST41460 460 K56 13.6~14.5 14.3 YES YES YES
CB1463 ST61460 460 K63 20.6~22.5 21.5 YES YES YES

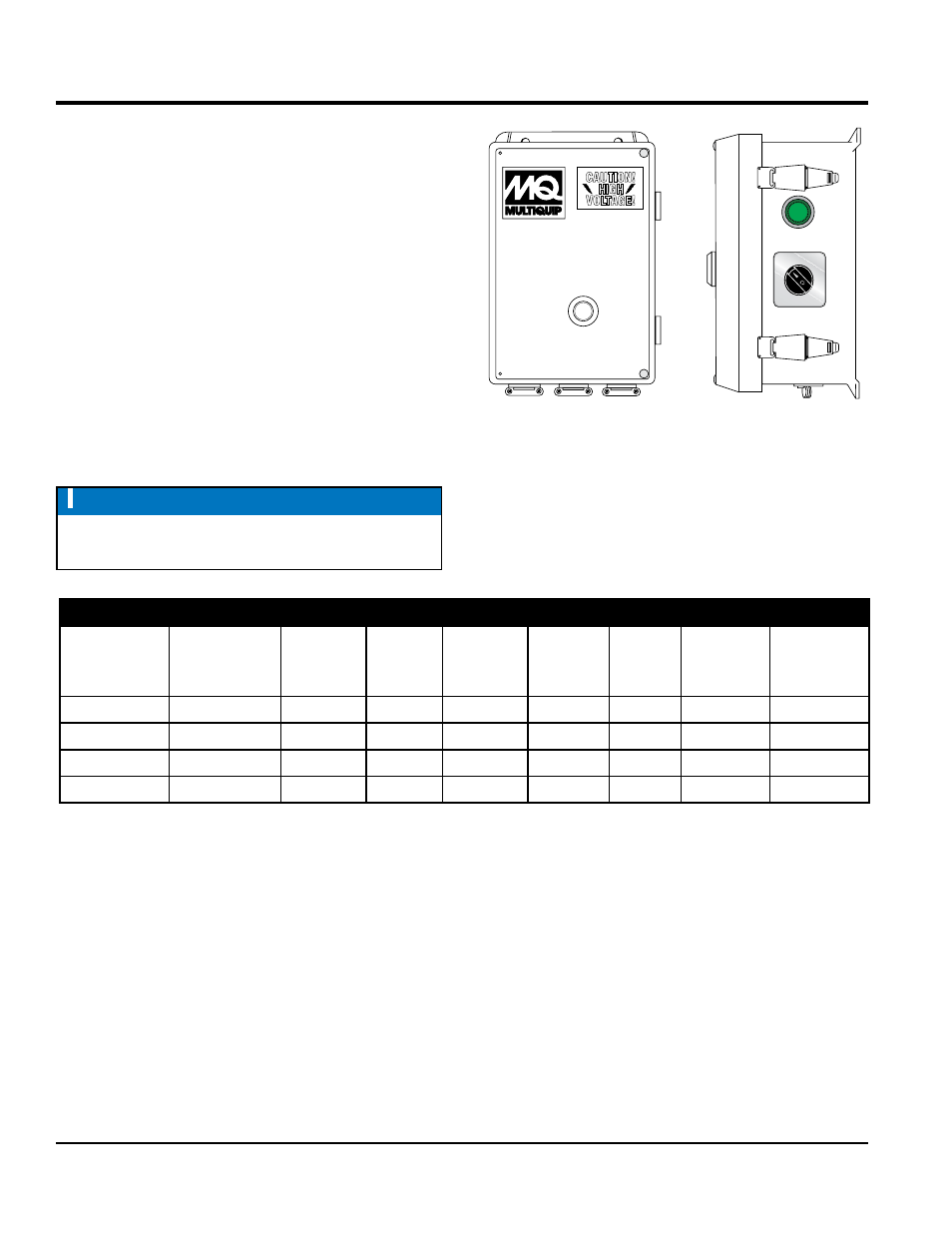

Figure 7. Electrical Control Box
(Typical)
CAUTION!
HIGH
VOLTAGE!
RESET
MAN
OFF
AUTO
