page 10 — SS233 SubmerSible pump • operaTion and parTS manual — rev. #2 (03/22/10)
COMpOnents
3
3
1
3
4
5
6
7
2

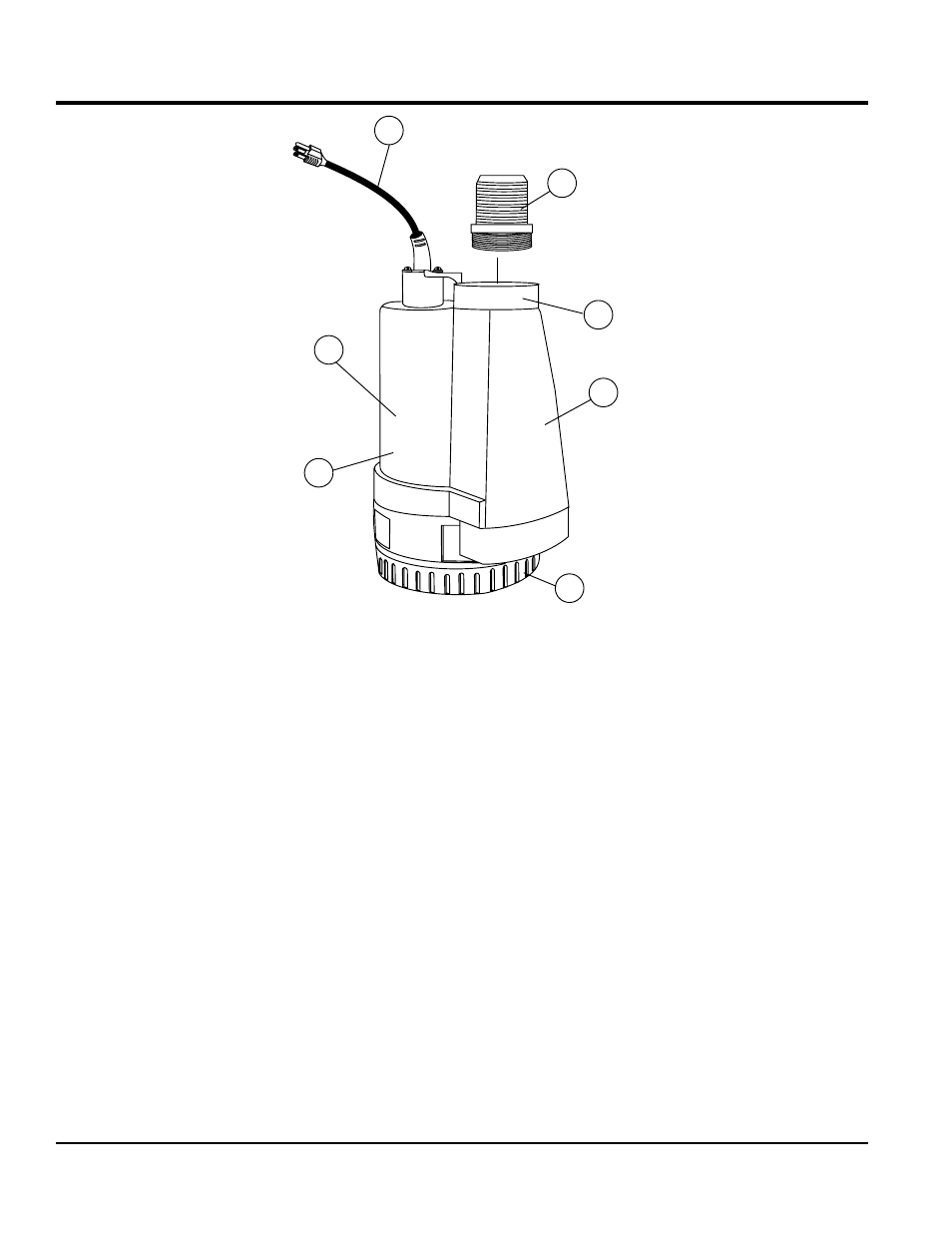

Figure 1. Submersible Pump Components
Figures 1 shows the location of the basic components
for the SS233 submersible pump. Listed below is a brief
explanation of each component.
1.
aC power Cable — This unit is supplied with a 20 ft.
(6.1 meters) AC power cable. Always check the cable
for signs of wear. NEVER! use a defective power cable.
Replace the cable immediately if the cable is worn or
defective.
2. 2-inch npT Fitting — Install this fitting into the
discharge port of the pump
3. discharge port — Connect a 2" NPT hose to this port.
Remember to adequately support the discharge hose
to avoid stress on the pump.
4. Thermal overload protection — This pump has an
internal thermal overload protection device that will
shut-down the motor in the event of high operating
temperatures. The motor will automatically restart once
the temperature returns to an acceptable operating
temperature.
5. Strainer base — This strainer base is made of durable
plastic. DO NOT pump large objects or debris with
this pump. This pump is for pumping water only. For
de-watering purposes, always place the strainer base
on a platform.
6. electric motor — This unit utilizes a single-phase,
115 V, 0.5 HP electric motor. Consult with a licenced
electrician before connecting motor to a power source.
Observe all city and local safety codes.
7. volute/impeller — Impellers are constructed of thermo
plastic to minimizes wear and prolong service life.
