PAGE 14 — QP2E CENTRIFUGAL PUMP • OPERATION AND PARTS MANUAL — REV. #0 (02/12/09)
BASIC ENGINE
1
2
3
4
5
6
8
7
9
10

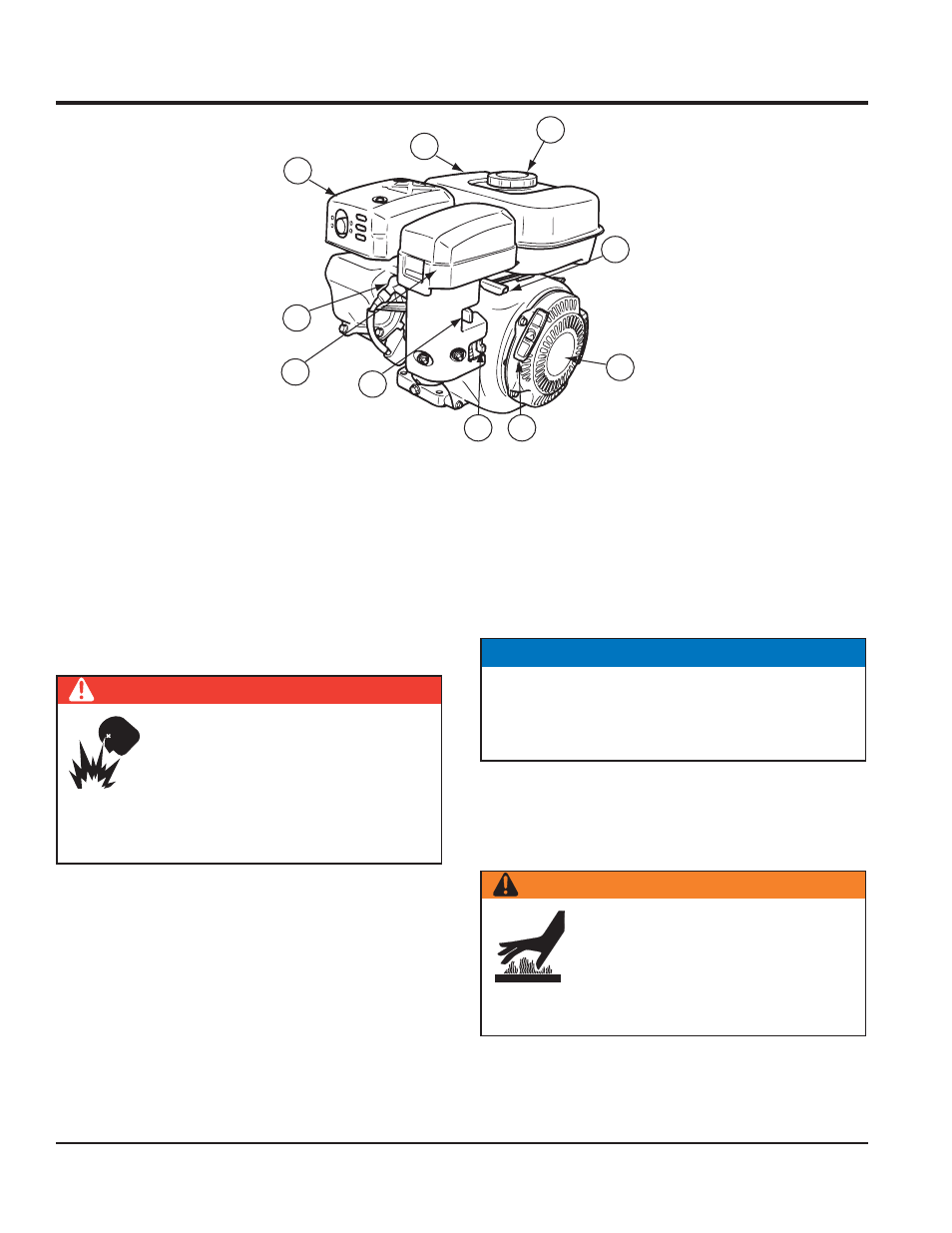

Robin Engine Components
Figure 3.
The engine (Figure 3) must be checked for proper
lubrication and fi lled with fuel prior to operation. Refer
to the manufacturer's engine manual for instructions and
details of operation and servicing.
Fuel Filler Cap
1.
— Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened
securely. DO NOT over fi ll.
Throttle Lever
2.
— Used to adjust engine RPM speed
(lever advanced forward - SLOW, lever back toward
operator - FAST).
Engine ON/OFF Switch
3. —
ON position permits engine
starting, OFF position stops engine operations.
Recoil Starter (pull rope)
4.
— Manual-starting method.
Pull the starter grip until resistance is felt, then pull
briskly and smoothly.
Fuel Valve Lever
5. —
OPEN to let fuel fl ow, CLOSE to
stop the fl ow of fuel.
DANGER
Adding fuel to the tank should be done
only when the engine is stopped and has
had an opportunity to cool down. In the
event of a fuel spill, DO NOT attempt to
start the engine until the fuel residue has
been completely wiped up and the area surrounding
the engine is dry.
Choke Lever
6.
— Used in the starting of a cold engine,
or in cold weather conditions. The choke enriches the
fuel mixture.
Air Cleaner
7.
— Prevents dirt and other debris from
entering the fuel system. Remove wing-nut on top of
air fi lter canister to gain access to fi lter element.
Spark Plug
8.
— Provides spark to the ignition system.
Set spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch).
Clean spark plug once a week.
Muffl er
9.
— Used to reduce noise and emissions.
Fuel Tank
10.
— Holds unleaded gasoline. For additional
information refer to engine owner's manual.
NOTICE
Operating the engine without an air filter, with a
damaged air fi lter, or a fi lter in need of replacement
will allow dirt to enter the engine, causing rapid engine
wear.
WARNING
Engine components can generate extreme
heat. To prevent burns, DO NOT touch
these areas while the engine is running
or immediately after operating. NEVER
operate the engine with the muffler
removed.
