PUMP COMPONENTS

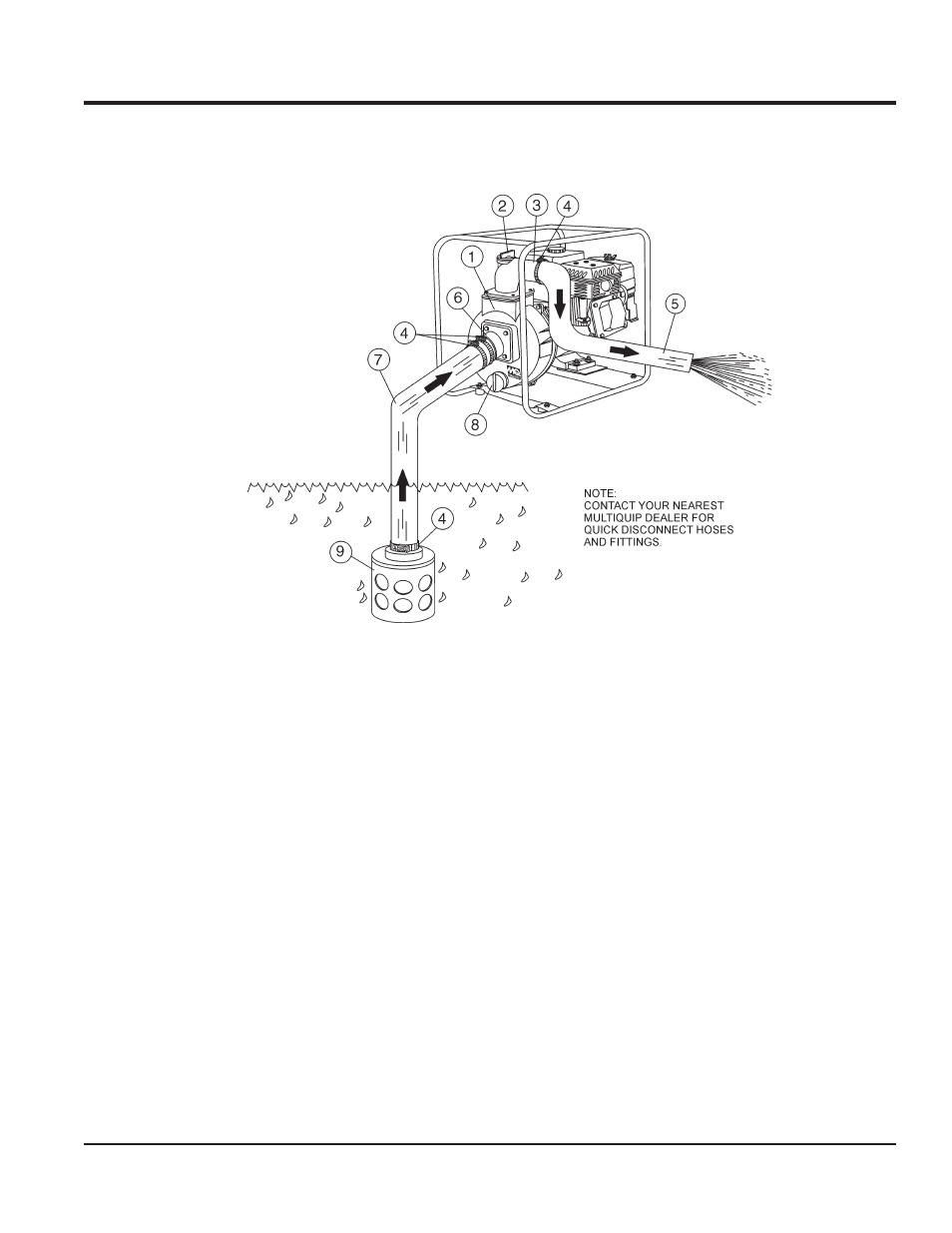

Figure 2 shows a typical application using the QP2E
centrifugal pump. Please note that this pump is intended
for the removal of clean water.
QP2E Pump Application Figure 2.
Pump 1. — A 2-inch centrifugal pump used in general de-
watering applications. Typical dewatering applications
consist of dewatering basements and swimming
pools.
Fill Cap 2. — Prior to operation, the pump casing should
be fi lled with water. Remove this cap to add water to
the pump. After the initial prime, a suffi cient amount of
water will be retained in the casing so that the operator
will not need to re-prime later.
If the casing is dry or has insuffi cient water, the pump
will have difficulty in priming which could lead to
premature mechanical seal wear thus causing damage
to the pump.
Discharge Port 3. — Connect a 2-inch discharge hose
to this port.
Worm Clamp 4. — Used to secure the hose to the inlet
and outlet ports on the pump. Use two clamps to secure
the hose on the inlet side of the pump.
Discharge Hose 5. — Connect this flexible rubber
hose to the discharge port on the pump. Make sure
that the hose lays fl at and is not kinked. Use only
recommended type discharge hose. Contact Multiquip
parts department for ordering information.
Suction Port 6. — Connect a 2-inch inlet hose to this
port. Use two worm clamps to secure the hose.
Suction Hose 7. — Connect this fl exible rubber hose to
the suction port on the pump. Make sure that the hose
lays fl at and is not kinked. Use only recommended type
suction hose. Contact Multiquip Parts Department for
ordering information.
Drain Plug 8. — Remove this plug to drain water from
the pump.
Strainer 9. — Always attach a strainer to bottom side of
the suction hose to prevent large objects and debris
from entering the pump. Strainer should be positioned
so that it will remain completely under water. Running
the pump with the strainer above water for long periods
can damage pump.
