PAGE 18 — MT-62HS — PARTS & OPERATION MANUAL — REV. #2 (12/15/03)
Stopping The Engine
Normal Shutdown
1. Move throttle lever quickly from the FULL OPEN to IDLE
position (Figure 13 ) and run the engine for three minutes at
low speed.
2. The MT-62HS Tamping rammer is designed to run at 3,850
rpm. At optimum rpm the foot hits at the rate of 600~690
impacts per minute. Increasing throttle speed past factory
set rpm does not increase impacts and may damage unit. The
MT-62HS is designed to advance while tamping. For faster
advance, pull back slightly on the handle so that rear of foot
contacts soil first.
Operation
1. To start the rammer tamping action, move the throttle lever
(Figure 12) quickly from IDLE (close) to the FULL OPEN
position. DO NOT move the throttle lever slowly as this may
cause damage to the clutch or spring.

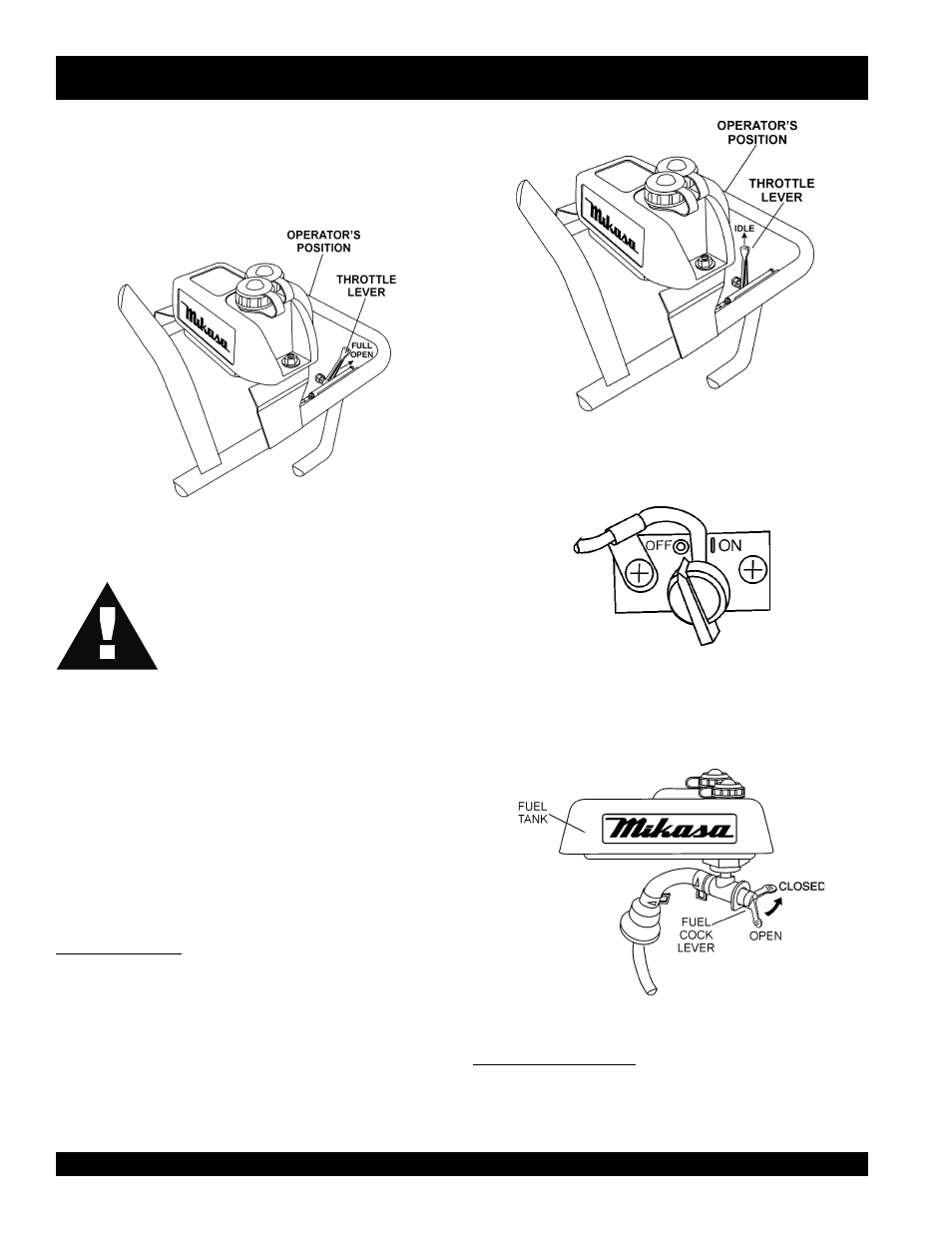

Figure 12. Throttle Lever (Full Open)
MT-62HS — OPERATION
2. After the engine cools , turn the engine ON/OFF switch to the
“OFF” position (Figure 14).
Figure 13. Throttle Lever (Idle)
Emergency Showdown
1. Move the throttle lever quickly to the IDLE position, and turn
the engine ON/OFF switch to the OFF position. Turn the fuel
valve lever to the CLOSED position.
Figure 14. ON/OFF Switch (Off Position)
Figure 15. Fuel Shut-Off Valve
(Closed Position)
CAUTION: CAUTION: CAUTION: CAUTION: CAUTION:
Make sure that the throttle lever is moved to the
FULL OPEN position. Operating the rammer
at less than full speeds can result in damage to
the clutch springs or foot
3. Close the fuel shut- off valve (Figure 15) by moving the fuel
cock lever to the CLOSED position.
