Printer-Driven Interface Manual Rev
.4/30/2010
1
Printer - Driven Interface - User Manual
he MMF Printer-Driven Interface is part of the upgradeable interface series of electronic boards
located behind the cash drawer’s body which enables the unit to be controlled electronically by the
receipt printer.
.
G
G
G
e
e
e
t
t
t
t
t
t
i
i
i
n
n
n
g
g
g
S
S
S
t
t
t
a
a
a
r
r
r
t
t
t
e
e
e
d
d
d
Prepare a location for the cash drawer by selecting a secured, leveled surface that is no
smaller than the cash drawer.
Operating temperature should be controlled at 20° F to 100°F (-7° C to 37°C).
Position the cash drawer and remove any packing tape or guards from the tray.
Connections
The printer-driven Interface has been designed to be used with a variety of POS
printers by connecting printer specific cables.

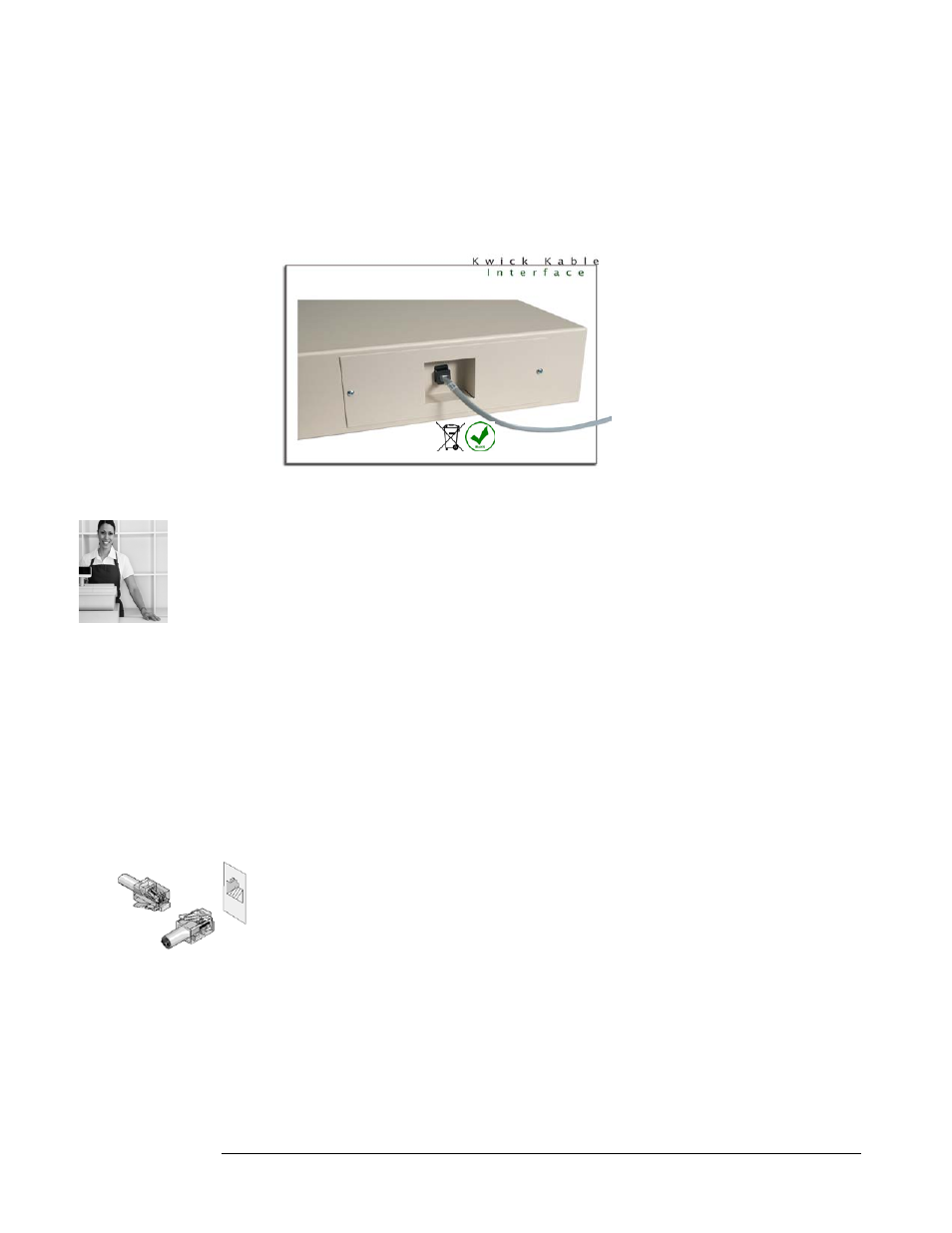

Connect one side of the corresponding printer-specific MMF RJ-12 Cable to the
interface connection located under the cash drawer. The end of the cable that has a
label with the MMF cable part number will plug into the Cash Drawer and the end
that has a label that reads:
“Connect to Printer” would plug into the receipt
printer.
Follow the set-up instructions and set proper open codes from the printer manufacturer
manual to properly connect the cash drawer to the receipt printer.
T
Warning!
Make all electrical
connections to the cash
drawer with the
computer’s power
turned off.
