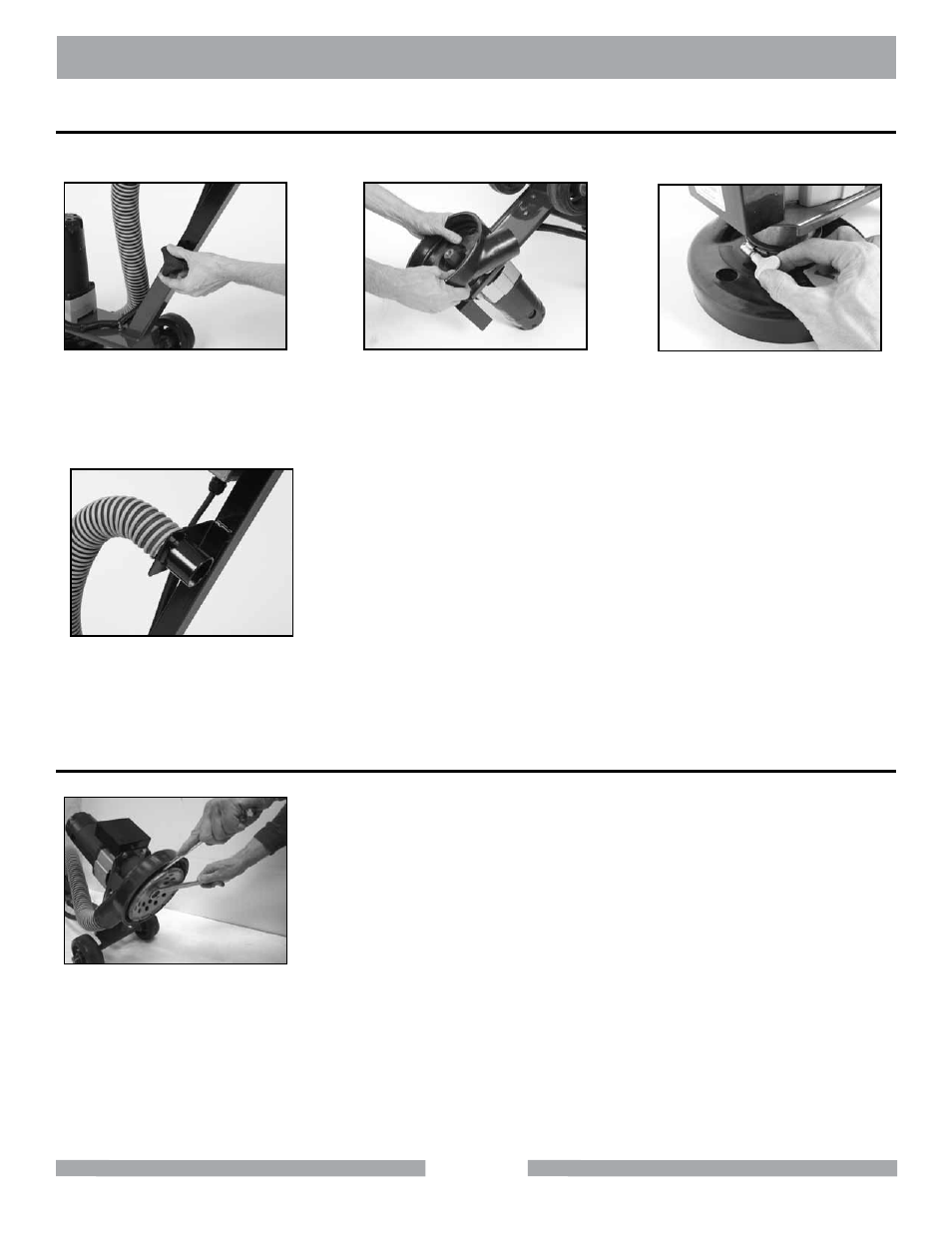

MK-SDG-7 ASSEMBLY
Place the handle bar
assembly into the base and
screw the tri-knob in to hold
it in place
Attach the vacuum hose to
the shroud and
vacuum outlet port
Tighten clamp with wing nut
so it is firmly attached
Place shroud on flange
Use a 15/16 wrench on the cup wheel bolt, and a 1” wrench on the
hex shaft. Place the 1” wrench between the cup wheel and the dust
shroud, as shown, until the wrench (open end) goes over the hex
shaft. Hold the shaft in place and use the 15/16 wrench to break
the bolt free. Once it is broken free you can turn the bolt by hand
until it comes off with the cup wheel. Replace with new cup wheel
and tighten bolt. Use wrenches to make sure the bolt is tight, before
grinding.
ASSEMBLY
INSTALLING/REPLACING CUP WHEEL
