26

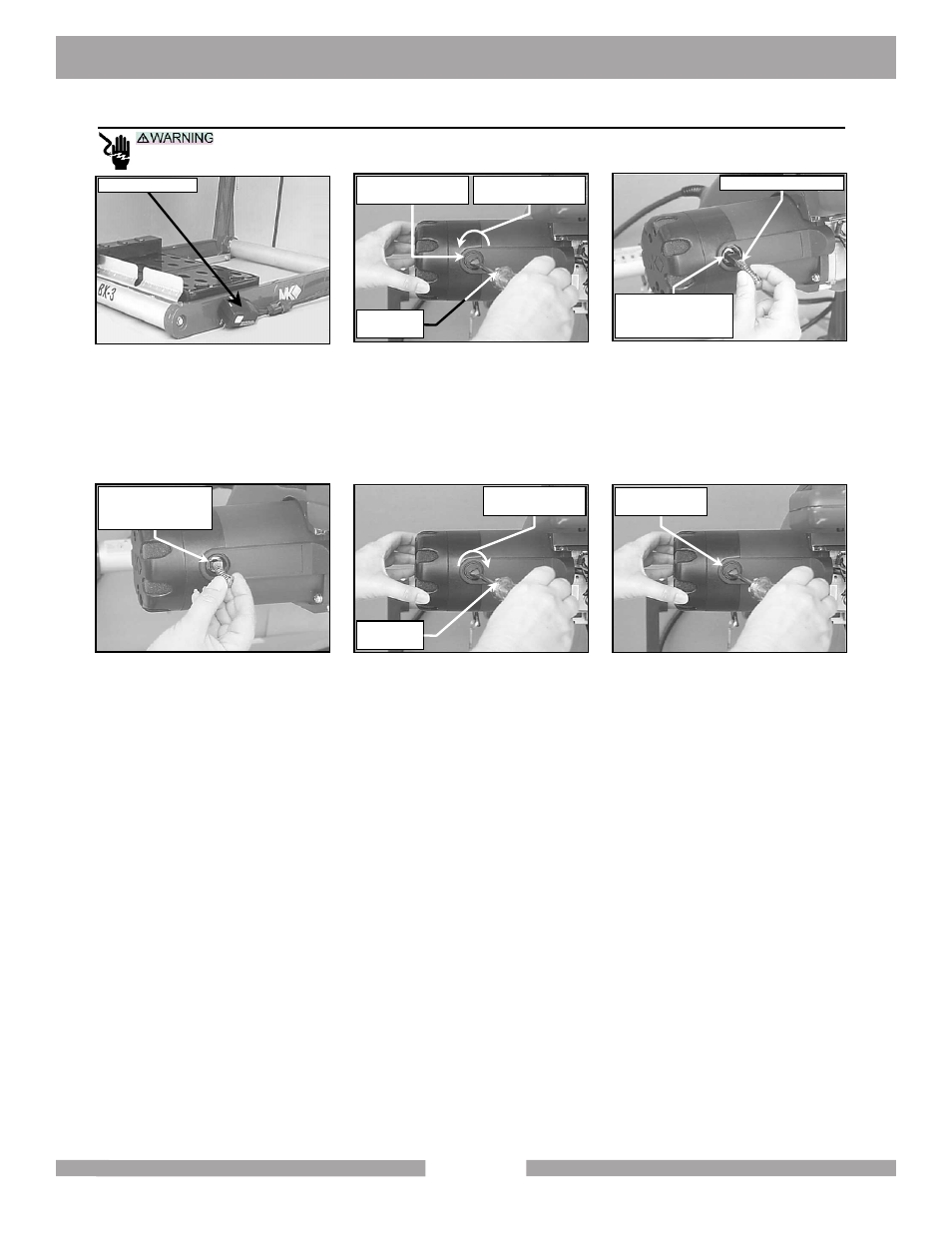

7. Motor Brush Change-out:
Disconnect the tool before servicing and when changing accessories, such as blades, bits,
cutters, and the like.
NOTE: When installing motor brushes, care must be taken to ensure the spring end is straight before
installing the Motor Brush Cap.
(A)
Disconnect the BX-3
(B)
Locate and Remove One
Motor Brush Cap
(C)
Remove Motor Brush and
Clean Brush Housing
(E)
Install Motor Brush Cap
(D)
Align and Install
New Motor Brush
(F)
Install the Second Motor Brush
(Repeat Steps B to E)
Disconnect BX-3 One Cap on
Either Side of Motor
Rotate Screw Driver
Counter-clockwise
Phillips
Screwdriver
Remove Motor Brush
Clean Brush Housing
of Carbon All Carbon
Dust and Fragments
Align Motor Brush
with Brush Housing
and Install the Brush
Rotate Screw
Driver Clockwise
Phillips
Screwdriver
Replace Second
Motor Brush
BX-3 MAINTENANCE
