23

BX-3 MAINTENANCE

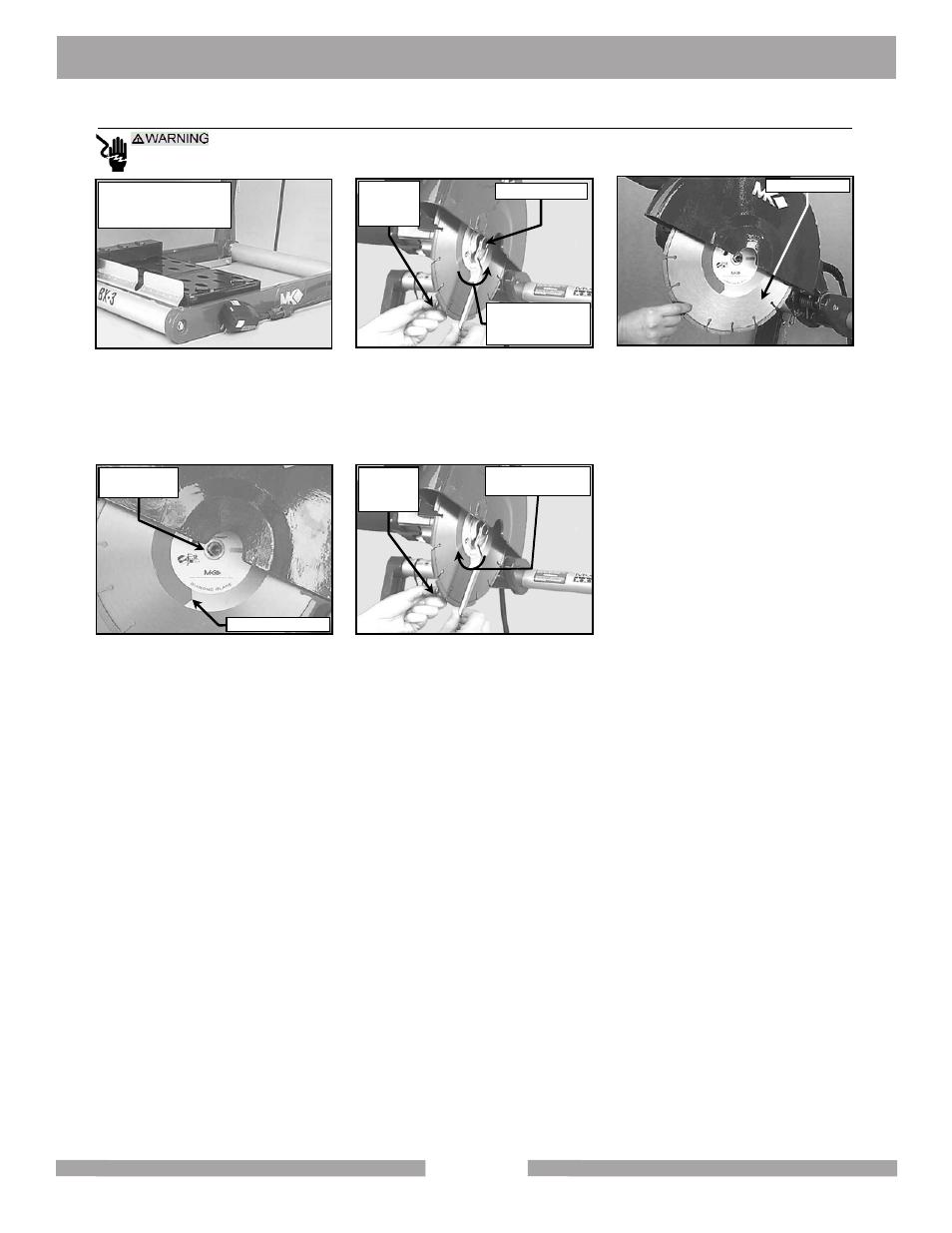

4. Diamond Blade Change-out:

Disconnect the tool before servicing and when changing accessories, such as blades, bits,

cutters, and the like.

NOTE: When installing the Retaining Screw, do not “cross-thread" and DO NOT over tighten the screw.

(A)

Setup BX-3 for Operation

(B)

Remove Retaining Screw

and Outer Flange

(C)

Remove Blade from

Motor Shaft

(E)

Install Outer Flange and

Retaining Screw – Tighten

(D)

Install Blade Under Blade Guard

and Onto Motor Shaft

Rotate Blade

Wrench Clockwise

Retaining Screw

Hold Shaft

Wrench

Stationary

Seat Blade on

Inner Flange

Rotation Direction

Hold Shaft

Wrench

Stationary

Rotate Blade

Wrench

Counter-clockwise

Set up for Operation

(See Setup, Adjustment

and Operation)

Remove Blade
