24

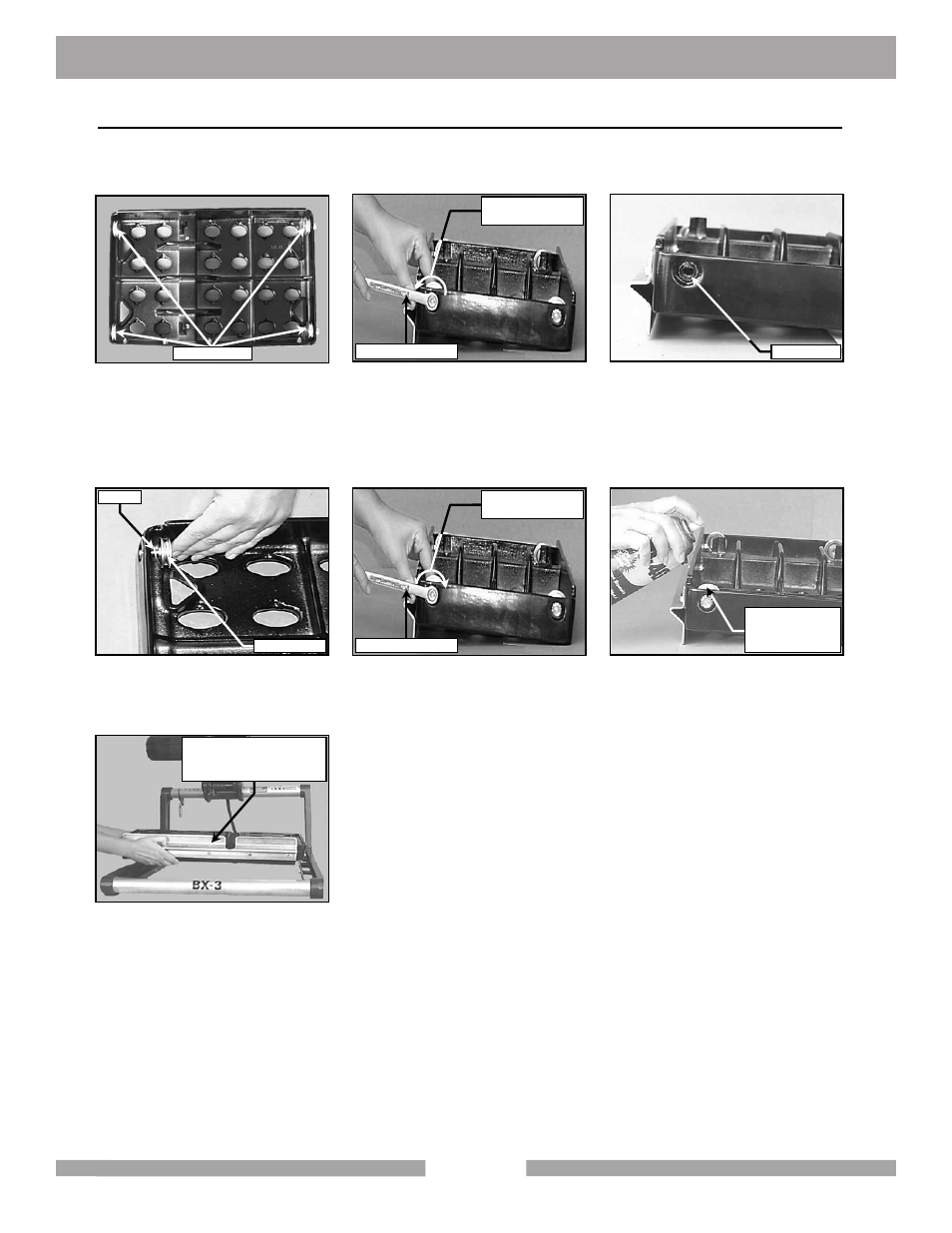

5. Movable Cutting Table Wheel Change Out:
NOTE: All four (4) Movable Cutting Table, Roller Wheels should be replaced at the same time (MK Diamond
Part No. – 133090).
NOTE: When installing the Retaining Bolt, do not “cross-thread" and DO NOT over tighten the Nut.
(A)
Place Movable Cutting
Table On Work Bench
with Roller Wheels Up
(B)
Remove Roller Wheels
(C)
Prepare for Installation
Of New Roller Wheels
(E)
Install Roller Wheel
Retaining Nut – Tighten
(D)
Install Wheel/Washer Assembly
Into Movable Cutting Table
(F)
Lubricate Roller Wheels
1/2-Inch Wrench Roller Wheels
Rotate Wrench
Counter-clockwise
Roller Wheel 1/2-Inch Wrench
Rotate Wrench
Counter-clockwise
Lubricate with
Light Oil (WD-40,
3 in 1, etc)
(G)
Install Movable Cutting Table
Install Movable Cutting
Table (See Setup,
Adjustment and Operation
Clean Holes
Washer
BX-3 MAINTENANCE
