aSSeMBlY:
Follow the assembly instructions to prepare your MK-145 for operation.
Blade Guard Installation:
Diamond Blade Installation:
NOTe: Do not cross-thread the Retaining Nut during installation.

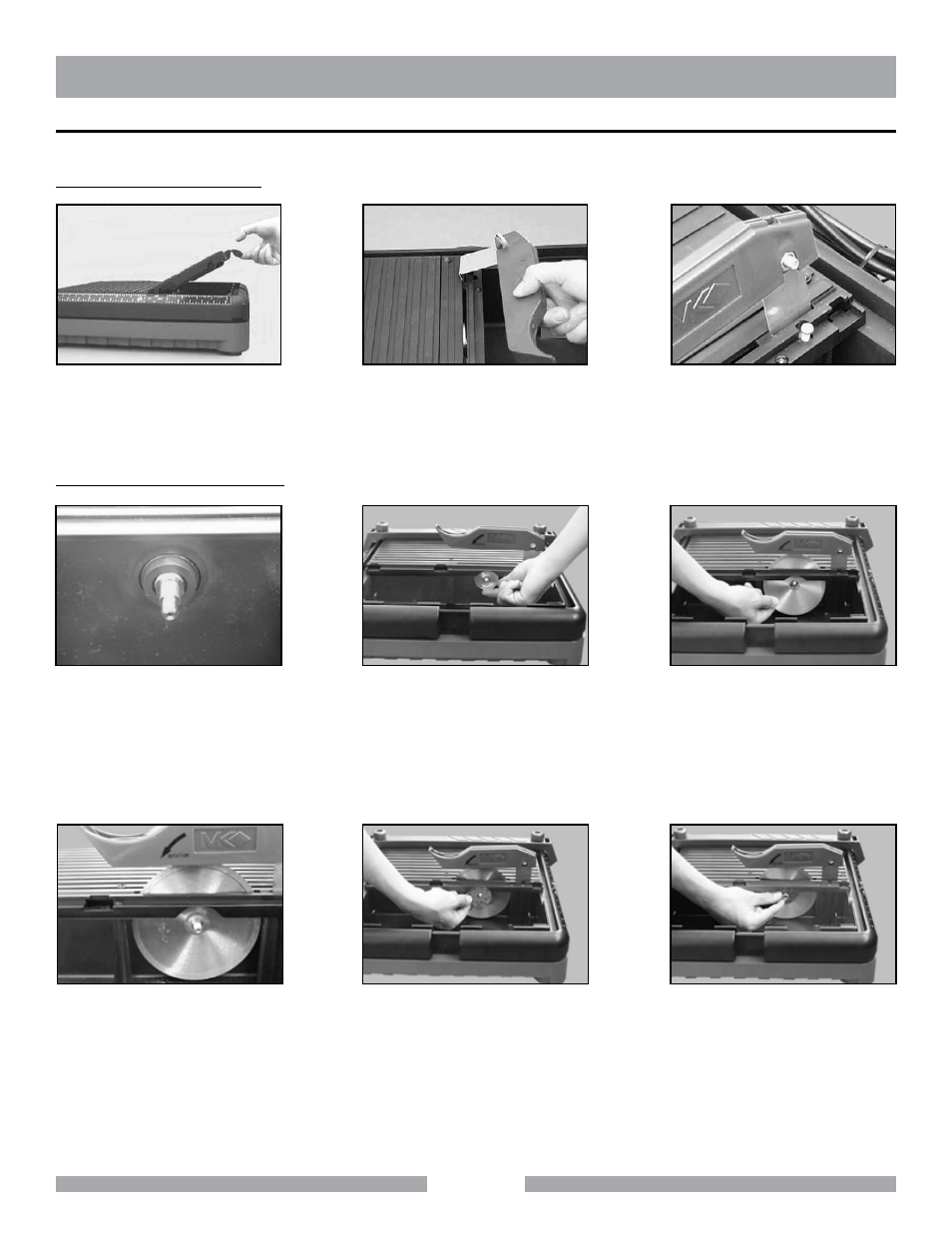

MK-145 ASSEMBLY
(A)
Lift Water Basin Cover and pull
out the Water Basing Cover
(B)
Insert Blade Guard into the
small Slot of Cutting Table
(C)
Rotate Blade Guard Upright
and insert Blade Guard
Retaining Screw
(A)
Locate the flat sides of the
Gear Shaft
(B)
Install the Metal Inner
Flange onto the Gear
Shaft and rotate until it is
seated on the flat sides of
the Gear Shaft
(C)
Orient the Blade with the
Directional Arrow facing
out and install the Blade
through the Table Blade
Slot from below
(D)
Verify the Blade is seated
on the Gear Shaft and the
Directional Arrow matches
the Directional Arrow on
the Blade Guard
(E)
Install the Plastic Outer
Flange onto the Gear Shaft
(F)
Install the Retaining Nut
onto the Gear Shaft –
DO NOT CROSS-
THReaD THe NUT
