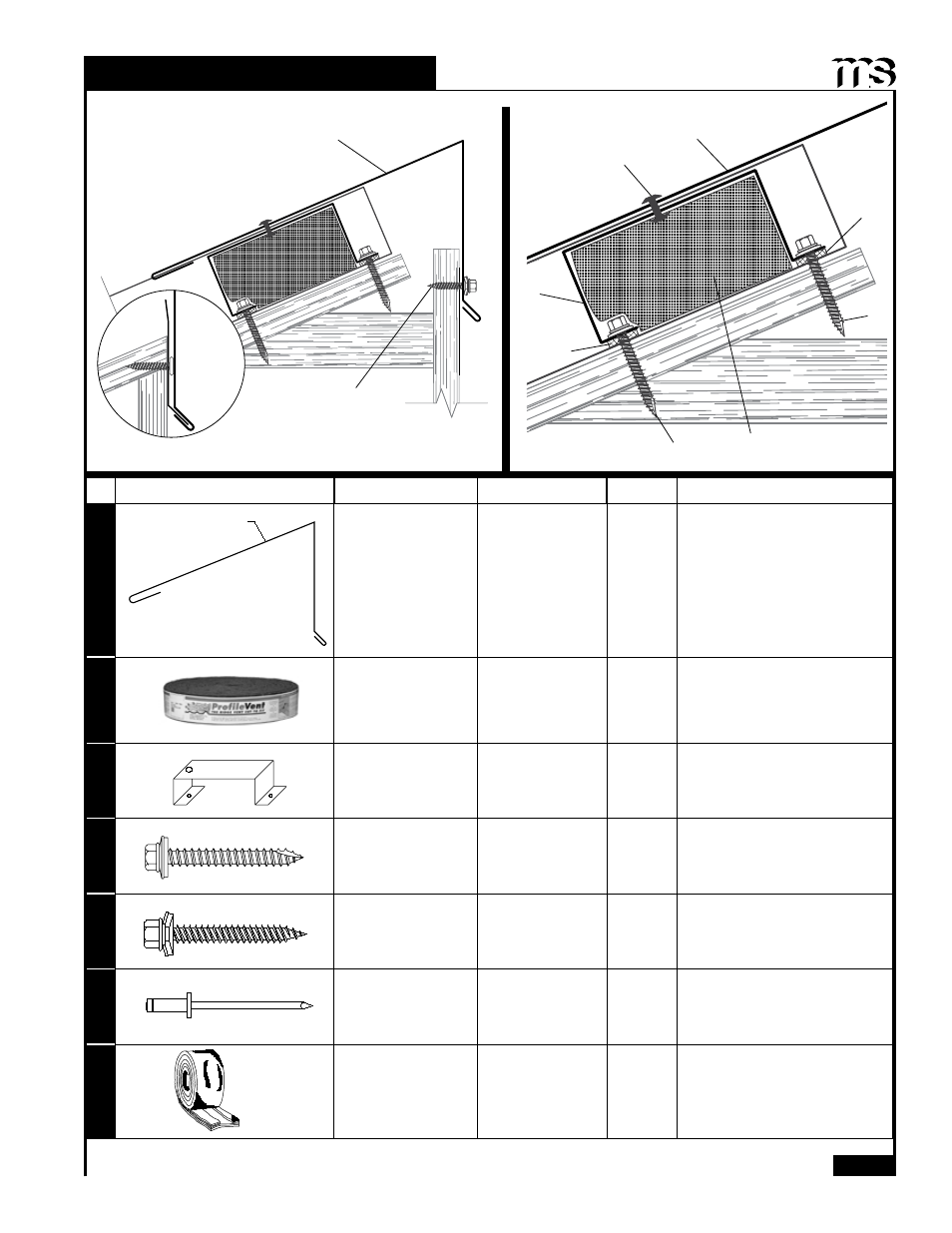

RESIDENTIAL PRODUCT GUIDE
Part Description Product No. Length Installation Information
1
Residential
Peak
50134XX
26 Gauge
10'-2"
 Peak flashing face can be
attached directly to substrate
or hooked on optional
Residential Cleat.
2
Profile
Vent
Notched 12"
6441799
Notched 16"
6441899
100'
 Lay over panel ribs between
Peak Flashing and panel.
3
Image II
Profile Vent Clip
6540000 3-1/8"
 Place over Profile Vent and
fasten with two 1-1/2"
Metalwood screws.

Install 2 clips per panel.
4
#14-1-1/2"
Metalwood Screw
8215100 1-1/2"
 2 per Profile Vent Clip.
 Fasten through Double Bead
Tape Sealant on the low side.
5
#10-14 x 1-1/2"
Wood Screw
82103XX 1-1/2"
 1 per lineal foot of condition.
 *Optional Pancake Head
Wood Screw can be used with
Residential Cleat.
6
1/8" x 3/16"
Pop Rivet
82409XX
 Fasten Pop Rivet through the
Peak into the Profile Vent Clip.

*Optional install Stitch Screw.
7
Double Bead
Tape Sealant
6403899 25'
 Double Bead Tape Sealant
required at the low side and high
side of each Profile Vent Clip.
C
u
v
w
x
u
Image II Vented Peak
y
RESIDENTIAL CLEAT
OPTIONAL INSTALLATION
z
{
x
{
