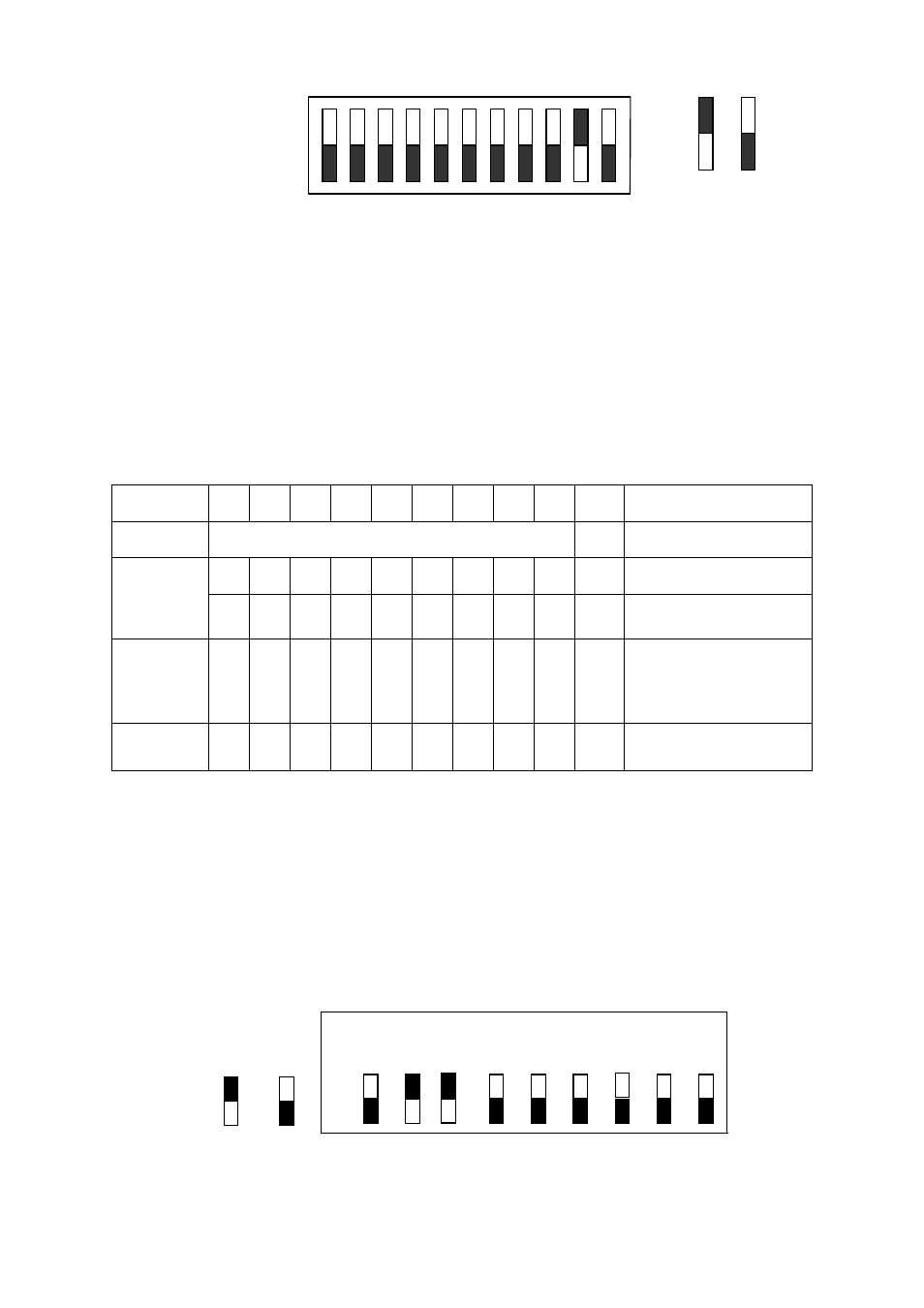

Dipswitch instruction
As above figure of dipswitch showed, 1 is “on”and other is “OFF”. “#1”～“#10”stand
for “dipswitch1” ～“dipswitch10”. “1”means “on”and “0”means “off”and “*”means “on”or
“off” is ok( there is no function for dipswitch). X means it can set to 1 or 0 according to
designing needs.
Brief function chart
Mode #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 Description
DMX Set DMX address 0 Enter DMX mode
S0 S0 S0 S0 S0 S0 S0 0 0 1 Strobe
Auto
S0 S0 S0 S0 S0 S0 S0 1 1 1 Gradation
Manual C C C C S1 S1 S1 1 0 1
“ S1”select speed of
strobe
“ C”select color
brightness
Sound * * * * * * M 0 1 1
“ M=0”mode 1
“ M=1”mode 2
NOTE！Important
1. Sound:
① no FADE；②run to sound；
2. Connect DMX controller with the fixture through 3-pin XLR signal cord。
3. In master/slave mode, one of them was set to Auto mode or sound mode and others
was set to submachine, so fixtures can run at same time.
4. DMX address settings :
On Off
1 2 3 4 5 6 7 8 9
Switch #1 =0;Switch #2 =2;Switch #3 =4;Switch #4 = 0; Switch #5 =0;Switch #6 = 0;Switch
#7 = 0;Switch #8 = 0; Switch #9 = 0;so value for address:0+2+4+0+0+0+0+0+0 = 6, so
address is 6.
1 2 4 8 16 32 64 128
256
