Mayline Dual Starter User Manual
Page 4
4.

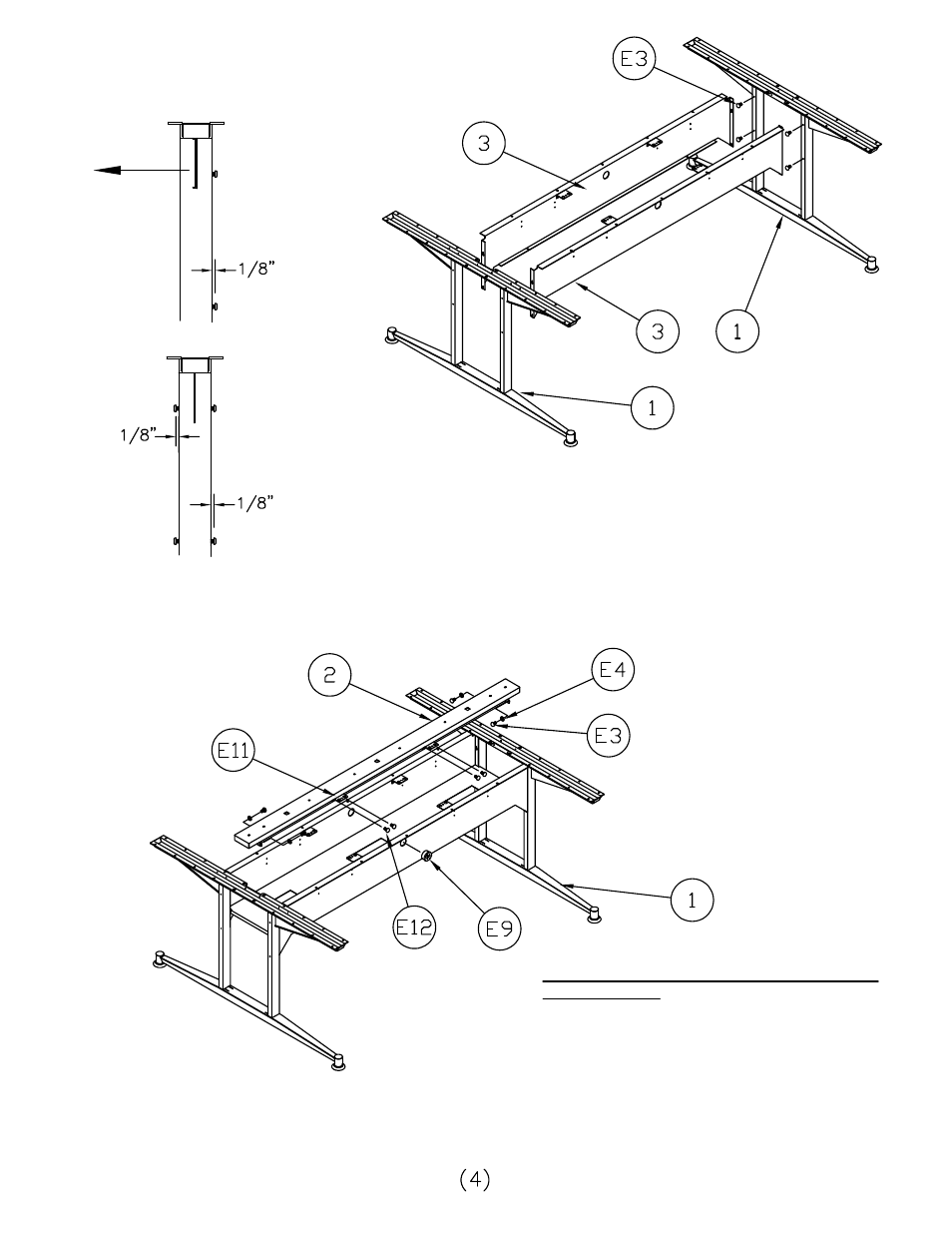

Install screws (E3) to the inside of leg (the side opposite gusset
flange), leaving approximately 1/8" between screw head and leg tube.
5.
Using slots in trough sides (3), hook trough sides onto screw
heads on both legs. DO NOT TIGHTEN SCREWS.
NOTE: If installing a table without access panels (6),
proceed to Step 7.
6.
Attach mounting angles (E11) to beam assembly
(2) using screws (E12).
7.
Install beam assembly (2) from above. Place
beam (2) between legs (1) by tipping the beam into the
leg flange notch. Secure beam (2) with screws (E3) and
washers (E4).
8.
Insert bushing (E8) into trough side (3).
9.
Tighten all screws (E3) at this time.
GUSSET FLANGE
(Starter leg only)
OR ADDER LEG,
IF REQUIRED
ADDER LEG
IF REQUIRED
