ADJUSTMENTS:
This Base was designed to accommodate various top sizes:
NOTE: USE EXTREME CAUTION WHEN RELEASING OR
CHARGING THE SPRINGS
* If work surface lifts hard or to quickly, the tension cubes may be
adjusted per step 5 to increase or decrease 'LIFT' assist.
* If work surface tilts hard or tilts to fast, the tension cubes may be
repositioned per step 6 to increase or decrease 'TILT' assist.
* If work surface will not stay in position after placing tilt rod control in
LOCK position it may be necessary to increase tension on Brake
Leaves.
A). Release Tilt Control Rod and position work surface in vertical
position - do not lock Control Rod. Have second person hold work
surface and the Tilt Control Rod in this position. On the opposite
end of this pivot tube, turn Adjustment Nut 1/4 turn clockwise.
B). Position work surface at desired location and lock Tilt Control
Rod. If work surface does no stay in position, repeat above.
DO NOT OVER TIGHTEN damage to leaf springs and pivot tube
may occur. Tilt Control Rod may no engage or stay engaged in
locked position if overtightened.
(3)

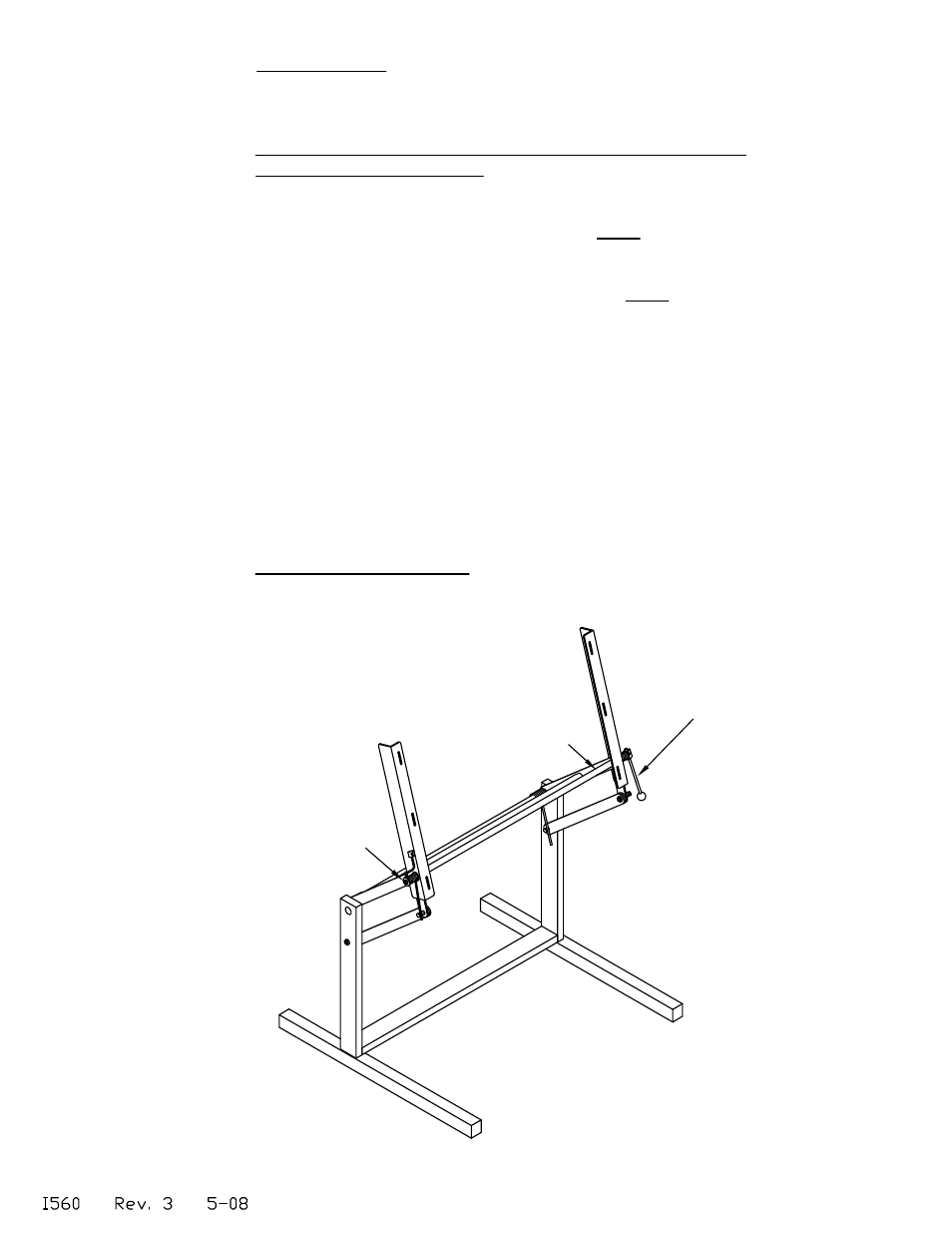

Shown with work
surface removed for
clarity only.
Adjustment Nut
Tilt Control Rod
Pivot Tube
