Mayline Dual Adjustment Drafting Table - Manual (Page 2)

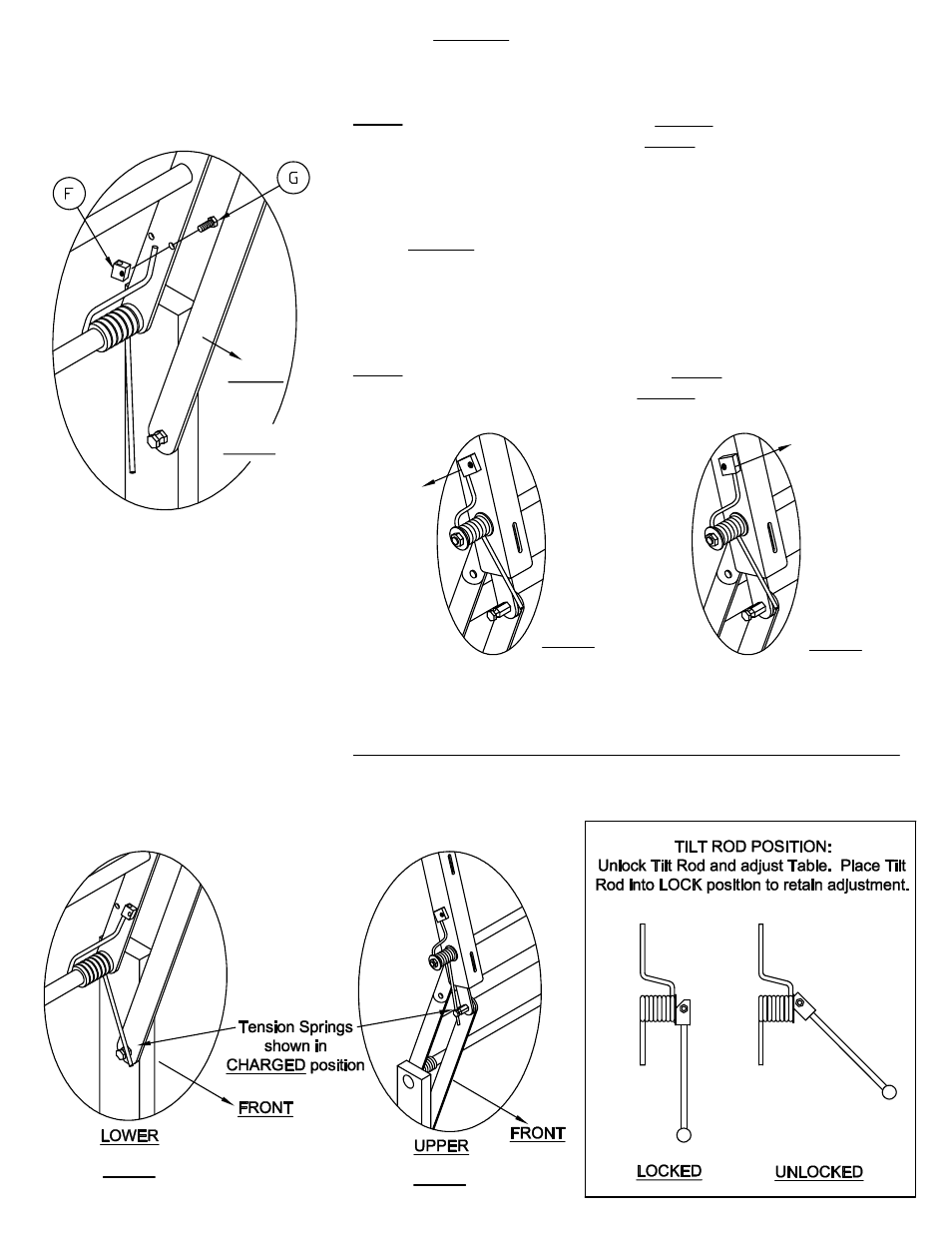

5. For the BOTTOM Height Assist tension springs, slide a Tension
Cube (F) over the short end of the Tension Spring. Align the tension
cube mounting hole with either hole in the support bracket.
NOTE: Use "FRONT" bracket hole for MORE assist
Use "REAR" bracket hole for LESS assist
Place the tension cube in the same position on both sides. Attach
with Hex Head Screw (G). Fig. 2
6. The UPPER Tilt Assist tension springs have tension cubes
installed on the Board Brackets for shipment. Assist for top control is
adjustable by position tension "UP" or "DOWN" as shown. Tension
Cube must be in same position on both sides. Tighten hardware for
both sides.
NOTE: Place Tension Cube "DOWN" for LESS assist. Fig. 3
Place Tension Cube "UP" for MORE assist. Fig. 4
FRONT
7. Charge Bottom and upper tension springs by placing Spanner Tube
(J) over the spring end and pulling the spring leg to its seat. Fig. 5 & 6
NOTE: USE EXTREME CAUTION WHEN CHARGING THE SPRING.
8. Attach the top to the board brackets using bolts supplied with Top.
Tension Cube
"DOWN"
Tension Cube
"UP"
Fig. 2
(2)
Fig. 3 Fig. 4
Fig. 5
Fig. 6
