Troubleshooting and fault elimination
Display of operating data, diagnostics
4
l
32
EDKVS93−03 EN 3.0
4
Troubleshooting and fault elimination
4.1
Display of operating data, diagnostics
The dialog box displays important operating parameters and supports you in diagnosing
the drive controller.
ƒ
Open the Diagnostics dialog box in the parameter menu.
9300std230

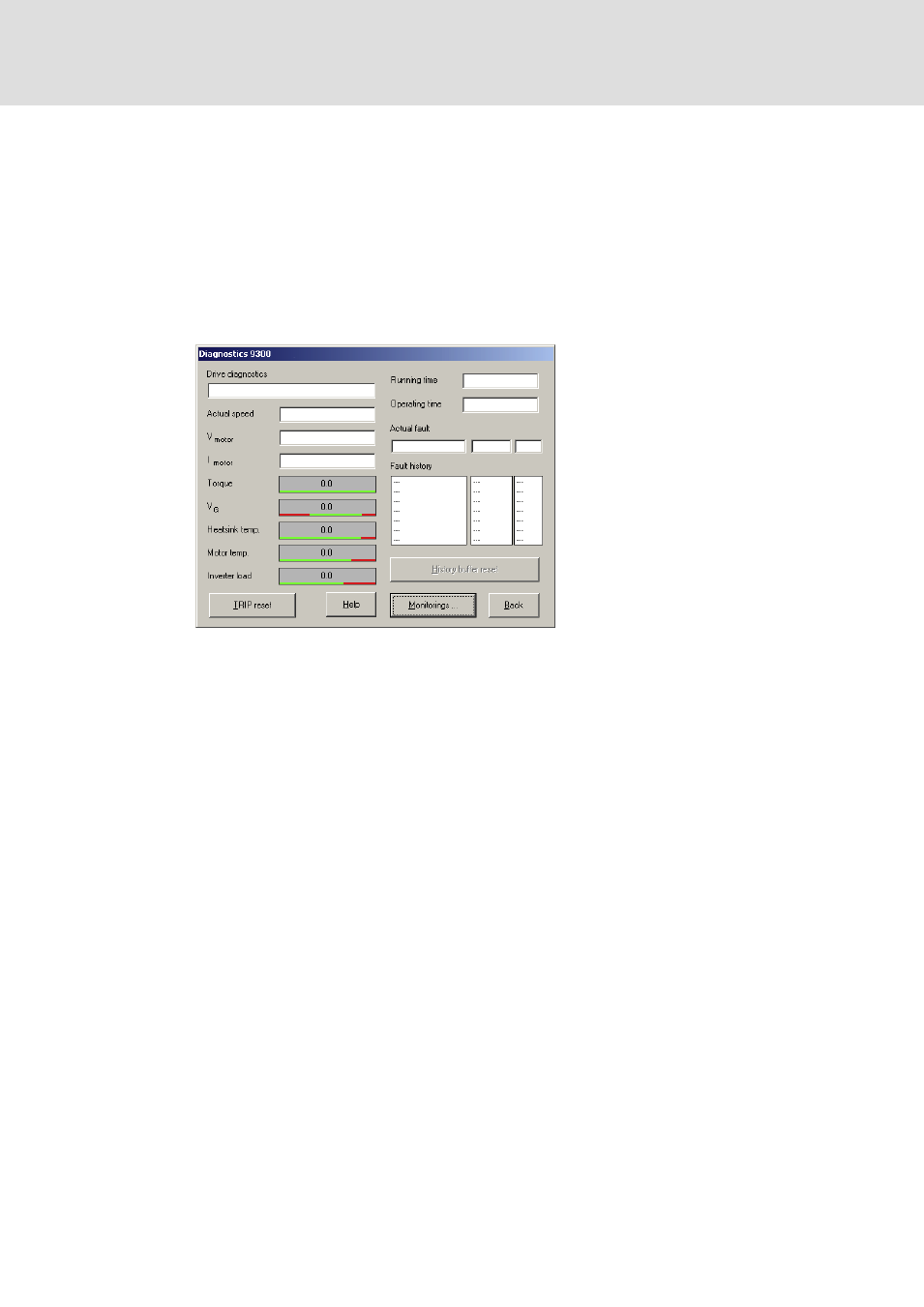

Fig. 4−1
"Diagnostics" dialog box
ƒ
You can recognise immediately that a fault has occurred from the display elements
or status information.
ƒ
An error can be analysed with
– the history buffer in Global Drive Control (GDC) (
¶ 34) or
– the XT keypad
– and with the "General error messages" table in the "System error messages"
chapter.
ƒ
The "General error messages" table provides tips on how to eliminate an error.
