Electrical installation
EtherCAT connection
6
EDK2192IB DE / EN / FR 2.0
41
l
H2_EtherCATAnschluss−farbcodierung
Colour code of Ethernet cable
)
Note!
Wiring and colour code are standardised in EIA/TIA 568A/568B.
You can use 4−pin Ethernet cables in accordance with the industrial standard.
The cable type only connects the assigned pins 1, 2, 3 and 6 with each other.
E94YCEI004A

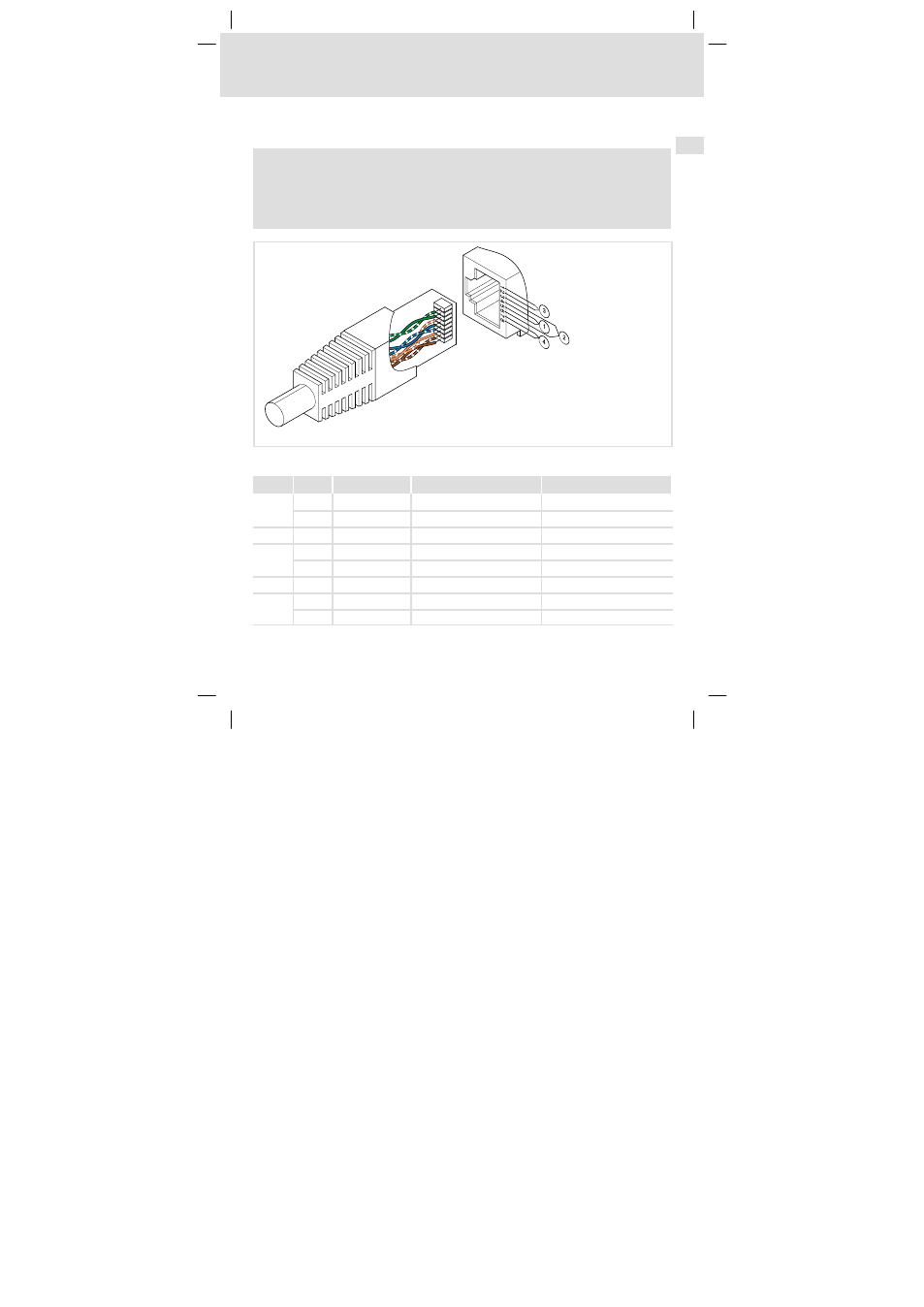

Fig. 2 Ethernet plug in accordance with EIA/TIA 568A/568B
Pair Pin Signal EIA/TIA 568A EIA/TIA 568B
3
1 Tx + White/green White/orange
2 Tx − Green Orange
2 3 Rx + White/orange White/green
1
4 Not assigned Blue Blue
5 Not assigned White/blue Blue/white
2 6 Rx − Orange Green
4
7 Not assigned White/brown White/brown
8 Not assigned Brown Brown
