6 Electrical installation
Connection data
EDK94AZHX DE/EN/FR/ES/IT 3.0
32
l
H1_E_INST−Verdr_2_BL_EN
Connection data

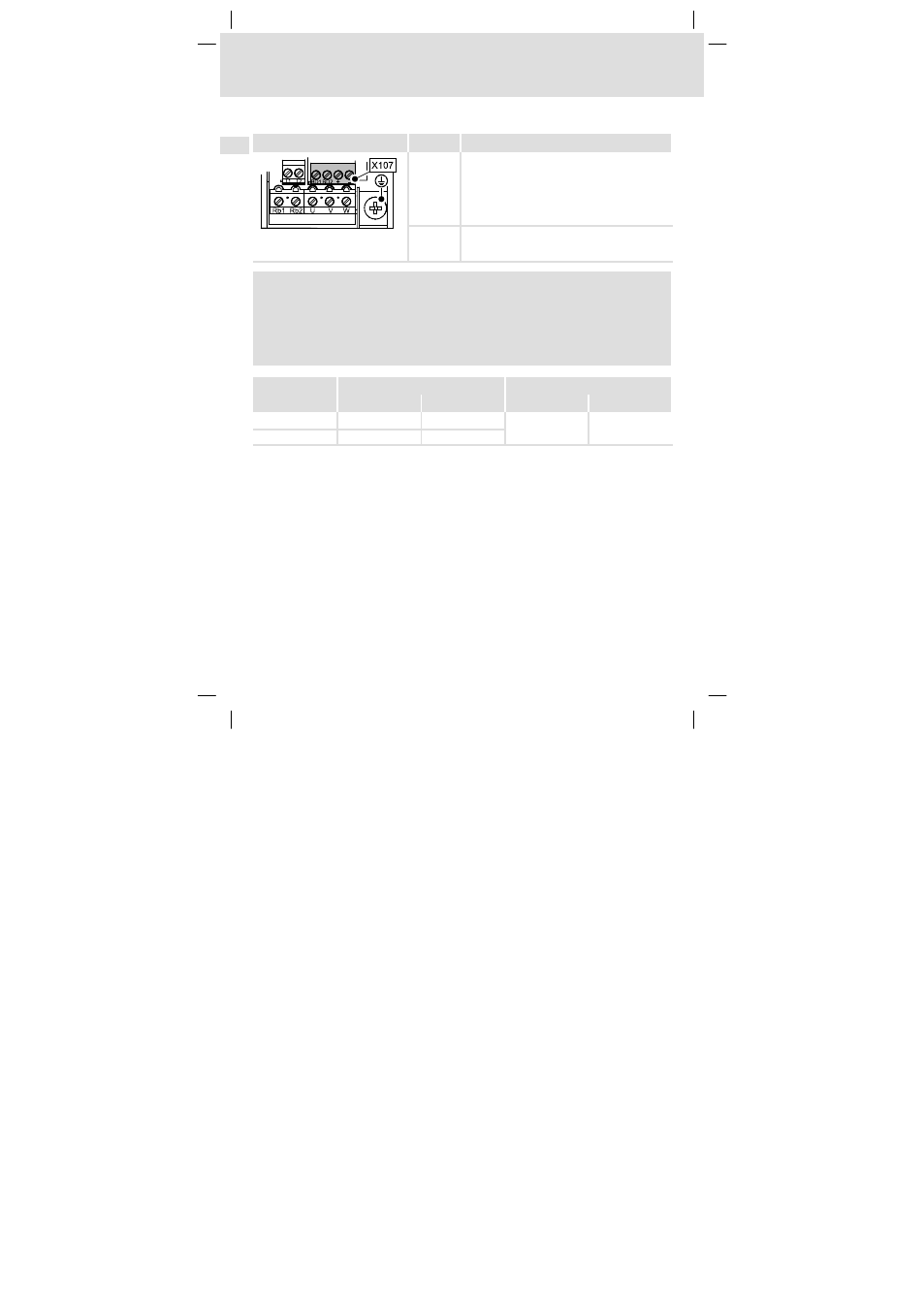

Terminal X107 Labelling Description
Connection of the motor holding brake
BD1
BD2 + (Lenze: WH)
− (Lenze: BN)
E94AZHX0051: 24 V DC, max. 2.5 A
Observe correct polarity!
+ / − Supply voltage for the motor holding brake
(18 ... 30 V DC)
Observe correct polarity!
SSP940X107
)
Note!
The supply terminals (+/−) are protected against polarity reversal.
The supply status can be reported to the basic device via the error channel.
Further information can be obtained from the documentation of the basic
device.
Terminal data Conductor cross−section Tightening torque
[mm 2 ] [AWG] [Nm] [lb−in]
Single core 0.25 ... 2.5 24 ... 12
0.5 ... 0.6 4.4 ... 5.3
2 conductors 1) 0.25 ... 1.5 24 ... 16
1) Two conductors of the same cross−section with a twin wire end ferrule
