*If knob does not pop up when
released, stop and immediately call
your service technician or gas supplier.
* If the pilot will not stay lit after
several tries, turn the gas control knob
to the “OFF” position and call your
service technician or gas supplier.
NOTE: If pilot goes out, repeat steps 4
through 8. Wait (5) five minutes before
attempting to light pilot again.
9. Turn control knob counterclock-
w i s e to “ON” position.
10. If using unit without wall
thermostat place “AUTO/OFF/
MANUAL” switch into the
manual position. If using wall
thermostat place “AUTO/OFF/
MANUAL” switch into the auto
position and place thermostat to a
setting higher than the room
temperature.
11. Turn all electrical power on to the
appliance (if applies).
12. Your heater is equipped with a
“HI/LO” control. Turn clockwise
for Low and counterclockwise for
High.
TO TURN OFF
GAS TO APPLIANCE
SHUTTING OFF UNIT
1. Turn control knob clockwise
to the “OFF” position.
2. Turn off all electric power to the
appliance if service is to be performed.
SHUTTING OFF BURNER ONLY
(Pilot stays lit.)
1. Turn control knob clockwise
to the “PILOT” position.
CAUTION
Hot while in operation. Do Not Touch.
Keep children, clothing, furniture,
gasoline, and other liquids having
flammable vapors away.
CAUTION
DO NOT TRY TO ADJUST
HEATING LEVELS BY USING THE
MANUAL SHUTOFF VALVE.
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE
LIGHTING
WARNING: If you do not follow
these instructions exactly, a fire
or explosion may result causing
property damage, personal injury
or loss of life.
A. This appliance has a pilot which
must be lit by hand. When lighting
the pilot, follow these instructions
exactly. If piezo fails, then light
the pilot using matches. Refer to
Manual Lighting Procedures.
B. BEFORE OPERATING smell all
around the appliance area for gas.
Be sure to smell next to the floor
because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any
appliance.
• Do not touch any electric
switch; do not use any phone
in your building.
• Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas
supplier, call the fire
department.
C. Use only your hand to push in or
turn the gas control knob. Never
use tools. If the knob will not push
in or turn by hand, don’t try to
repair it, call a qualified service
technician or gas supplier. Force or
attempted repair may result in a
fire or explosion.
D. Do not use this appliance if any
part has been under water.
Immediately call a qualified
service technician to inspect the
appliance and to replace any part
of the control system and any gas
control which has been under
water.
FLAME ADJUSTMENT KNOB
CONTROL KNOB
IGNITOR BUTTON
SELECTOR
SWITCH

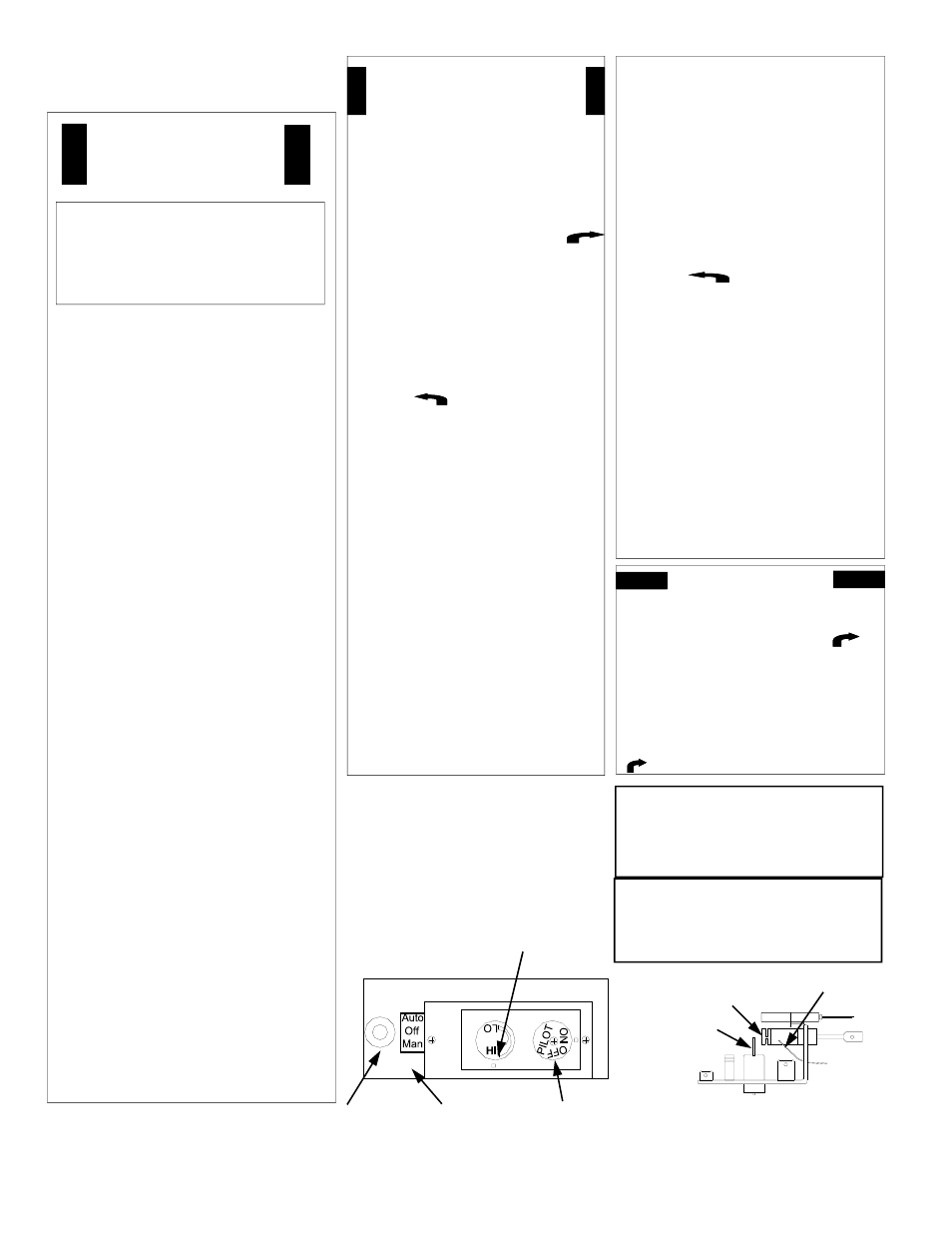

FIGURE 21 - CONTROL KNOB AND IGNITOR BUTTON
LOCATION
FIGURE 22 - O.D.S PILOT
ASSEMBLY SHOWN AS L.P.
GAS.
IGNITOR ELECTRODE
PILOT BURNER
THERMOCOUPLE
LIGHTING INSTRUCTIONS
SIT-MILLIVOLT VALVE
1. STOP! Read Safety Information.
2. Make sure manual shutoff valve is
fully open. Set thermostat to low-
est setting.
3. Turn off all electrical power to the
appliance (if applies).
4. Turn control knob clockwise
to the “OFF” position.
5. Wait (5) five minutes to clear out
any gas. Then smell for gas, in-
cluding near the floor. If you smell
gas, STOP and follow “B” in the
safety information! If you don’t
smell gas, go to the next step.
6. Turn control knob counterclock-
wise to the “PILOT” posi-
tion. Press in control knob for (15)
fifteen seconds.
NOTE: You may be running this
heater for the first time after hooking
up the gas supply. If so, the control
knob may need to be pressed in for (30)
thirty seconds. This will allow air to
bleed from the gas system.
7. With control knob pressed in, push
down and release ignitor button.
This will light the pilot. If needed,
keep repeating this step until pilot
lights. Pilot is located between
middle and rear logs. If pilot does
not light with piezo, light by hand
with a match.
8. Keep control knob pressed in for
(1) one minute after lighting pilot.
After (1) one minute, release con-
trol knob.
*Please refer to page 25 for location
and picture of pilot.
