POSITIONING OF LOGS

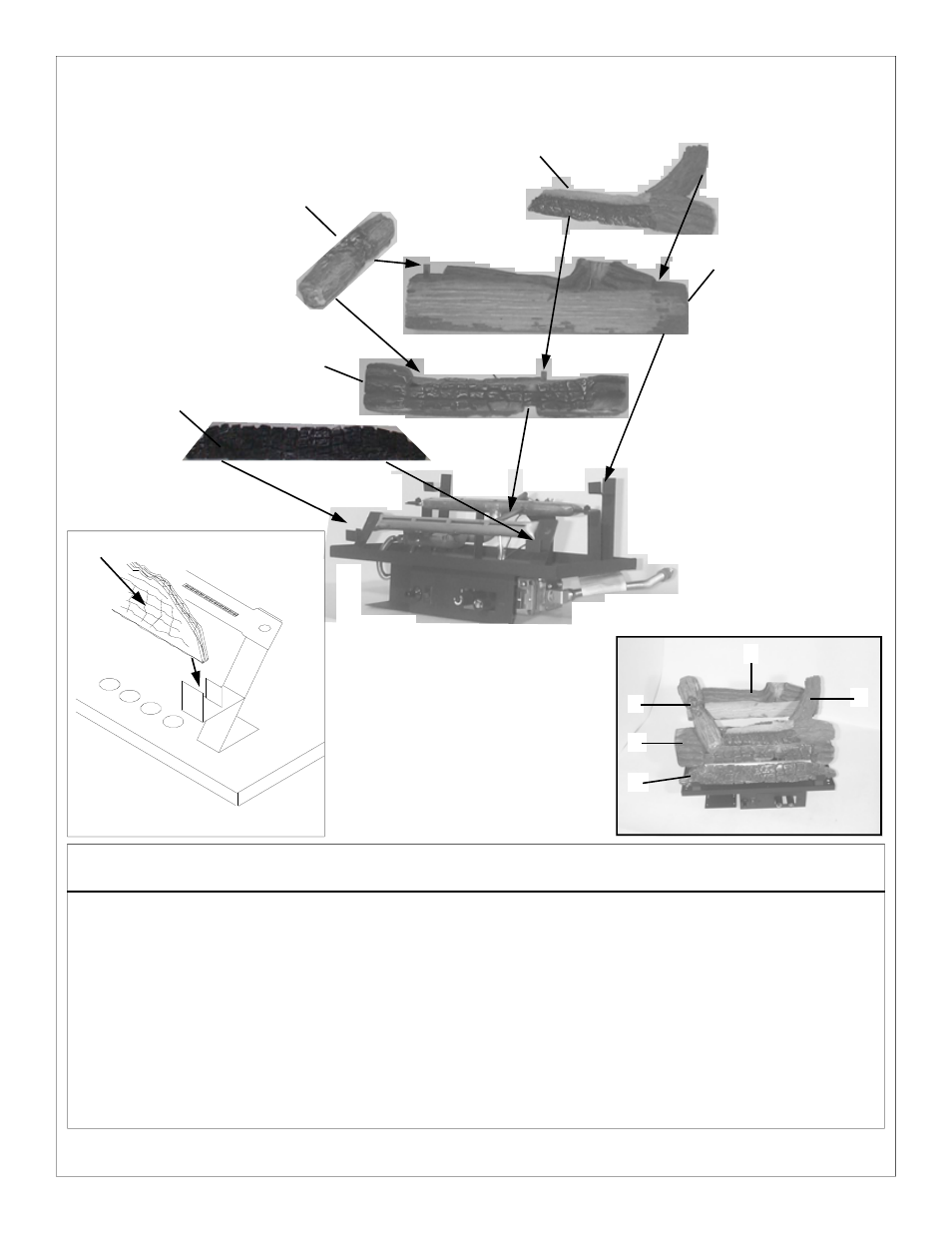

WARNING: POSITIONING LOGS IS VERY CRITICAL (SEE FIGURE 13).
LOG PLACEMENT FOR LOG SET
1) Place rear log (flat faced) #1 on rear log support. The log has alignment notches on each corner.
2) Place ember strip (wrapped in cardboard box ) #2 on front log supports. Center from side to side.
3) Next place middle log (with ember burn out) #3 over front burner tube. The two ends are notched out on bottom to ensure
proper fitting over ends of burner.
4) Right top log is a “y” shaped log #4. The round stem lays in the notched out space on the right corner of rear log. There is a
pin on the middle log, and a hole on the flattened end of the top left log. Place hole over pin.
5) Place one end of the left top log #5 in notch of left corner on rear log and the other end of the left top log in notch on top
middle log.
NOTE: When operated for the first time, the logs may emit a “paper burning” smell. This smell will gradually diminish and
will be totally eliminated after the first few hours of operation.
