VHD BASS ARM (KVV 987 307):

The

VHD BASS ARM is a flat steel bar with straight ends, a double groove joint at the lower end and

prefixed apertures to accept both

D6 & D12.6 QUICK RELEASE PINS.

This bar is used exclusively to suspend a compliment of two VHD Subwoofers and a single bar is used
on each side of the two enclosures.
The bar employs a total of four angular wedges that are used to ‘lock into’ the handles on each side of
the VHD Subwoofer enclosure and are secured by the insertion of a single

D6 QUICK RELEASE PIN,

(Which are attached to the bar via small shrouded steel ties) into each handle.

VHD BASS EXTENSION ARM (KVV 987 308):

The

VHD SUBWOOFER EXTENSION ARM is of the same design and presentation as the

VHD SUBWOOFER ARM, except it is differentiated by being physically longer and employs a total of
four angular wedges to allow locking into an attached- secondary double hang of VHD Subwoofers
and its enclosure handles.
The same method of inserting a single

D6 QUICK RELEASE PIN into each handle is employed.\

The arm has a poly-hex shape head at the top of the bar, with pre-fixed apertures for the insertion of
the

D12.6 QUICK RELEASE PINS, and is attached to the lower end of the VHD SUBWOOFER ARM by

sliding into the groove and then being secured by the insertion of a single

D12.6 QUICK RELEASE PIN.

To add extra enclosures to the hang, this method of attachment is repeated.

STEEL PULL-BACK ARRESTOR:

A steel chain is used as a pull-back to assist with obtaining desired angles of hang.
Using the pre-set identification coloured links in conjunction with the example diagrams allows quick
and easy set-ups.
A small overhang chain collector bag is provided to protect and store the chain.

VHD 1.0 DOWNFILL ARM (KVV 987 310):

The

VHD1.0 DOWNFILL ARM is a short, flat pre-angled steel bar that has two pre-fixed apertures at

the lower end of the bar to allow different angles of suspension from the enclosure above.
The arm is attached to the VHD1.0 down-fill enclosure by means of two apertures that receive the
insertion of two

D6 QUICK RELEASE PINS.

The top of the bar is attached to the bottom of either the

VHD2.0 TOP ARM or BASS/VHD2.0 ARM by

sliding into the groove and inserting a single

D12.6 QUICK RELEASE PIN.

Description

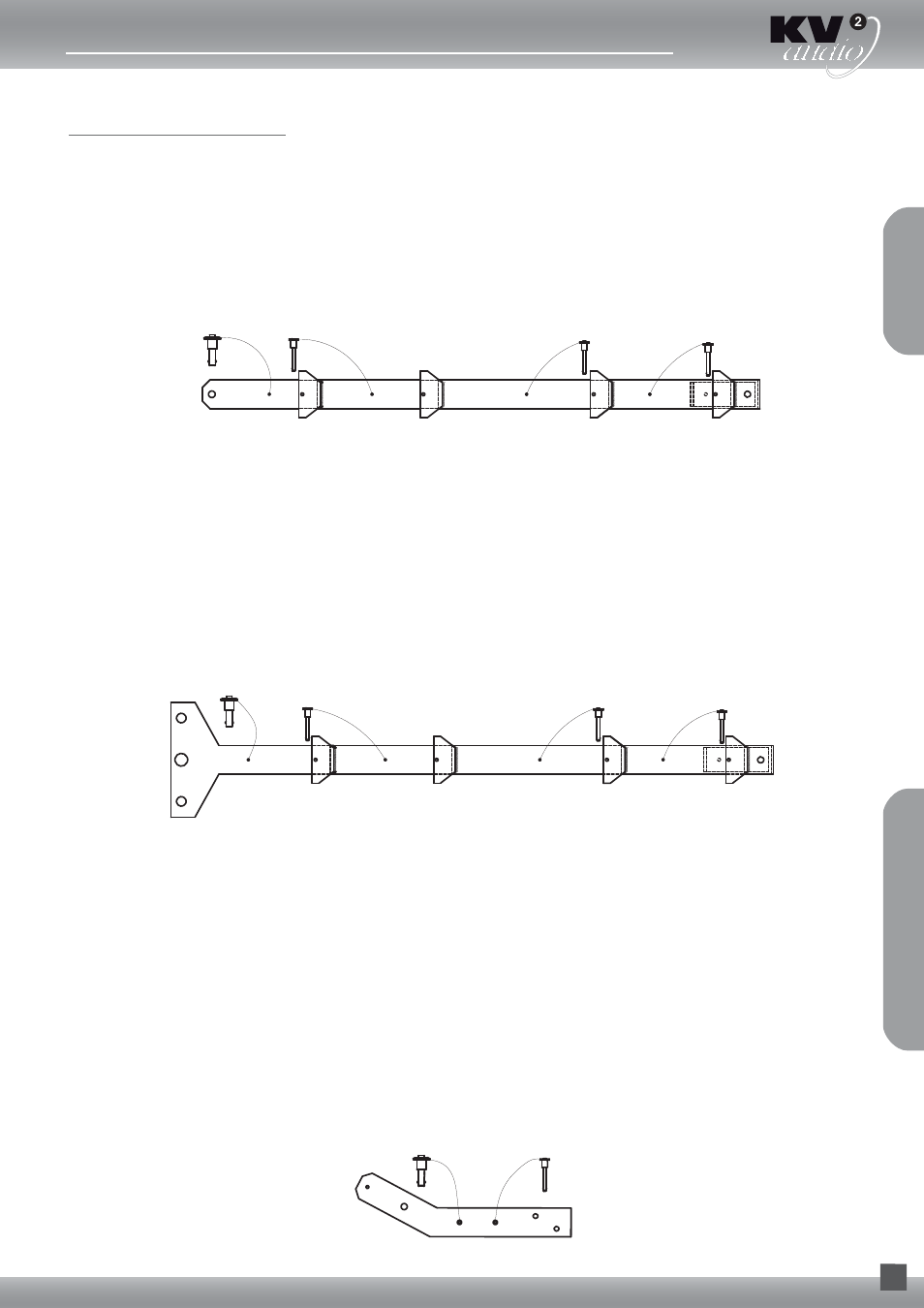

VHD BASS ARM (KVV 987 307)

VHD BASS EXTENSION ARM (KVV 987 308)

VHD1.0 DOWNFILL ARM (KVV 987 310)
