FLY BAR - 0003 (KVV 987 252):

The CROSSMEMBER hanging bracket is a flat and folded steel bar with returned 90 degree ends.
This bracket attaches to the PICKPOINT ARM by simply sliding into two preset grooves, from left to
right and secures smoothly and tightly, thus creating a T- Bar effect.
Once both bars are attached and joined, it is a simple case of locking and securing the correct position
and location, according to which configuration of VHD enclosures are being suspended, either in a
Left/Right unit, by inserting a single D6 QUICK RELEASE PIN, which is attached via a small shrouded
steel tie at the return edge of the PICKPOINT ARM. (See diagram).

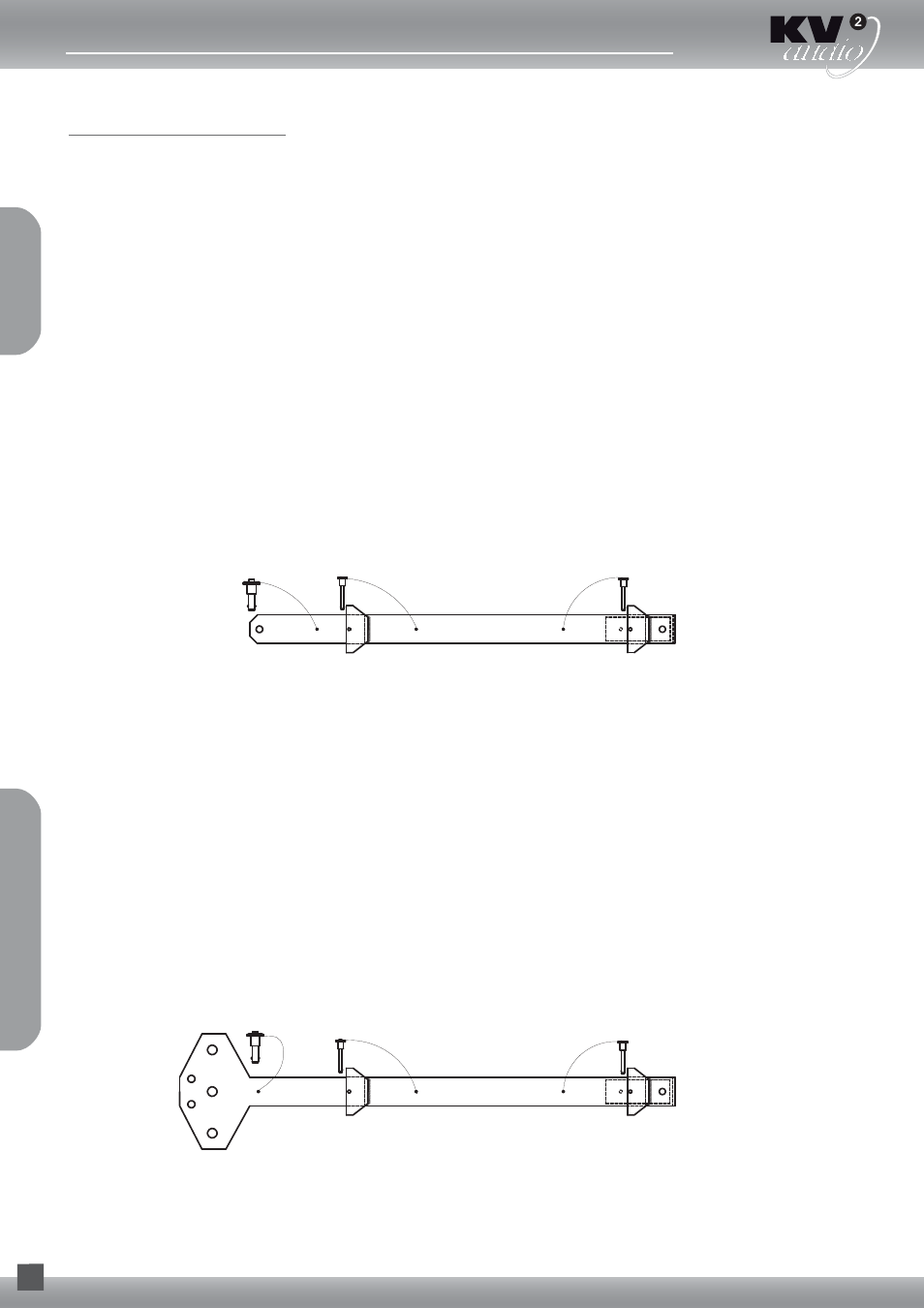

VHD2.0 TOP ARM (KVV 987 309):

The VHD2.0 TOP ARM is a flat steel bar with straight ends, a double groove joint at the lower end and
prefixed apertures to accept both D6 and D12.6 QUICK RELEASE PINS.
A single bar is used on each side of an enclosure.
The bar employs a total of two angular wedges that are used to ‘lock into’ the handles on each side of
the VHD2.0 enclosure and are then secured by the insertion of a single D6 QUICK RELEASE PIN,
(Which are attached to the bars via small shrouded steel ties)into each handle.
Once the VHD2.0 TOP ARMS are attached to the VHD2.0, they are then simply attached to the CROSS
MEMBER
hanging bracket by inserting a single D12.6 QUICK RELEASE PIN through the top aperture
of both of the VHD2.0 TOP ARMS and CROSSMEMBER hanging bracket.

VHD2.0 TOP EXTENSION ARM (KVV 987 306):

The VHD2.0 EXTENSION ARM is of the same design and presentation as the VHD2.0 TOP ARM.
It is intended for use where either a single VHD2.0 is required to be suspended below a combinati-
on of VHD Subwoofers or as an extension to an existing suspended VHD2.0.
It is differentiated by
being physically longer and employs a total of two angular wedges to allow locking into an attached
secondary VHD2.0 and its enclosure handles.
The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed.
The arm has a poly-hex head at the top end of the bar, with prefixed apertures for the insertion of the
D12.6 QUICK RELEASE PINS, to allow desired splay angles of the secondary VHD2.0 and is attached by
the insertion of a single D12.6 QUICK RELEASE PIN.

To add extra enclosures to the hang, this method of attachment is repeated.

Description

VHD F

lybar

Description

6

Description

VHD2.0 TOP ARM (KVV 987 309)

VHD2.0 TOP EXTENSION ARM (KVV 987 306)
