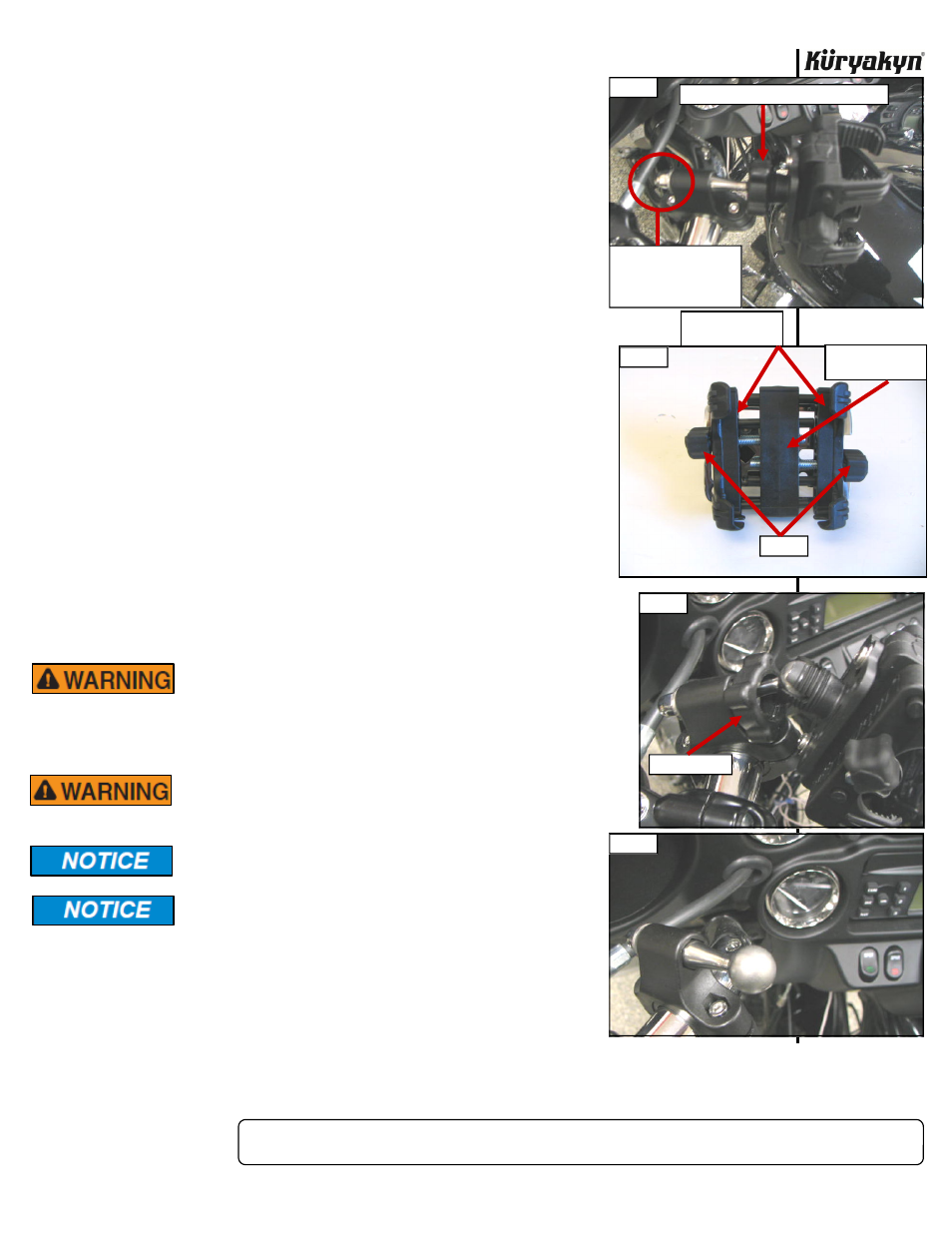

USING THE TECH-CONNECT HOLDER
STEP 1
Open the Tech-Connect Holder so the sides are separated from the
center section. Peel the narrow pieces of foam off the backing paper,
center them in the inset portion of the sides and apply them to the sides
of the holder. Peel the wide piece of foam from the backing paper,
center it in the inset portion in the center and apply it to the center of
the holder. PIC 6
STEP 2 To adjust the opening in the Tech-Connect larger, turn the knobs on the
outside of the Tech-Connect (PIC 6) counter clockwise until your device
will fit in between the arms. Turn the knobs clockwise to close the arms
around the device. There is a locking detent under the knobs to hold
them in place once they come in contact with the device. DO NOT over
tighten the knobs. Tightening them too tight will not allow you to
loosen them with your fingers. Periodically check the tightness of the
mobile device in the Tech-Connect.
NOTE:
For best results keep “L” shaped foot portion of the
Tech-Connect Holder on the bottom of the device. Keep the
device holding support arms centered on the mounting plate.
STEP 3 To remove the Tech-Connect from the bike for storage, loosen the
tensioning nut on the back side of the holder until it clears the threads.
PIC 7 Snap the Tech-Connect holder off of the ball. PIC 8 Remove the
tension nut and thread it to the Tech-Connect holder for storage.
STEP 4 To replace the Tech-Connect on the swivel ball, remove the tension nut
from the back. Slide the tension nut over the swivel ball, snap the
Tech-Connect back on the swivel ball and thread the tension nut onto
the Tech-Connect. Tighten the tension nut to the desired tension.
STEP 5 To adjust the angle of the Tech-Connect, loosen the tensioning nut,
adjust the Tech-Connect to the desired position and tighten the tension
nut. PIC 7 The tension nut will allow you to keep the Tech-Connect in
the same position or, with a little less tightness, allow you to move the
Tech-Connect on the swivel ball.
ENSURE THAT THERE IS CLEARANCE AT ALL POINTS
WHEN THE HANDLEBARS ARE TURNED. INSUFFICIENT
CLEARANCE MAY CAUSE DAMAGE TO THE MOTORCYCLE
OR CAN CAUSE LOSS OF CONTROL THAT COULD RESULT
IN SEVERE INJURY OR DEATH.
DO NOT ATTEMPT TO OPERATE OR REMOVE THE MOBILE
DEVICE FROM THE HOLDER WHILE OPERATING THE
MOTORCYCLE.
Motorcycling can be done in a harsh environment. Make sure
your Mobile Device is appropriate for this application.
Ensure that the Mobile Device is secure in the Tech-Connect
Holder. Küryakyn is not responsible for any Device that is
stolen or damaged from use in this Holder or from the
Holder not being properly secured to the motorcycle. It is
the installer’s responsibility to ensure that all of the
fasteners (including pre-assembled) are tightened before
operation of the motorcycle. Küryakyn will not issue a
warranty on components lost due to improper installation.
Periodic maintenance may be required.
Ride On!
TECH-CONNECT DEVICE HOLDER
INSTALLATION
PIC 7
USE 1/4” FLAT WASHER
FIRST, THEN 1/4” LOCK
WASHER, THEN ACORN
NUT HERE
TENSION NUT
USE TENSION NUT TO ADJUST HOLDER
PIC 5
PIC 8
KNOBS
NARROW PIECES
OF FOAM GO HERE
WIDE PIECE OF
FOAM GOES HERE PIC 6
