PAGE
2
Ensure that the installation of this product does not
interfere with the proper operation of the motorcycle
before riding.
It is the installer’s responsibility to ensure that there is
adequate clearance between the Tech-Connect and any
painted surfaces. Küryakyn is not responsible for any damage
due to inadequate clearance.
Avoid damage to the motorcycle. Protect painted surfaces
with a soft cloth or blanket.

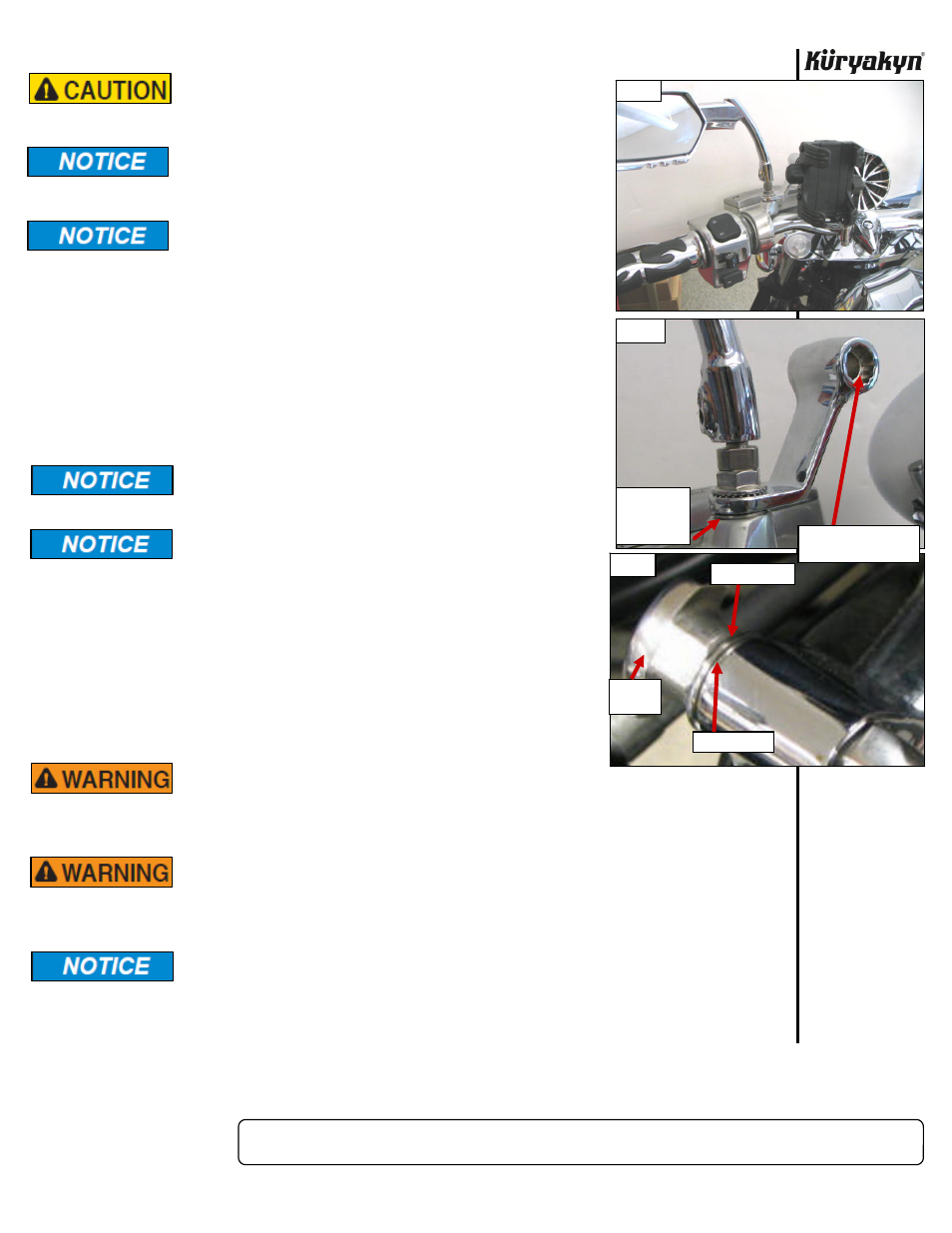

STEP 2 Determine which side of the motorcycle that you would like to mount the
Mirror Mount. Remove that mirror.
STEP 3 Determine the orientation of the mirror mount so that it will not interfere
with any component on the motorcycle. (The typical mounting position is
opposite the direction of the mirror head) Insert the threaded portion of
the mirror through the mirror mount. Place the included internal tooth
lock washer under the mirror mount and thread the mirror back to the
mount on the motorcycle. PIC 1 (Depending on the area of
installation you may need to use the included flat washer under
the internal tooth lock washer to level out the Mirror Mount.)
Confirm proper thread depth engagement between the mirror
and the perch. The mirror should thread in to the perch
1-1/2 times it’s thread diameter.
Ensure that the supplied anti-seize is applied to all threaded
fasteners before installation; this will make future removal
of the fasteners easier.
STEP 4
To mount the Tech-Connect Device Holder, place the stud through the
mirror mount, lining up the edges of the flats on the stud with the
notches in the mirror mount. PIC 2 Place the shim washer(s) first, then
the lock washer over the protruding end. Apply anti-seize to the
threaded portion of the stud and secure with the thumb nut. PIC 3
STEP 5
Turn the handlebars in both directions to their full stop position and
ensure that there is clearance between the Tech-Connect Device Holder
and the gas tank, dash and other components on the motorcycle.
ENSURE THAT THERE IS CLEARANCE AT ALL POINTS
WHEN THE HANDLEBARS ARE TURNED. INSUFFICIENT CLEARANCE MAY
CAUSE DAMAGE TO THE MOTORCYCLE OR CAN CAUSE LOSS OF CONTROL
THAT COULD RESULT IN SERIOUS INJURY OR DEATH.
TO PREVENT POSSIBLE LOSS OF CONTROL, WHICH COULD RESULT IN
SERIOUS INJURY OR DEATH, WE DO NOT RECOMMEND REMOVING,
REPLACING OR ADJUSTING THE DEVICE IN THE TECH-CONNECT WHILE
RIDING THE MOTORCYCLE.
It is the installer’s responsibility to ensure that all of the fasteners (including
pre-assembled) are tightened before operation of the motorcycle. Küryakyn will
not provide warranty coverage on products or components lost due to improper
installation or lack of maintenance. Periodic inspection and maintenance are
required on all fasteners.
TECH-CONNECT DEVICE HOLDER
INSTALLATION
-cont.-
PIC 2
INTERNAL
TOOTH LOCK
WASHER
GOES HERE
PIC 1
PIC 3
SHIM WASHER
LOCK WASHER
THUMB
NUT
LINE UP EDGES OF
FLATS WITH NOTCHES
