INSTALLATION
Screen Size

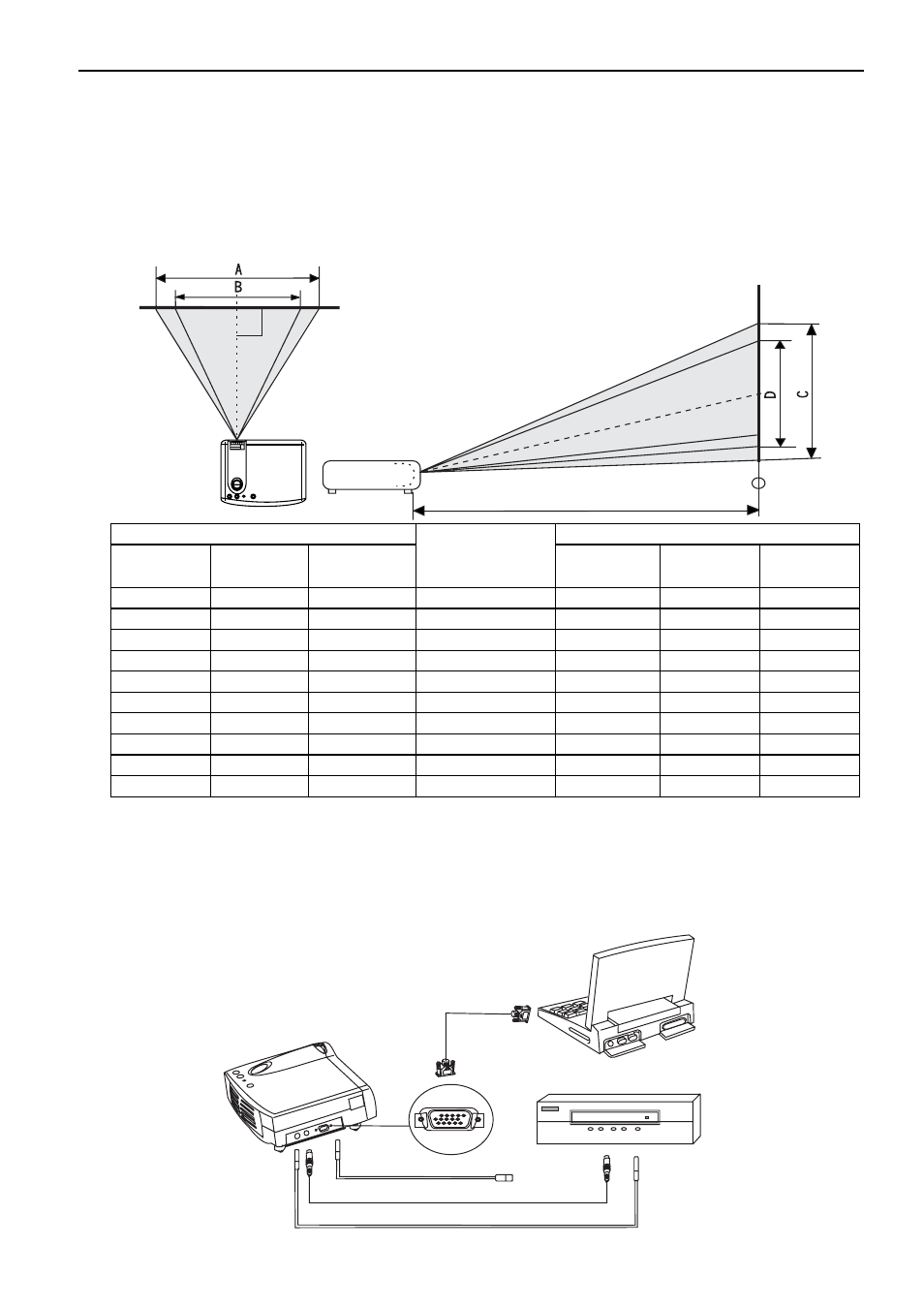

Place the projector at the required distance from the screen according to the desired
picture size (see the table below).
Connecting to Various Equipment
It only takes a few seconds to connect your projector to your computer/notebook,
VCR or other systems. However, a Mac adapter (an optional accessory) is needed for
connection for Macintosh users.
Screen Size (Max.)
L. Projection
distance (cm/in)
Screen Size (Min.)
Diagonal
(cm/in)
A. Width
(cm/in)
C. Height
(cm/in)
Diagonal
(cm/in)
B. Width
(cm/in)
D. Height
(cm/in)
77/30.4 61.8/24 46.3/18 100/39 63/24.9 50.7/20 38.0/15
154/60.8 123.65/49 92.7/36 200/79 127/49.9 101.3/40 76.0/30
232/91.2 185.3/73 138.9/55 300/118 190/74.7 151.9/60 113.9/45
309/121.5 247.0/97 185.2/73 400/157 253/99.7 202.5/80 151.9/60
386/151.9 308.7/122 231.6/91 500/197 316/124.6 253.2/100 189.9/75
463/182.3 370.5/146 277.9/109 600/236 380/149.5 303.8/120 227.9/90
541/213.1 432.2/170 324.18/128 700/276 443/174.6 354.4/140 266.2/105
617/243.1 494.0/194 370.5/146 800/315 506/199.4 405.1/160 303.8/120
695/273.5 555.7/219 416.7/164 900/354 570/224.3 455.7/180 341.8/135
772/303.9 617.5/243 463.11/182 1000/394 633/249.2 506.3/200 379.8/150
L Projection Distance
Computer/
HDTV
S-Video/
Video
Audio
Video
S-Video
