STEP 11
Place a drop of blue thread locker on the 5/16” (larger) end of the stud. Place the
Alley Cat Cover over the filter and secure to the filter with the stud. Tighten to
36-60 in/lbs, lining up the flats on the stud with the dowels on the cover as shown
in PIC 10.
STEP 12
Place the Nylon Ratchet over the hex on the stud on the outside of the cover.
There are indents in the Nylon Ratchet that will fit over the dowels on the
cover.PIC 11 You may have to loosen or tighten the stud slightly to get the indents
and dowels to line up. PIC 12 Place a drop of blue thread locker on the threads of
the stud and thread the Tri-Bar fastener to the stud. There are teeth on the Nylon
Ratchet that the teeth on the Tri-Bar will engage to help hold the Tri-Bar in place.
The Tri-Bar only needs to be finger tight! DO NOT over tighten it!
STEP 13 Check all hose connections and tighten all hardware. Rotate the throttle
open and make sure it returns correctly before starting the motorcycle.
Some of our high performance air cleaners extend beyond the
stock/OEM unit to achieve smoother air flow and better performance.
Riding position may be affected, so it is important to familiarize
yourself with the new riding position.
It is the installer’s responsibility to ensure that all of the fasteners
(including pre-assembled) are tightened before operation of the
motorcycle. Küryakyn will not provide warranty coverage on
products or components lost due to improper installation or lack of
maintenance. Periodic inspection and maintenance are required on
all fasteners.
PAGE
4 Ride On!

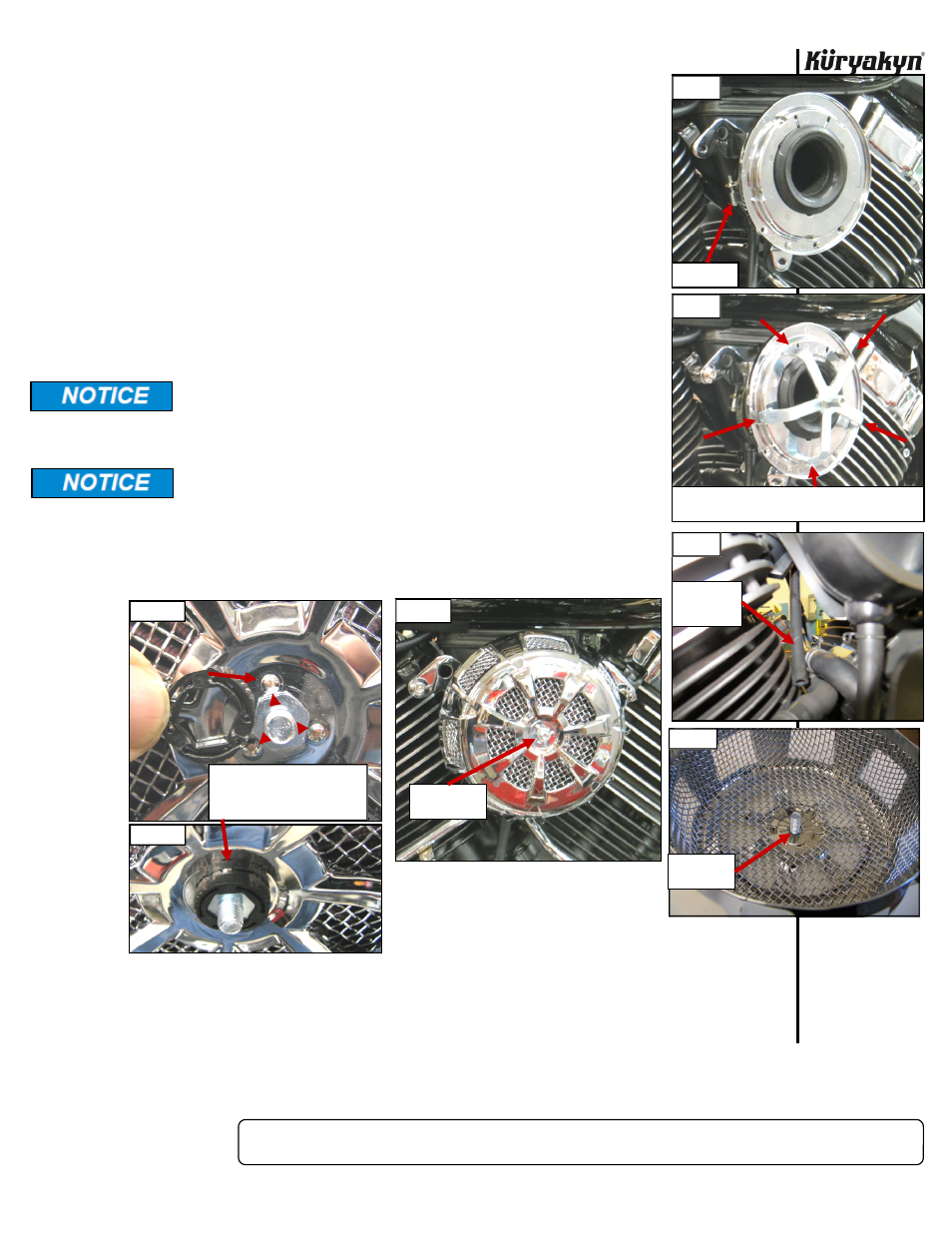

ALLEY CAT AIR CLEANER
INSTALLATION
PIC 9
PIC 11
LINE UP FLATS ON STUD WITH
DOWELS ON COVER THEN
NOTCHES ON RATCHET WILL
LINE UP WITH DOWELS
PIC 12
PIC 6
OEM CLAMP
ATTACH SPIDER BRACKET USING #8-32 FLAT
SOCKET CAP SCREWS
PIC 7
PIC 8
ATTACH “T”
FITTING TO
THIS HOSE
LARGE END
OF STUD
PIC 10
TIGHTEN TO
36-60 IN/LBS
