Installation
LOADING THE SYRINGE
1. Release the syringe pusher (4) by pressing the bronze button (3) on the side of the pusher.
2. While holding the bronze button ‘in’, slide the pusher to the right.
3. Raise the spring loaded syringe retainer (1) and swing it out of the way.
4. Lay the loaded syringe in the ‘V’ shaped holder.
5. Swing the retainer so it holds the syringe in place.
6. Move the pusher so it makes contact with the syringe plunger.
7. Adjust pusher block thumbscrews & bracket (2) until the Syringe plunger is completely captured.
8. The limit switches can be easily adjusted by loosening the #2 nuts (not shown), sliding the
switch to the desired position, and retightening the nuts into place.
• A sturdy, level, clean and dry surface
• Minimum of one inch (2.5cm) clearance
around the pump
• Appropriate environmental conditions
• Mount into an appropriately rated
enclosure or cabinet

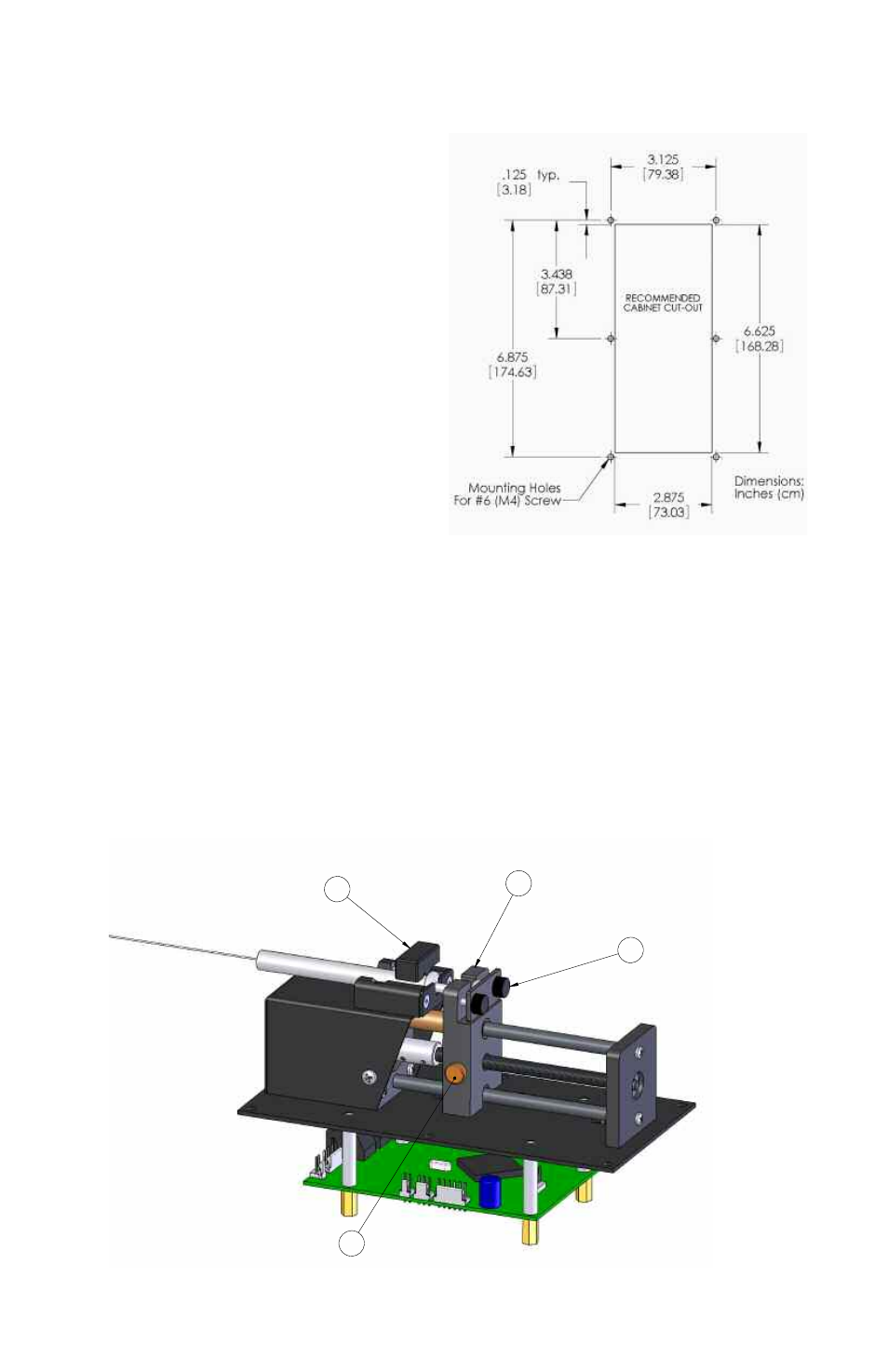

• Required clearance below mounting
panel: 2.00” (5cm).
LOCATION REQUIREMENTS
FOR THE SYRINGE PUMP
