KDS Microliter OEM Module
11
HYPER-TERMINAL: Terminal Emulation Software
REMOTE CONTROL VIA THE RS-232 INTERFACE USING HYPERTERMINAL*
* Normally included with most Windows
®
operating systems.
Milliliter Modular Syringe Pump Component
1. Connect the RS-232 cable between the “µL” OEM Pump Module RS-232 IN port
and a PC’s serial port.
2. On the PC (running a Microsoft Windows Operating System), select START –
PROGRAMS – ACCESSORIES – HYPERTERMINAL – HYPERTERMINAL to start the
HyperTerminal application. If HyperTerminal is not available, install it from the
Microsoft Windows Operating System Install disks or CD ROM.

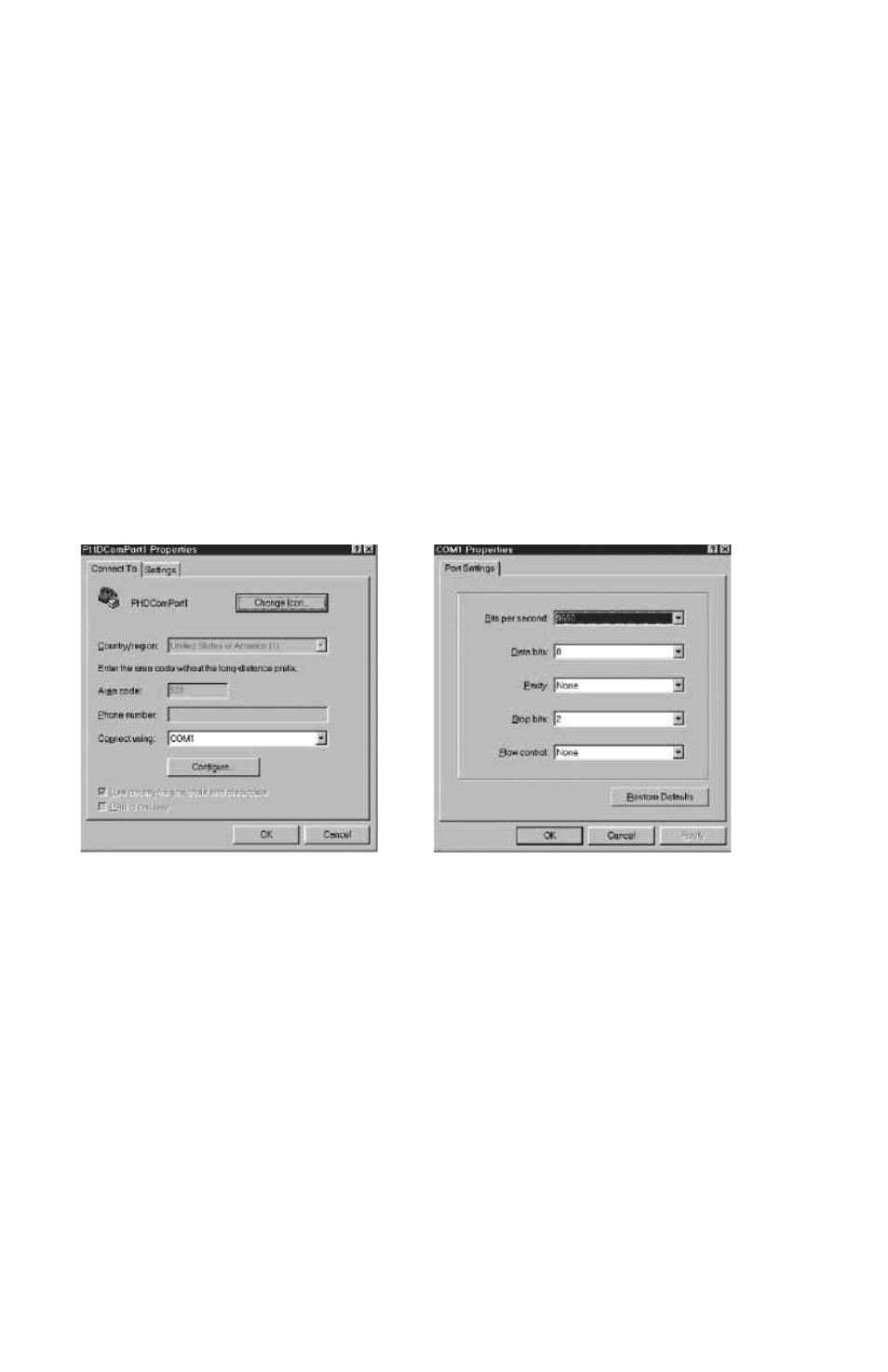

3. Set up the appropriate COMPORT for the following:
ASCII Setup:
Echo typed characters locally
Line delay: 0
Character delay: 0
Wrap lines
Configure:
Baud Rate:
9600
Data Bits:
8
Parity:
None
Stop Bits:
2
Flow Cntrl:
None
Emulation:
Auto Detect
