Kargo Master Safari Basket (50251) - Manual (Page 4)

STEP 1
STEP 2
A
B
A
C
01
02
03
03
04
02
B
C
C
C

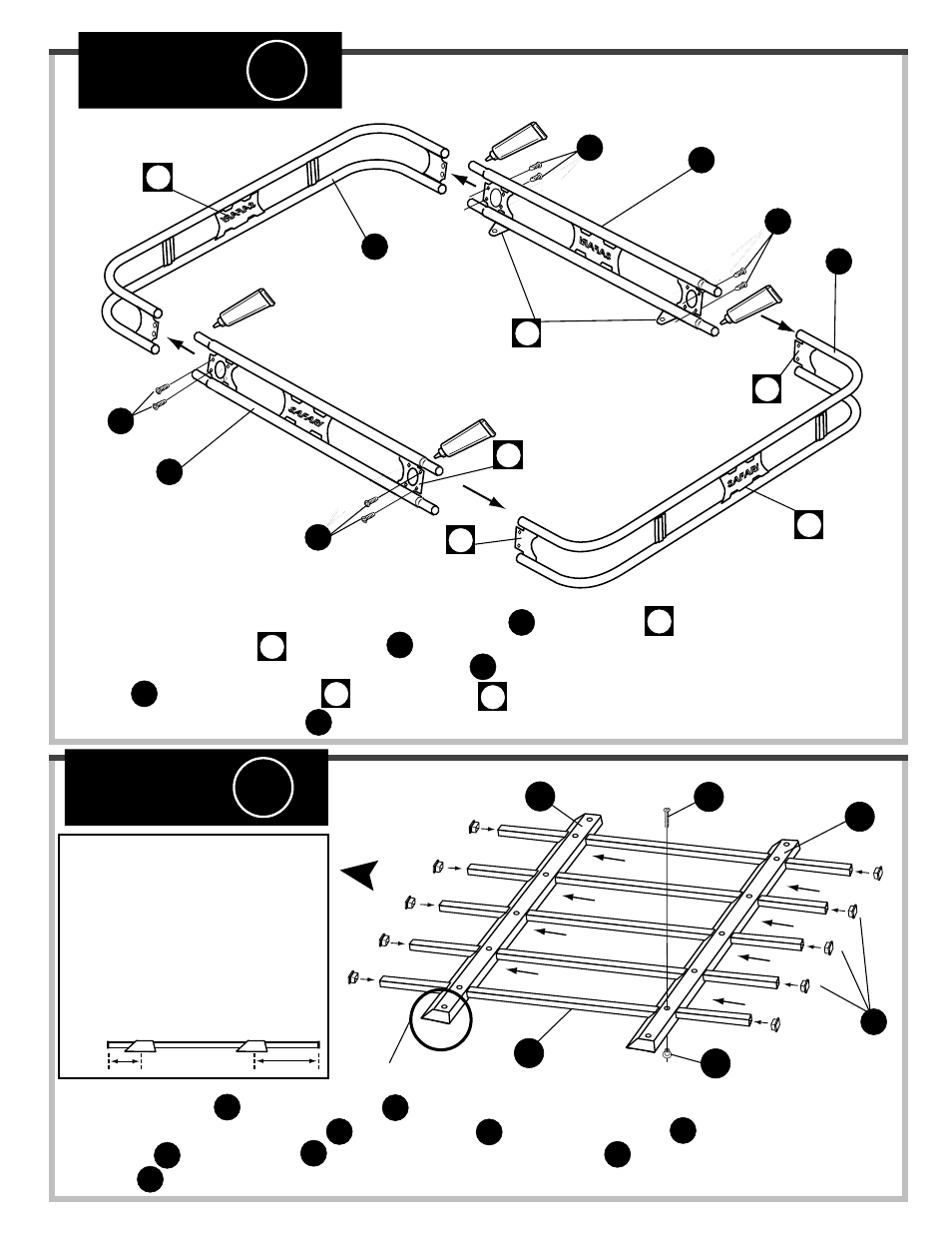

DIAGRAM #1
Bushman 11_1.1
DIAGRAM #2
#
1
= First layout the basket tubes per Diagram #1. Position bent end sections with "Safari Logo"
facing up and mounting tabs on side sections facing in, per Diagram. It is recommended to
cover the entire joint surfaces with GOOP and then i nsert section into
section positioning mounting flange to the inside of flange .
Align holes and start all eight screws before final tightening to insure all holes are properly aligned.
B
B
C
A
A
01
02
03 04
GOOP
D
D
G
H
F
E KM
KM
FRONT OF VEHICLE
SECTION "05"
On Jeep sport bar mount racks (part no.
50031 or 50241) the distance from the
flange nut hole to the end of the floor tube is
not the same. Be sure the shorter distance
is towards the front of the vehicle.
NOTE:
KM KM FRONT
OF
VEHICLE
#
1
= Next insert floor tubes through cross members making sure tapered edges on SECTION "05" are
facing the same direction. Align holes in tube with holes in section and insert button head bolts
and press nuts into bottom of tubes , (as per diagram) and tighten. Now insert plugs into ends of
floor tubes , it is recommended to apply GOOP into the ends of the floor tubes before inserting. G
E
E
E
E
F H
D
D
GOOP
GOOP
GOOP
