Kargo Master Transit Partition (406TH) User Manual
Page 2

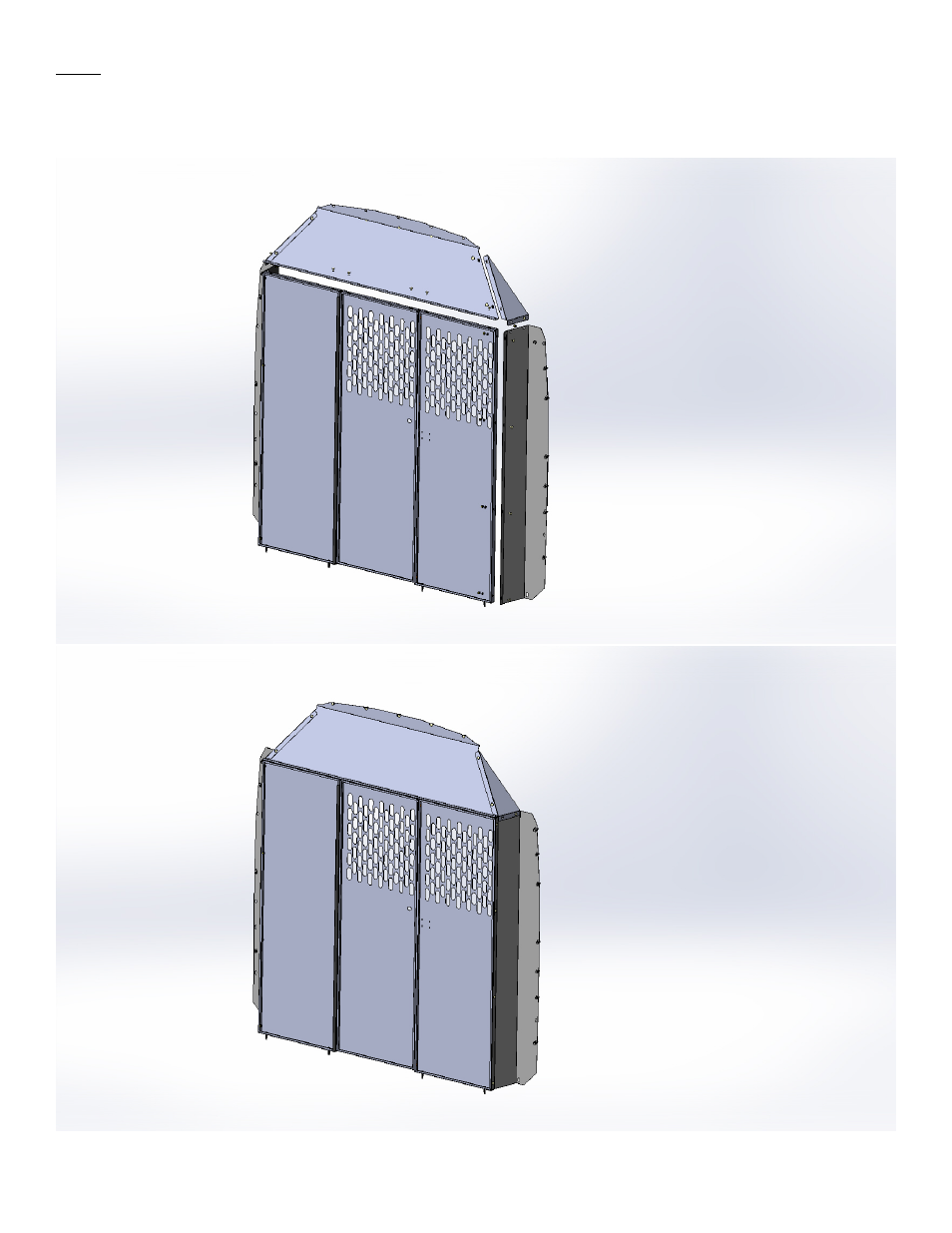

Step 2
Bolt “Wing Panels”(Box 406TH) to the “Partition Door Assy.” Using 1/4x1/2 Carriage bolts with flat washers and nyloc
nuts as shown. Be sure to use flat washers as spacers on the door panel between the “Top Wing Panel” and the door so
it will open properly. Shown below in the Transit Mid-Roof configuration (100” Roof).
2
