Kargo Master Single Drop Down Ladder Rack – Transit/NV Low Roof (40923) User Manual
Page 5

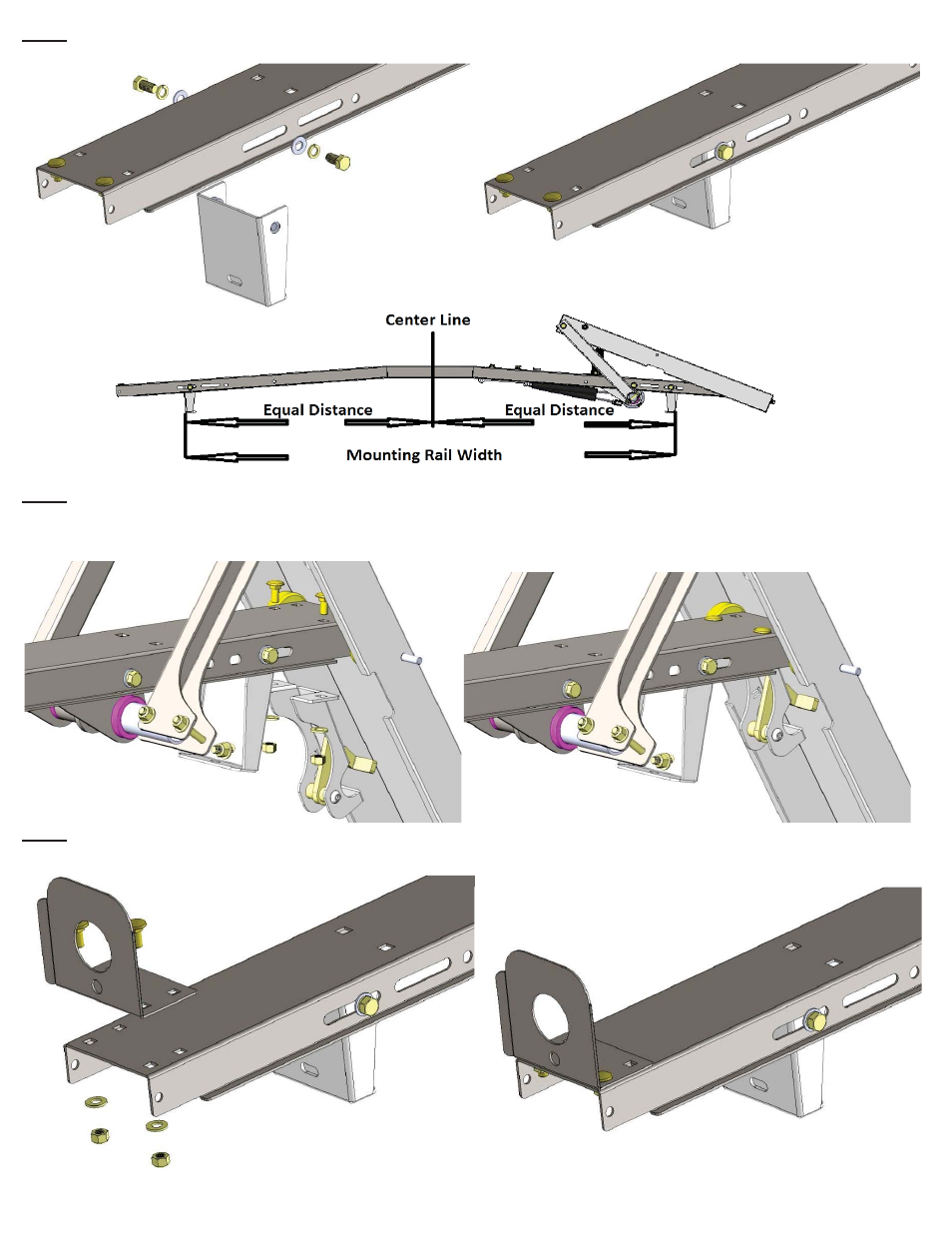

Step 2
Measure width of the mounting rail and bolt feet to bows at that approximate location as shown, DO NOT TIGHTEN at this point.
Step 3
Attach the "Latch" to the rear bow. The rear bow is the one with the black dampener assembly and 2 holes in the lift arm, which should face the rear of the
vehicle. Bolts go through the 2nd row of square holes from end. Use 5/16”x3/4” carriage bolts with flat washers and nyloc nuts. The Kargo Master label must
face the rear of the vehicle.
Step 4
Next bolt the "Load Plate" on the driver side of the bows using 5/16”x3/4” carriage bolts with nyloc nuts and flat washer as shown.
