EH

15

1a

1b

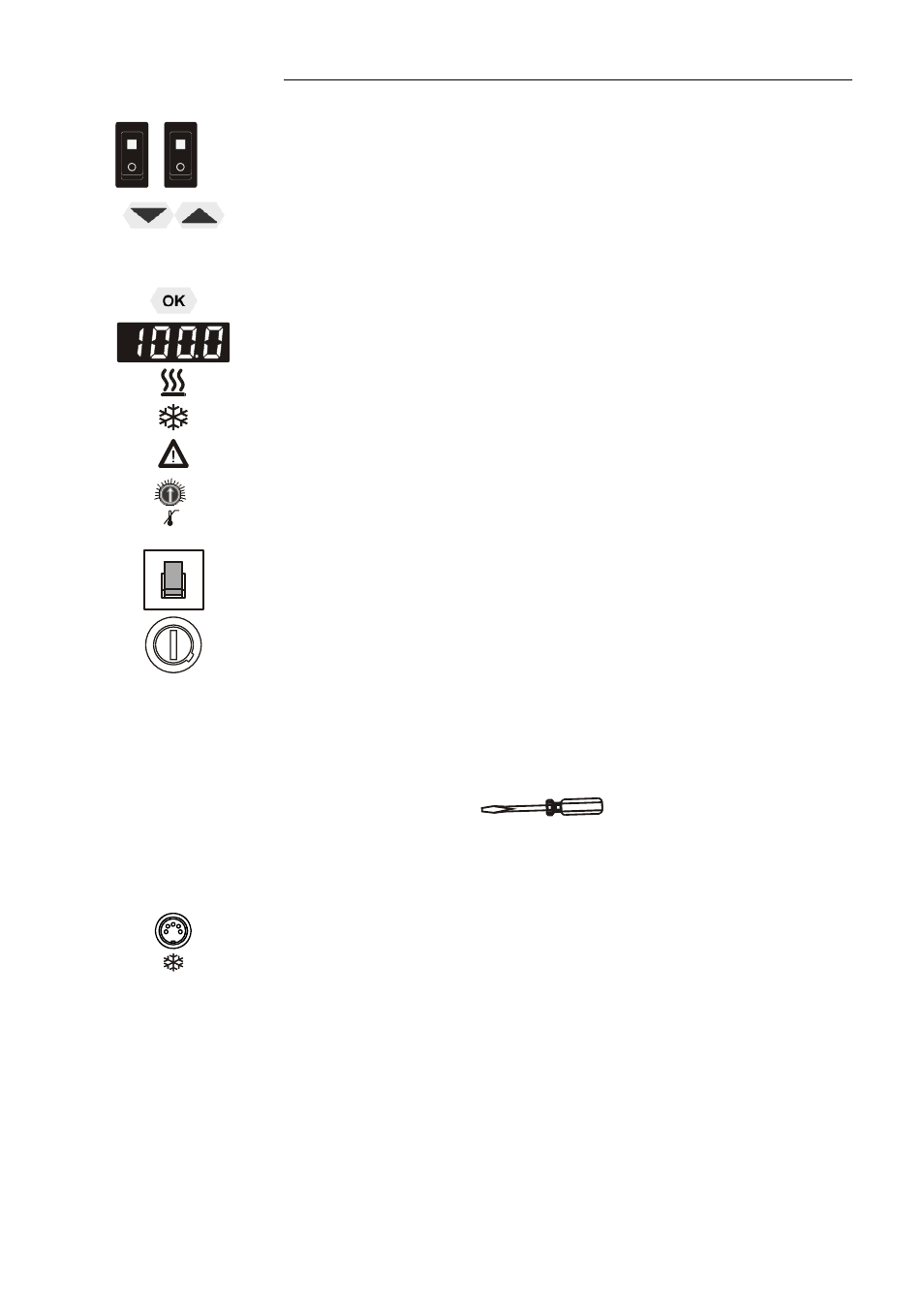

Mains power switch, illuminated for circulator

Mains power switch, illuminated for cooling machine

2

Edit keys

Setpoint increase or decrease

Press keys shortly for step-by-step changes

,

Keep the keys pressed for fast change of setpoint

3

OK key (store)

4

LED temperature display, menu indication

5

Control indicator –Heating

6

Control indicator – Cooling

7

Control indicator – Alarm

8

°C

40

80

160

120

0

Adjustable excess temperature protection
according to IEC 61010-2-010

9a

15

A
M
P

Mains circuit breakers 15 A

9b

Mains fuses for cooling machine, T10A

10a

10b

Mains power cable with plug for circulator

Mains power cable with plug cooling machine

11

Drain port (not on F12)

13

Venting grid, removable

14a

14b

Pump

connector:

feed

Pump connector:

return

15

15a

15b

Control cable

Socket:

output for alarm messages or

control cable of JULABO refrigerated circulator

(not on F12)

17

Built-in mains outlet for connection of circulator

19a

19b

Castor with brake (at the front)

Castor without brake (at the back)
