ED

21

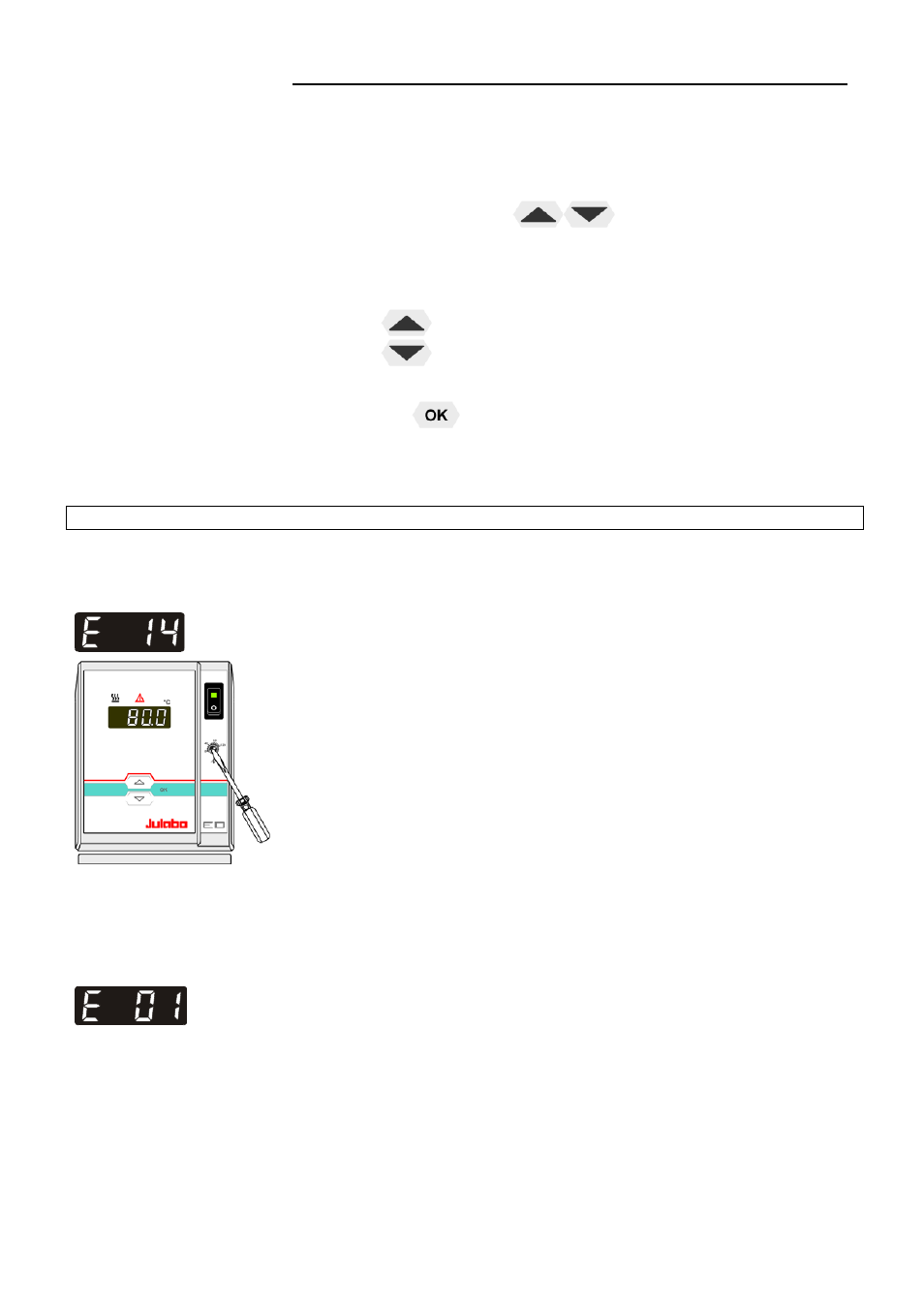

6.4.

Setting the temperatures

Factory setting: 25 °C

Setting can be carried out in the start/stop condition.

1.

Press one of the keys

for a short moment. The

setpoint value instead of the actual value is indicated on the
display for about 8 seconds. The value can now be changed.

2.

Change value:

Press

to set a higher value.

Press

to set a lower value.

Keep the keys depressed for the value to change fast.

3.

Press the

key to store the value.

6.5.

Safety installations according to IEC 61010-2-010

Check the safety installations at least twice a year (see page 12)!

6.5.1. Excess temperature protection

This safety installation is independent of the control circuit. When
the temperature of the bath fluid has reached the safety
temperature, a complete shutdown of the heater and pump is
effected.
The alarm is indicated by optical and audible signals (continuous
tone) and on the LED-DISPLAY appears the error message
"Erro 14".

Setting range:

20 °C to 120 °C

 Using a screwdriver turn the setting screw to the desired value.

Recommendation:
Set the excess temperature protector at 5 to 10 °C above the
working temperature setpoint.

6.5.2. Low liquid level protection


This safety installation is independent of the control circuit.
If the low liquid level protection device is triggered, a complete
shutdown of the heater and circulating pump is effected.
The alarm is indicated by optical and audible signals (continuous
tone) and on the LED-DISPLAY appears the error message "Error
01".

Turn off the unit with the mains switch, refill bath fluid and turn
the unit on again!
