Preparations

18

5.7. Countercooling

Notice:

Observe the laws and regulations of the water distribution company valid in the
location where the unit is operated.

Securely attach all tubing to prevent slipping.






For applications near the ambient temperature, the cooling coil
must be connected to the water mains.

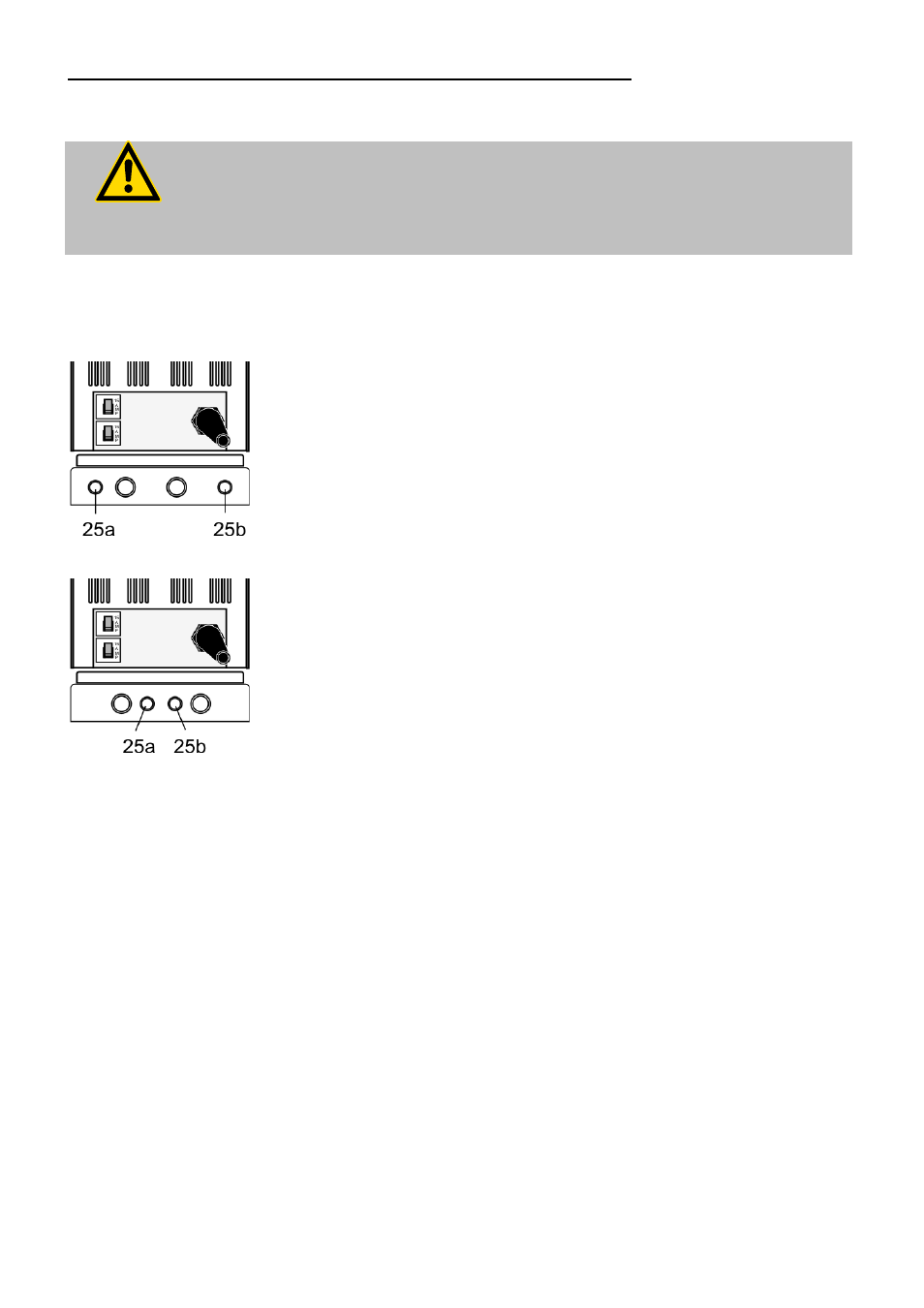

 Using tubing, connect the cooling coil (25a) to the tap water

supply, and lead the tap water in a sink through the return
connector (25b).

Cooling coil

 ED-5A / ED-5M

Cooling coil

 ED-5

A specific water flow rate of 45 ml/minute is sufficient to
compensate for the characteristic temperature.

For applications near ambient temperature (20 °C), the
cooling water temperature should at least be 5 °C below the
working temperature.


NOTE: Immersion coolers are used for countercooling instead of tap water in
applications below room temperature.

Order No.

Description

9 650 820

FT200

9 650 840

FT400

8 970 400

Clamp for cooler probe for open baths
