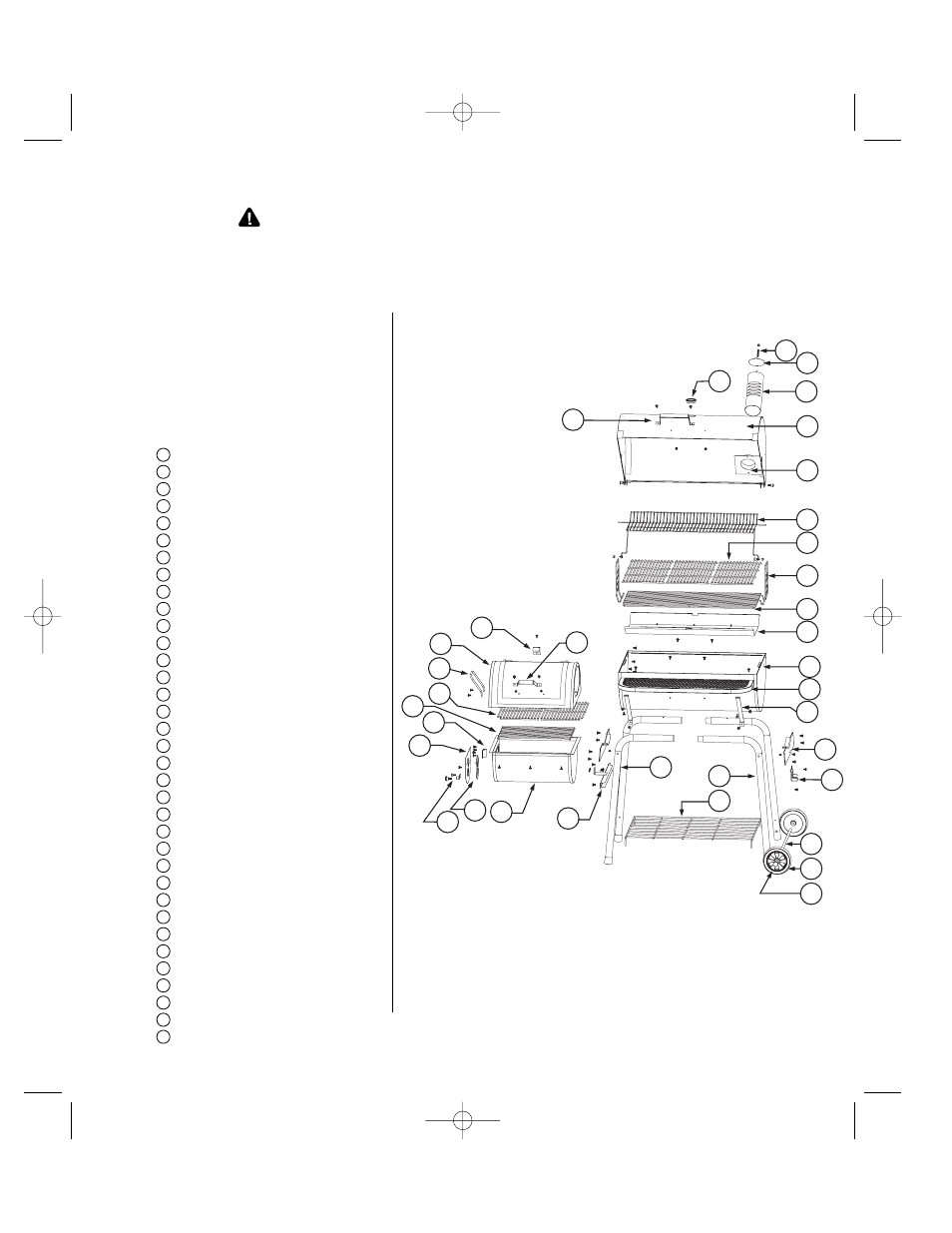

PARTS LIST - Smoke’N Pit:

2 Right Legs
2 Left Legs
1 Shelf
1 Axle
2 Wheels
2 Wheel Caps
2 Leg Braces
1 Firebox Support
1 Grill Base
1 Front Shelf
2 Front Table Supports
1 Charcoal Tray
1 Charcoal Grate
2 Charcoal Grate Adjusters
3 Cooking Grills
1 Warming Rack
1 Grill Lid
1 Smokestack Bracket
1 Smokestack
1 Smokestack Damper
1 Spring
1 Temperature Gauge
1 Grill Lid Handle
1 Firebox Lid Stop
1 Firebox Lid
1 Firebox Lid Handle
1 Push Handle
2 Firebox Cooking Grills
1 Firebox Door Hinge
1 Firebox Door
1 Firebox Air Shutter
1 Firebox Charcoal Grate
1 Firebox Door Latch
1 Firebox Base
1 Grease Cup Holder

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

ASSEMBLY INSTRUCTIONS

READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY

BEFORE ASSEMBLING OR OPERATING YOUR GRILL.

FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717.

(Proof of purchase will be required.)

Inspect contents of the box to ensure all parts are included and undamaged.

3

We recommend two people work together
when assembling this unit.

The following tools are required to assemble
this Smoke’N Pit:

Pliers

Phillips & Flathead Screwdrivers

Adjustable Wrench

21

20

19

17

18

16

14

13

12

9

10

4

5

6

11

7

35

15

1

3

2

8

34

31

33

30

29

32

28

27

25

24

26

23

22
