Brinkmann Smoke'n Pit User Manual
Page 10

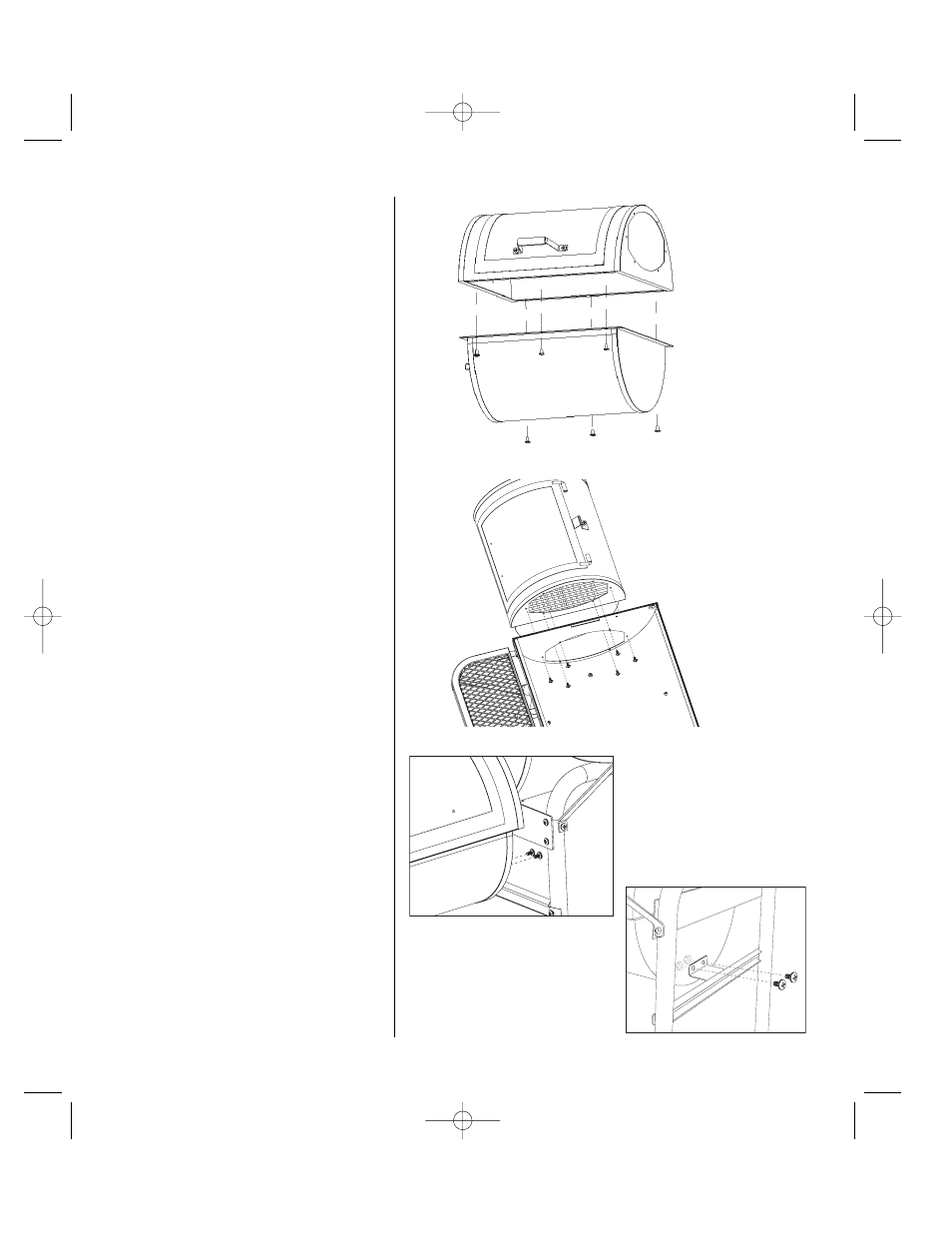

Step 13
Connect firebox lid (item #25) and firebox
base (item #34) using six M6 x 12mm
Phillips head bolts.
Step 14
Connect firebox and grill base (item #9)
together using six M6 x 12mm Phillips
head bolts.
Step 15
Connect firebox support (item #8) with
firebox base (item #34) using two
M6 x 12mm Phillips head bolts and M6
nuts.
