HYDAC AS 1000 - Manual (Page 10)

User Manual AS 1000 09.04.2008
10
10.3 HMG 3000
Portable data recorder with a full graphical colour display for displaying or recording measured
values of the AS 1000. In addition changes can be made to the parameters of the AS 1000
using the HMG 3000.
In conjunction with the HMG 3000 the actual measured values can be shown on the HMG
3000 display. The recordings can also be saved on the HMG 3000 and edited (for a more
detailed description, see HMG 3000 Operating Manual).
Order no.: 909437 HMG 3000-000-E (without accessories)

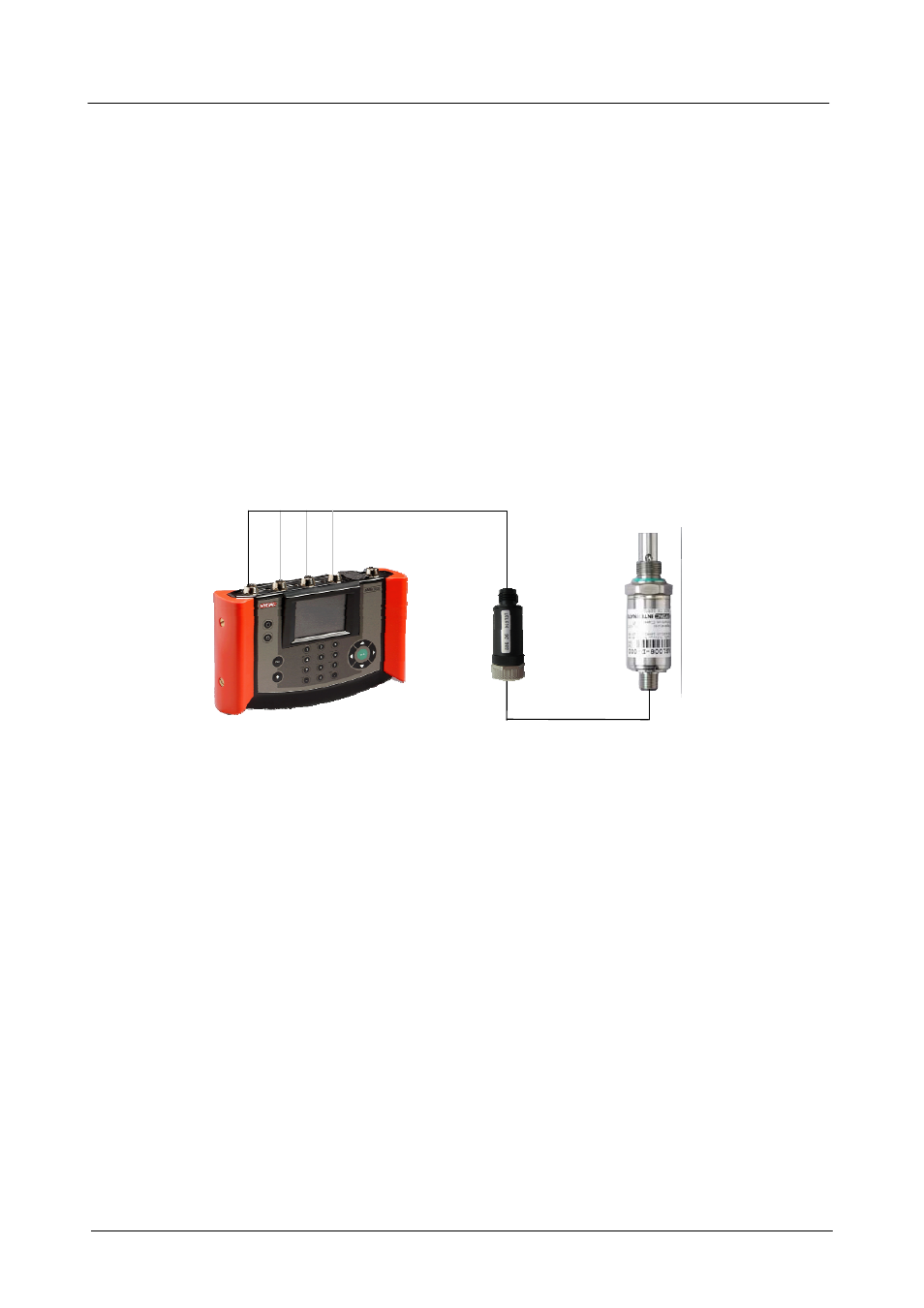

Connection to a HMG 3000
Remove the supply cable from the electrical connection of the AS 1000 and screw the
connection adaptor AS / HLB "ZBE 36" into the sensor.
Connect one of the inputs A to D of the HMG 3000 to the output "ZBE 36" using a sensor
cable "ZBE 30-0x".
When connecting to an HMG 3000 the voltage supply for the sensor is via the measuring unit.
10.4 CMWIN
Specially developed PC software which communicates via a communication bridge (HMG 510
or
HMG 3000 ) with the AS 1000. Using the software, measurement curves can be transferred
to your PC, saved, displayed and edited or the actual measured values can be displayed. With
the AS 1000 "P" version, it is also possible to configure the sensor according to individual
requirements.
CMWIN is supplied with the HMG 510 and HMG 3000.
