Humanscale Cinto Dolly - Manual (Page 2)

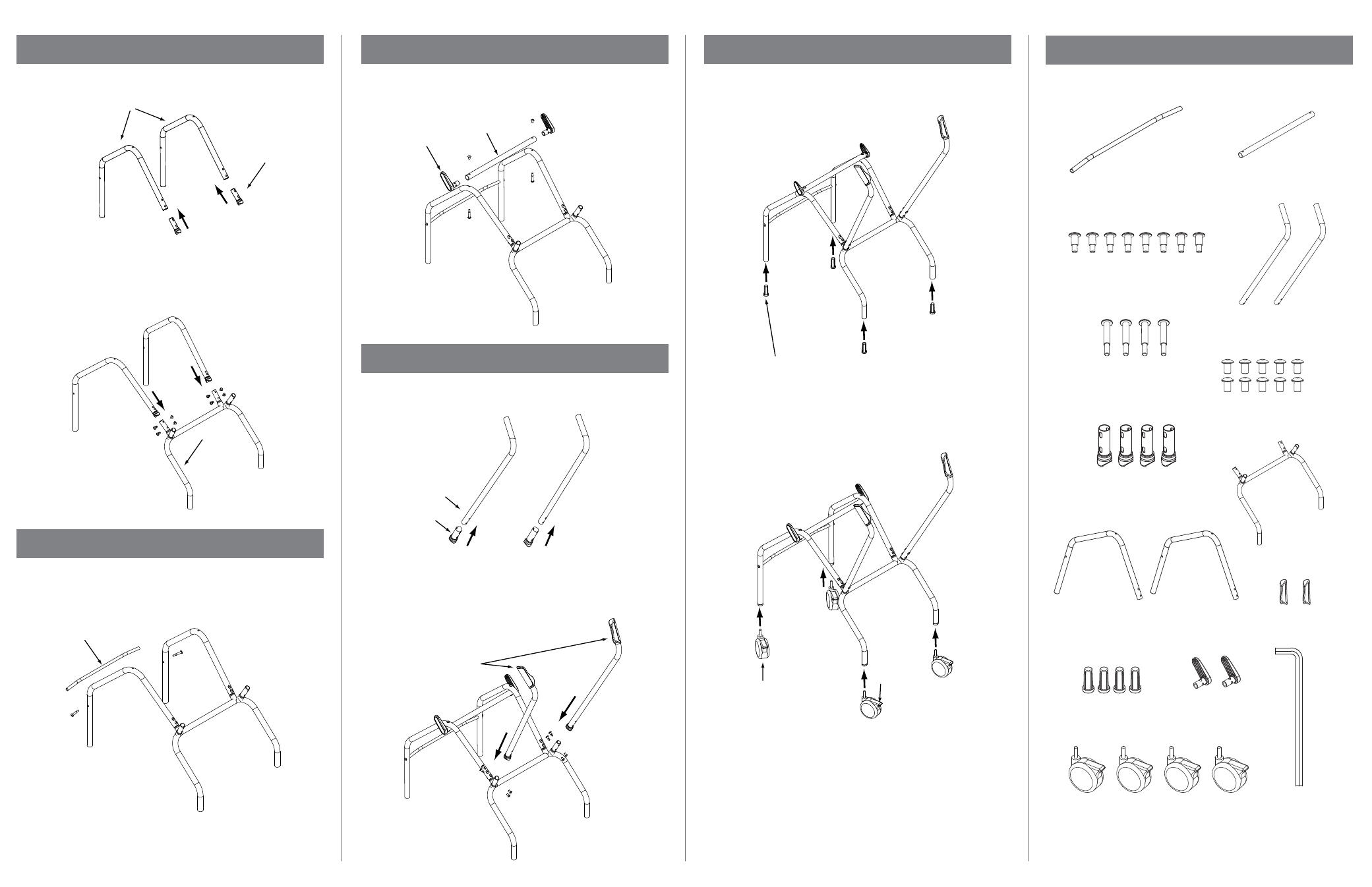

STEP 1: ATTACH FRONT LEGS TO BACK FRAME STEP 3: ATTACH CHAIR GUIDES
STEP 4: ATTACH HANDLES
STEP 2: ATTACH FRONT CROSSBAR TO FRONT LEGS
Insert 2 Plastic Bushings (A) into Front Legs (B). Align holes.
Slide Front Legs onto Back Frame (C). Fasten using 4 Small
Assembly Screws and Fasteners.
Note: Be sure holes are perfectly aligned before inserting
screws and fasteners.
STEP 5: ATTACH CASTERS
Insert Caster Stems (A) into the ends of Cinto Dolly legs. This
may take some force. Use a hammer or mallet if necessary.
Insert Casters (B) into Caster Stems. Be sure Casters with
locking mechanisms (C) are in the back.
Fasten Front Crossbar (A) to Front Legs with 2 Large
Assembly Screws.
Insert Chair Guides (A) into the ends of Top Crossbar (B). Align
holes, then fasten Top Crossbar to Front Legs using 2 Large
Assembly Screws and Fasteners.
Insert 2 Plastic Bushings (A) into Handles (B). Align holes.
Slide Handles onto Back Frame and fasten with 4 Small
Assembly Screws and Fasteners. Slip Grips (C) onto Handles.
Note: Be sure holes are perfectly aligned before inserting
screws and fasteners.
A
A
A
B
A
B
A
B
C
B
C
Front Crossbar Top Crossbar
2 Chair Guides
4 Large Assembly Screws
4 Plastic Bushings
2 Front Legs
4 Caster Stems
4 Casters
Back Frame
10 Fasteners
2 Grips
2 Handles
8 Small Assembly Screws
2 Hex Keys (4mm)
ASSEMBLY HARDWARE
C
