37

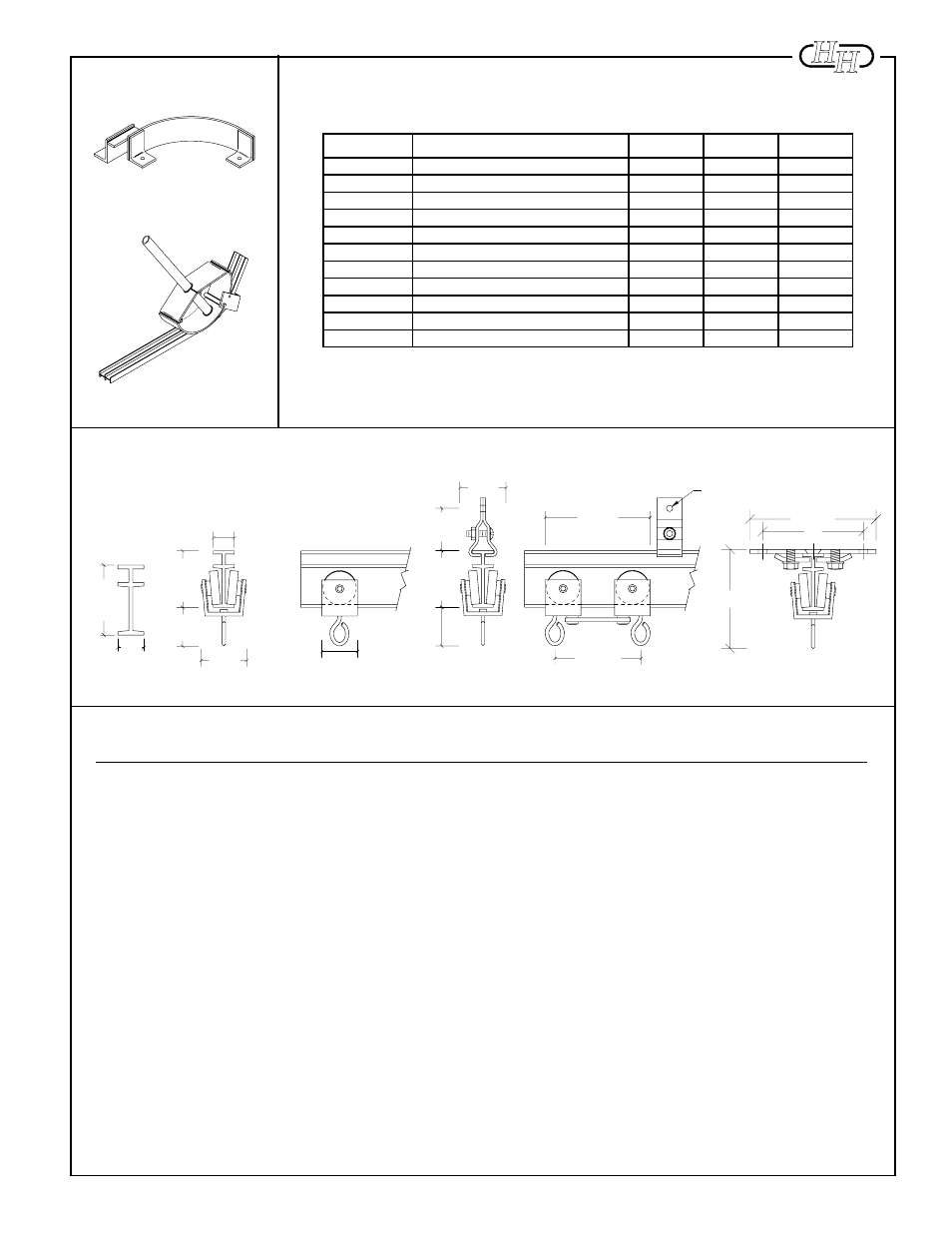

701 SINGLE CARRIER 702 MASTER CARRIER 710 TRACK 711 CEILING HANGER
GENERAL SPECIFICATIONS: LIGHT-DUTY CURVED TRACK
Provide Model 701A as manufactured by H & H Specialties Inc., South El Monte, CA.
Track shall be 1-11/16" I-beam, with 5/8" top, intermediate and bottom flanges, extruded from mill finish 6063-T5
aluminum. Provide unspliced in lengths up to 20'.
Suspend track with two-piece clamp hanger formed from 14 gauge steel. Install end stop at each track end. Where
lengths exceed 20', connect tracks with 4" long, two-piece splicing clamp of cold finished steel.
Provide single carriers, spaced on 12" centers, constructed of two Delrin wheels fastened parallel to extruded
aluminum carrier body with swivel hook for attachment of curtain. Attach Nylatron wear strips at contact points
between carriers and track to minimize friction and noise.
Master carriers shall be two connected assemblies pivoting on a steel connecting plate.
All steel components shall be zinc plated to resist corrosion.
700 SERIES TRACK
No. 712 TRACK BENDER
Steel tool designed for manual bending of
aluminum tracks. Must be anchored to floor or
stationary table.
700 SERIES COMPLETE TRACK COMPONENT GUIDE
No. 713 BENDING TOOL
Heavy steel tool designed for manual, on-
the-job bending of aluminum tracks.
TRACK BENDING TOOLS
PART No. DESCRIPTION 701A 716A 728A
701 Single Carrier ŏ
702 Master Carrier ŏ
706 Clamp Hanger ŏ ŏ ŏ
707* Splice ŏ ŏ ŏ
709 End Stop ŏ ŏ ŏ
710* Track ŏ ŏ ŏ
711 Ceiling hanger ** ** **
716 Nylon B.B. Single Carrier ŏ
717 Nylon B.B. master Carrier ŏ
728 Neoprene B.B. Single Carrier ŏ
729 Neoprene B.B. Master Carrier ŏ
*
Track lengths and splices supplied as required from stock sizes.
**
For ceiling mounted applications, No. 711 provided in lieu of No. 706 Clamp hanger.
When ordering, please specify whether track is ceiling mounted or suspended.
&
5/8"
1-1
1
/16"
1-1/16"
1-3/8"
1-1/8"
1-1
1
/16"
5/8"
2-9/16"
1-1
1
/16"
1-1/8"
1-1/4"
1-3/8"
3-1/8"
7/32”Ш
3"
3-3/4"
3"
