36

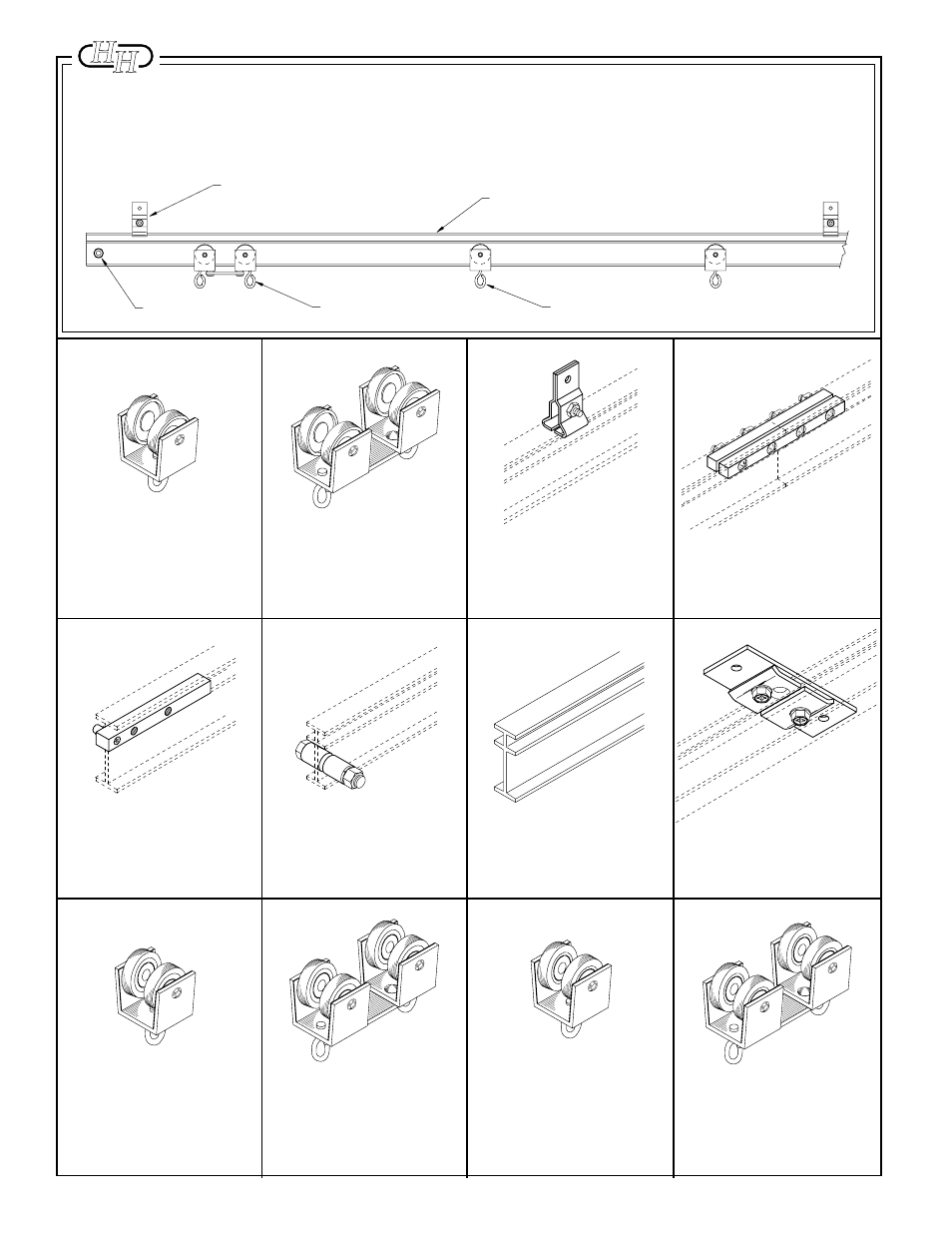

No. 701 SINGLE CARRIER
2 Delrin wheels riveted to extruded aluminum
body with swivel hook. Nylatron glide strips
reduce friction and noise.
700 SERIES LIGHT-DUTY CURVED TRACK
No. 706 CLAMP HANGER
Formed steel brackets clamp to track.
Adjusts to any position. Suspend track with
welded chain or wire rope.1 pair pictured. No. 707 SPLICE
Steel plates align and lock track together. 1
pair pictured.
No. 709 END STOP
Bolt with steel spacers to prevent carriers
from traveling beyond desired location. 1 pair
required for each track.
No. 710 TRACK
Mill finish 6063-T5 extruded aluminum
5/8" wide x 1-11/16" high, .094" thick. 20'
stock length.
No. 711 CEILING HANGER
Steel plate mounts flush to ceiling. Track
clamps to bracket with offset clips.
No. 717 MASTER CARRIER
2 nylon-tired shielded ball bearing wheel
assemblies with swivel pivot on steel con-
necting plate. 1 pair recommended for each
walk-along curtain.
No. 716 SINGLE CARRIER
Nylon-tired shielded ball bearing wheels
riveted to extruded aluminum body with
swivel hook. Nylatron glide strips reduce
friction and noise.
No. 728 SINGLE CARRIER
Neoprene-tired shielded ball bearing wheels
riveted to extruded aluminum body with
swivel hook. Nylatron glide strips reduce
friction and noise.
COMPLETE TRACK
MODEL NUMBERS
701A
716A
728A
No. 702 MASTER CARRIER
2 Delrin wheel assemblies with swivel pivot
on steel connecting plate. 1 pair recom-
mended for each walk-along curtain.
No. 729 MASTER CARRIER
2 neoprene-tired shielded ball bearing wheel
assemblies with swivel pivot on steel con-
necting plate. 1 pair recommended for each
walk-along curtain.
No. 707FX SPLICE
DRILL FIXTURE
Hardened tool steel drill fixture for field drilling
of track for 707 splices.
&
706 CLAMP HANGER
709 END STOP 702 MASTER CARRIER 701 SINGLE CARRIER
710 TRACK
