9
ROUND RUBBER BUMPER
1/8" neoprene bumper placed between carriers
to reduce noise.
No. 230 - for use with 3/16" operating cable.
No. 231 - for use with 3/8" operating line.
No. 221 BLACK SINGLE CARRIER
2 polyethylene wheels riveted to black Super
Tough nylon body having free turning hook
and trim chain for curtain attachment.
BLACK REAR FOLD GUIDE
For use with No. 221 carriers. Allows curtain
to fold at offstage edges.
Supplied with 1 rubber bumper.
No. 222 - for use with 3/8" operating line.
No. 223 - for use with 3/16" operating cable.

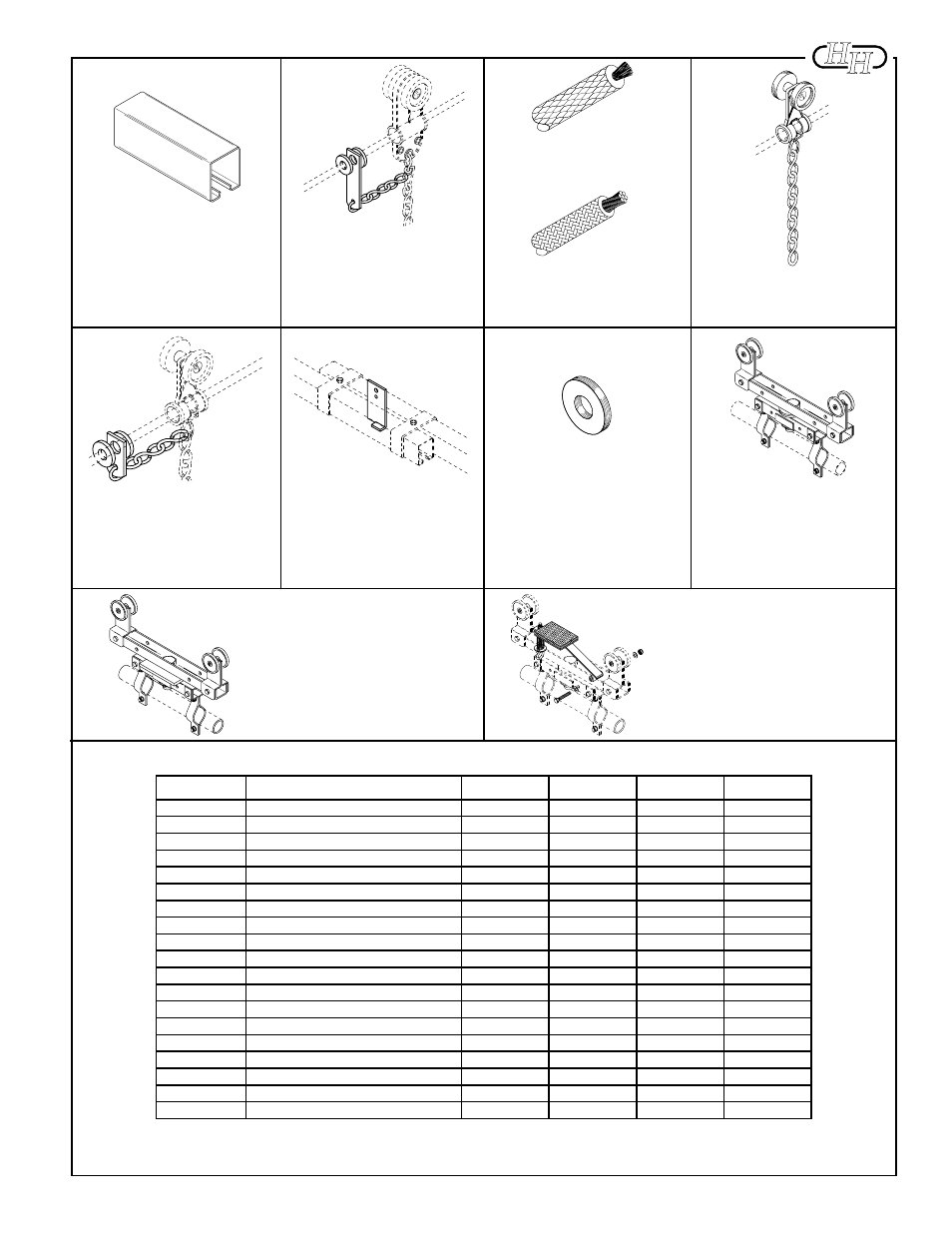

200 SERIES COMPLETE BLACK TRACK COMPONENT GUIDE
No. 20 BLACK PIVOT DEVICE
Heavy steel construction with nylon wheels.
Supplied with brackets for 1-3/8" O.D. pipe
or tubing (6' max. recommended length).
Allows masking draperies to be rotated
to any angle.
Working Load Limit: 75 pounds.
No. 214 BLACK
OPERATING LINE
3/8" diameter black polyester braided over
solid aramid core for manual operation.
BLACK REAR FOLD GUIDE
For use with No. 201 carriers. Allows curtain
to fold at offstage edges.
Supplied with 1 rubber bumper.
No. 212 - for use with 3/8" operating line.
No. 213 - for use with 3/16" operating cable.
No. 215 BLACK
OPERATING CABLE
3/16" diameter black polyester jacket
braided over 3/32" galvanized aircraft cable.
For use with motorized tracks.
No. 226 BLACK
CENTER PIPE SUPPORT
Formed steel bracket used to support tracks
at overlap.
No. 20X BLACK
INDEXING PIVOT DEVICE
Pivot device with special plate to index rota-
tion at 22-1/2 degree increments. Supplied
with brackets for 1-3/8" O.D. pipe or tubing
(6' max. recommended length).
Working Load Limit: 75 pounds.
No. 20BK BLACK BRAKE KIT
Spring equipped arm with neoprene pad. Add
to pivot device to prevent undesired movement
along track.
PART No. DESCRIPTION 201B 221B 201S** 221S**
201 Black Single Carrier ŏ ŏ
202 Black Master Carrier ŏ ŏ ŏ ŏ
203 Black Double End Pulley ŏ ŏ
204 Black Single End Pulley ŏ ŏ
205 Black Overlap Clamp ŏ ŏ
206 Black Clamp Hanger ŏ ŏ
207* Black Splice ŏ ŏ
208 Black Adjustable Floor Block ŏ ŏ ŏ ŏ
209 Black End Stop & Cord Support ŏ ŏ
210B* Black Track ŏ ŏ
214 3/8” Operating Line ŏ ŏ ŏ ŏ
221 Black Single Carrier ŏ ŏ
110S* Track ŏ ŏ
403 Double End Pulley ŏ ŏ
404 Single End Pulley ŏ ŏ
105 Overlap Clamp ŏ ŏ
106 Clamp Hanger ŏ ŏ
107 Splice* ŏ ŏ
409 End Stop & Cord Support ŏ ŏ
*
Track lengths and splices supplied as required from stock sizes. Ceiling splices not available due to interference
with carrier wheels.
**
&RPSRQHQWVLQ0RGHOV6 6DUHDPL[WXUHRIEODFN]LQFSODWHGDQGJDOYDQL]HG¿QLVK
No. 210B BLACK TRACK
16 gauge galvanized steel, roll-formed to
1-3/4" wide x 2" high with semi-gloss black
powder coat finish. 16', 20' and 24' stock
lengths.
&
