H&H Specialties 100 Series Track Installation Instructions - Manual (Page 4)

4
SINGLE CARRIER
2 polyethylene wheels riveted to plated steel
body with swivel hook.
No. 101 - Zinc plated.
No. 101B - Black finish.
MASTER CARRIER
4 polyethylene wheels riveted to steel body
with 2 swivel hooks. Supplied with 2 clamps
for anchoring operating line or cable. 1 pair
required for overlapping tracks.
No. 102 - Zinc plated.
No. 102B - Black finish.
DOUBLE END PULLEY
2-1/2" diameter Nylatron GS sheaves with
shielded ball bearings. Steel housing clamps
to underside of track. Chain bracket for secur-
ing offstage curtain edge.
No. 103 - Zinc plated.
No. 103B - Black finish.
END STOP & CORD SUPPORT
Steel clamp with eye to support operating line
and prevent carriers from traveling beyond
desired location. 1 pair required for overlap-
ping tracks.
No. 109 - Zinc plated.
No.109B - Black finish.
OVERLAP CLAMP
Formed steel clamps to align track at overlap.
1 set pictured.
No. 105 - Zinc plated.
No. 105B - Black finish.
No. 108 BLACK
ADJUSTABLE FLOOR BLOCK
4" diameter Nylatron GS sheave with shielded
ball bearing in steel housing.
9" vertical adjustment.
SPLICE
Formed steel brackets align and lock track
sections together. 1 pair pictured.
No. 107 - Zinc plated.
No. 107B - Black finish.
CLAMP HANGER
Formed steel brackets clamp to track.
Adjusts to any position. Suspend track with
welded chain or wire rope.
1 pair pictured.
No. 106 - Zinc plated.
No. 106B - Black finish.
No. 110A TRACK
Mill finish 6063-T5 extruded aluminum 1-3/4"
wide x 2" high,.080" thick. 20' and 24' stock
lengths.
SINGLE END PULLEY
2-1/2" diameter Nylatron GS sheave with
shielded ball bearing. Steel housing clamps to
underside of track. Chain bracket for securing
offstage curtain edge.
No. 104 - Zinc plated.
No. 104B - Black finish.

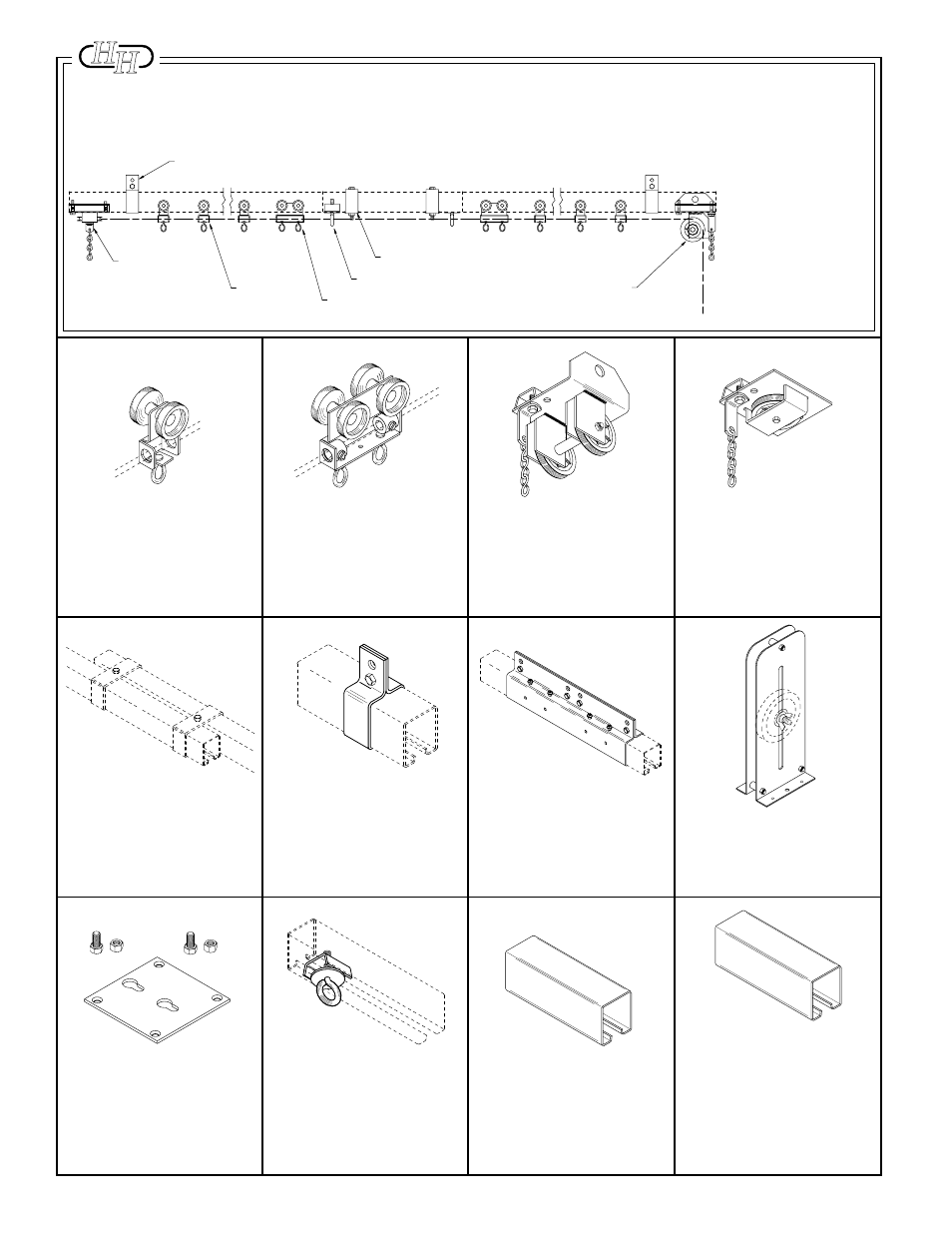

100 SERIES STANDARD-DUTY STRAIGHT TRACK
COMPLETE TRACK
MODEL NUMBERS
101A 116A
101S 116S
101W 116W
No. 108DK BLACK DETACHABLE
FLOOR BLOCK KIT
7 gauge steel plate with hardware for use
with No. 108 Adjustable Floor Block for
quick release.
BLACK
COMPLETE TRACK
MODEL NUMBERS
101SB 116SB
101WB 116WB
TRACK
16 gauge galvanized steel, roll-formed to 1-3/4"
wide x 2" high.
No. 110S- 8', 10', 12', 16', 18', 20', 24', and
26' stock lengths.
No. 110S-B- Semi-gloss black powder
coat finish. 16', 20', and 24'
stock lengths.
&
106 CLAMP HANGER
104 SINGLE
END PULLEY
102 MASTER CARRIER
101 CARRIER
105 OVERLAP CLAMP
109 END STOP
103 DOUBLE END PULLEY
