6. Installation (Arched Windows)
GreenGuard® SuperStretch
™ Butyl Flashing will conform to the contour of any
opening with arched or curved dimensions as shown in Figure 5. Remove the
release paper and then press GreenGuard® SuperStretch
™ Butyl Flashing against
the wall, making sure that all flashing seams are overlapped at least 2 inches (50
mm).
7. Installation (Kickout Flashing)
Install kickout flashing at roof to wall intersection. Be sure to lap building wrap
over step flashing and kickout flashing. A section of GreenGuard® Flashing behind
the edge of the fascia board is recommended.
8.
Installation (Deck or Porch Attachment to Wall)
GreenGuard® Flashings can be used to provide a weatherproof seal at areas
where there is an attachment made to an exterior wall, such as the attachment of
a deck or porch. Figure 7 shows the installation of GreenGuard® Flashing at the
ledger board of a deck attachment.
9. Installation (Sill Plate)
GreenGuard® Flashing can be used to form a weatherproof seal at sill plate
locations where they are installed between the sill plate and the foundation and
over the seam between the sill plate and the foundation wall as shown in Figure
8.
1-800-241-4402 www.TrustGreenGuard.com
B U I L D I N G W R A P A N D F L A S H I N G I N S T A L L A T I O N

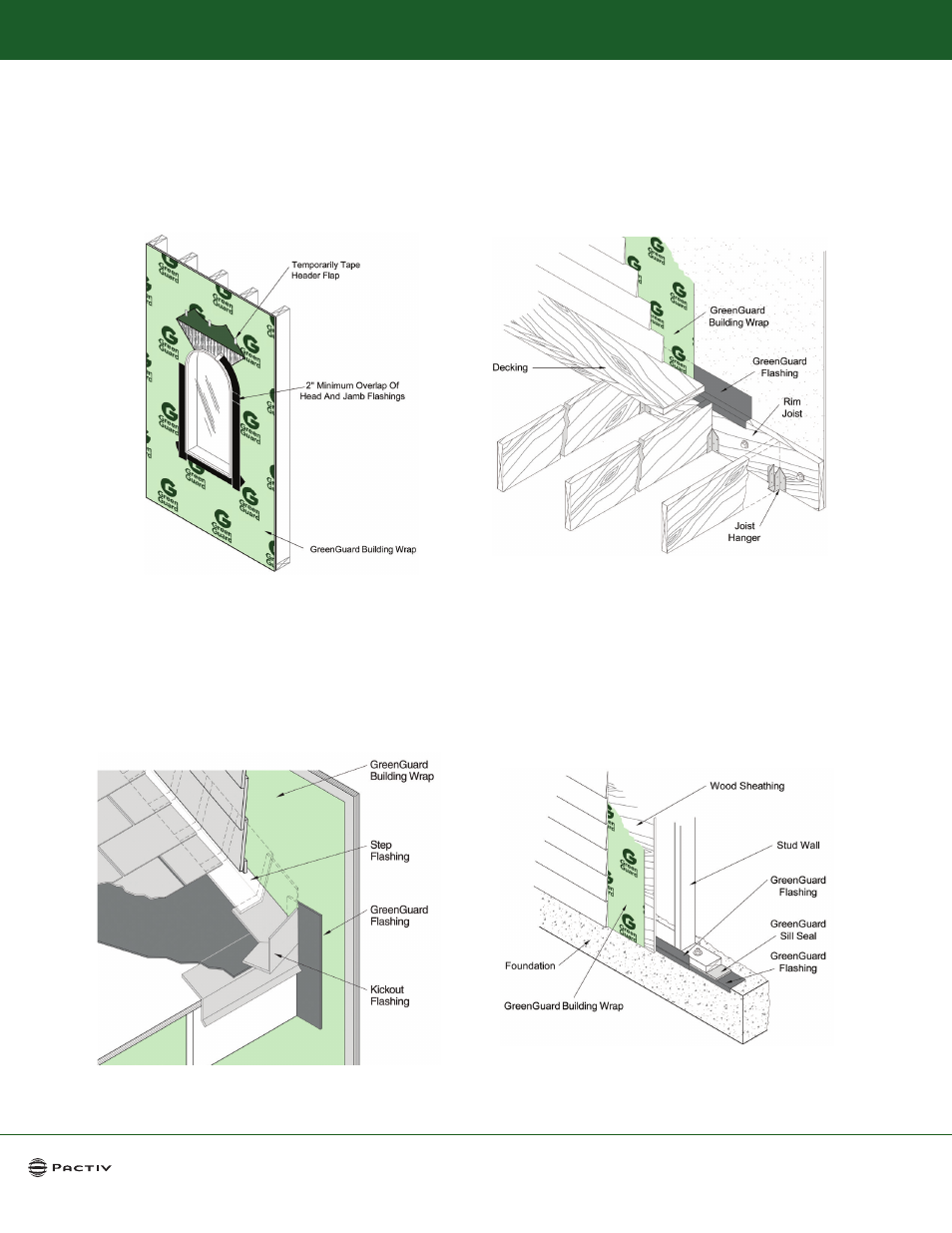

FIGURE 7: INSTALLATION OF FLASHING
LEDGER BOARD
FIGURE 8: INSTALLATION OF FLASHING
AT SILL PLATE
FIGURE 5: INSTALLATION OF FLASHING
ARCHED WINDOW
FIGURE 6: KICKOUT FLASHING
