GreenGuard Roofing Recovery Boards - Manual (Page 5)

Fastening Patterns for GreenGuard ® Roofing Recovery Boards Used Under
Light-Colored Roof Membranes
Fastening Patterns for GreenGuard ® Roofing Recovery Boards Used Under
Dark-Colored Roof Membranes
4 ft. (1.2 m) 4 ft. (1.2 m)
50 ft.
(15.2 m)
8 ft.
(2.4 m)
50 ft.
(15.2 m)
4 ft. (1.2 m)
24
6
12
6 6 6
6
12
50 ft.
(1
5.2 m)
8 ft.
(2.4 m)
4 ft. (1.2 m) 4 ft. (1.2 m)
24 6
12
6
12
12
6

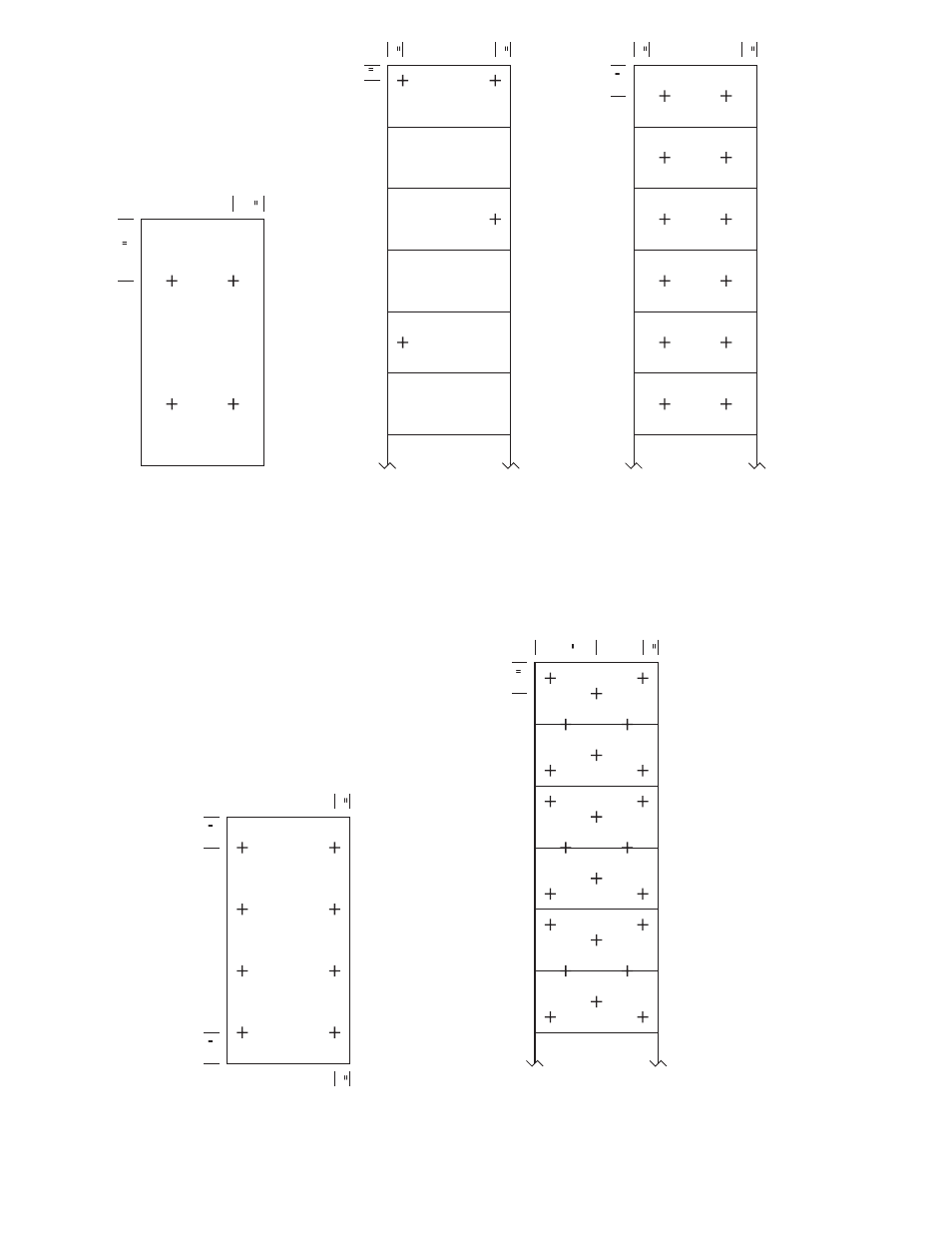

Figure 1
Fastening Pattern
For Sheets
Figure 2
Fastening Pattern
For Fanfold Products
Figure 3
Fastening Pattern
For FM Approvals Jobs
Figure 4
Fastening Pattern
For Sheets
Figure 5
Fastening Pattern
For Fanfold Products
