Optical and Mechanical
Encoders
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

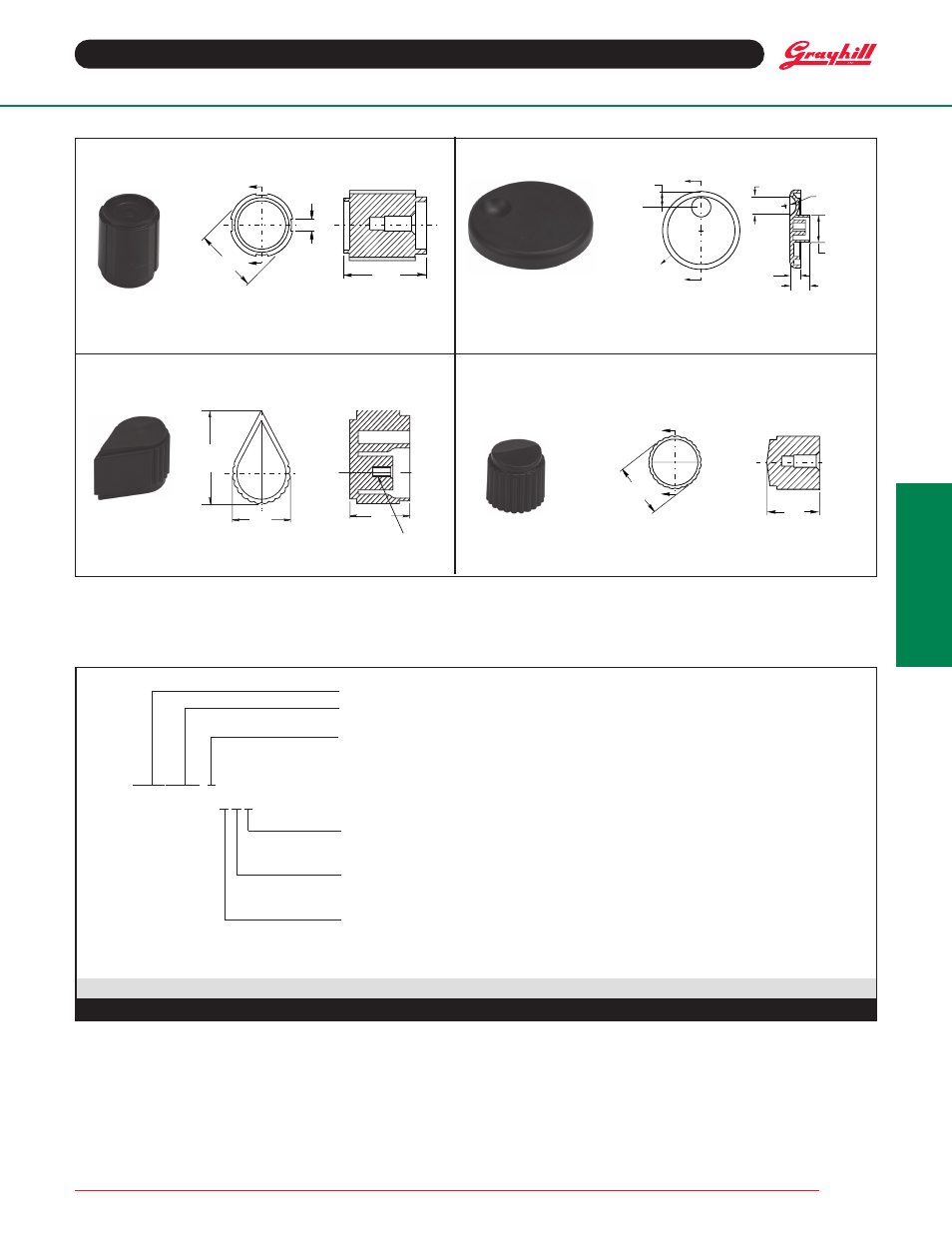

Control Knob Accessories
DIMENSIONS In inches (and millimeters)
.660
(16,76)
.092 (2,34)
TYP.
(4 PLACES)
.500
(12,7)
DIA.
Top View Top View Style 5020 Style 5019
Top View Style 5028
.730
(18,54)
.710
(18,03)
DIA.
1.090
(27,69)
SPRING CLIP
.500
(12,7)
DIA. .500
(12,7)
1.575 DIA.
(40,01)
OF
.220
(5,59) R.
C
L
.315
(8,00)
.550
(13,97)
DIA.
.220 R.
(5,59)
.400
(10,16)
.215
(5,46)
.393
(9,98)
Available in ABS, .250 dia. shaft in spring clip (press-on). The locking clip
is also available, requires a custom shaft.**
Top View Style 5029
*See Ordering Information. **Contact Grayhill representative
For prices and discounts, contact a local sales office or Grayhill.
Custom materials, styles and colors are available.
ORDERING INFORMATION
Series
Style*: 5013, 5014, 5015, 5017, 5019, 5020, 5028, 5029
(see dimension drawings for style options)
Shaft Diameter:
J = .125 dia. shaft
E = .157 (4mm) dia. shaft
K = .250 dia. shaft
11K5028-KCNB
Knob Color:
B = Black
G = Gray
Material:
A = ABS (available on the styles 5017 and 5020 only)
N = Nylon
Version:
C = Spring Clip (press-on)
L = Locking Clip (available on the style 5020 only)
M = Metal Insert w/Set Screw(s)
Encoder
