System 50, 24 channel racks, 24 channel rack: g5 – Grayhill Racks 24 Channel User Manual
Page 2
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
System 50
System 50

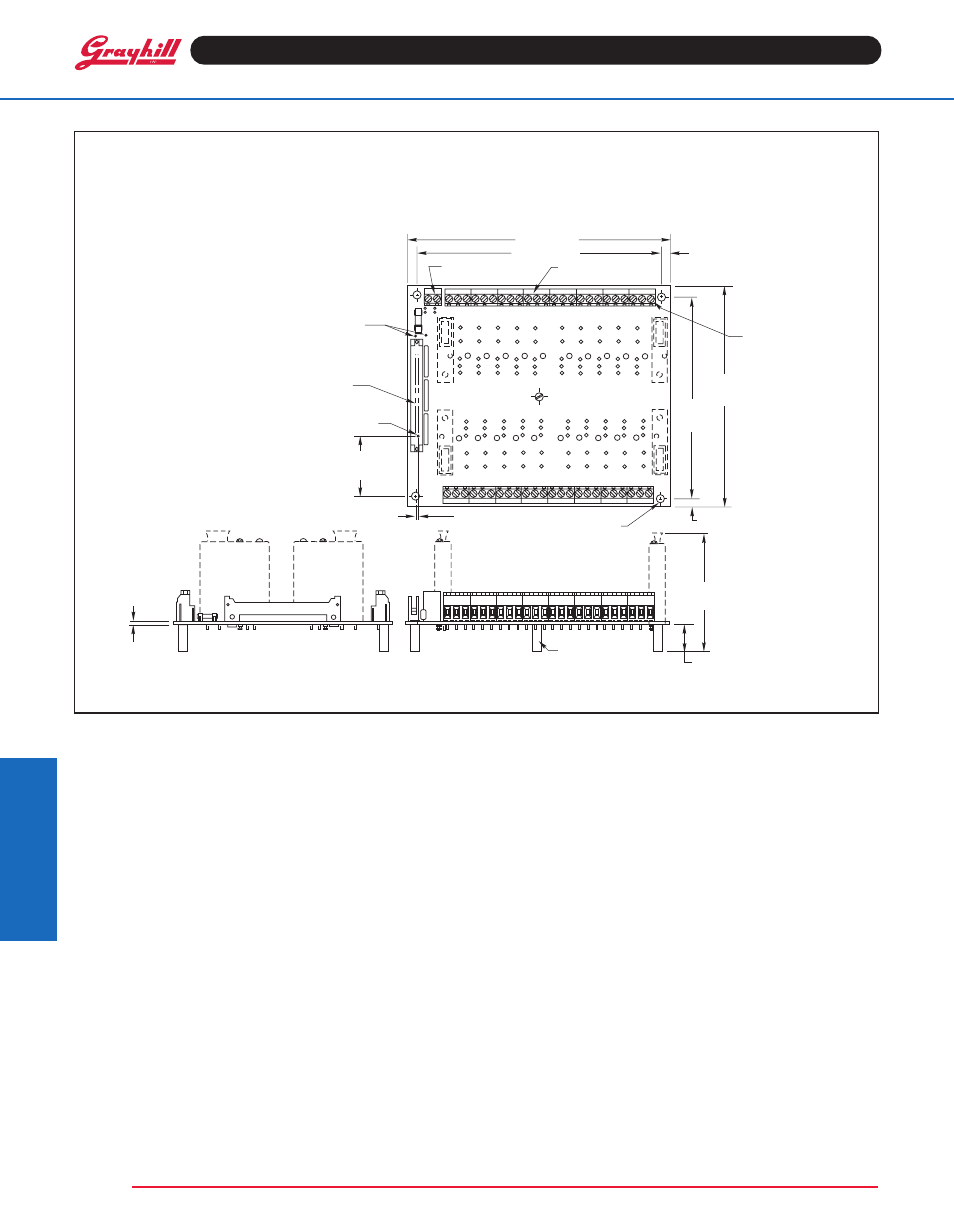

24 CHANNEL RACK: G5
Part No. 70GRCQ24
Dimensions are shown in inches
(and millimeters).
All tolerances are ± 0.010 (0,25)
unless otherwise specified.
24 Channel Racks
System 50
2 3
7.50 (190,5)
7.00 (177,8)
PIN 1
6.25
(158,8)
5.75
(146,1)
HOLES FOR USER
INSTALLED JUMPER
(22 AWG) COPPER
WIRE
LOGIC SUPPLY
TERMINAL STRIP
.25 (6,4)
50 PIN STRAIGHT
HEADER CONNECTOR
FIELD WIRING
TERMINAL STRIP
STANDOFF I.D. 0.15 (3,81) DIA.
(4 PLACES) CLEARANCE
FOR #6 SCREW
NYLON STANDOFF
(1 PLACE)
3.380
(85,85)
.750 (19,05) REF.
.25 (6,4)
.093 (2,36)
REF.
1.675
(42,55)
.075
(1,91)
NOTE: MAXIMUM
TERMINAL SCREW
TORQUE NOT TO
EXCEED 5 IN-LBS.
