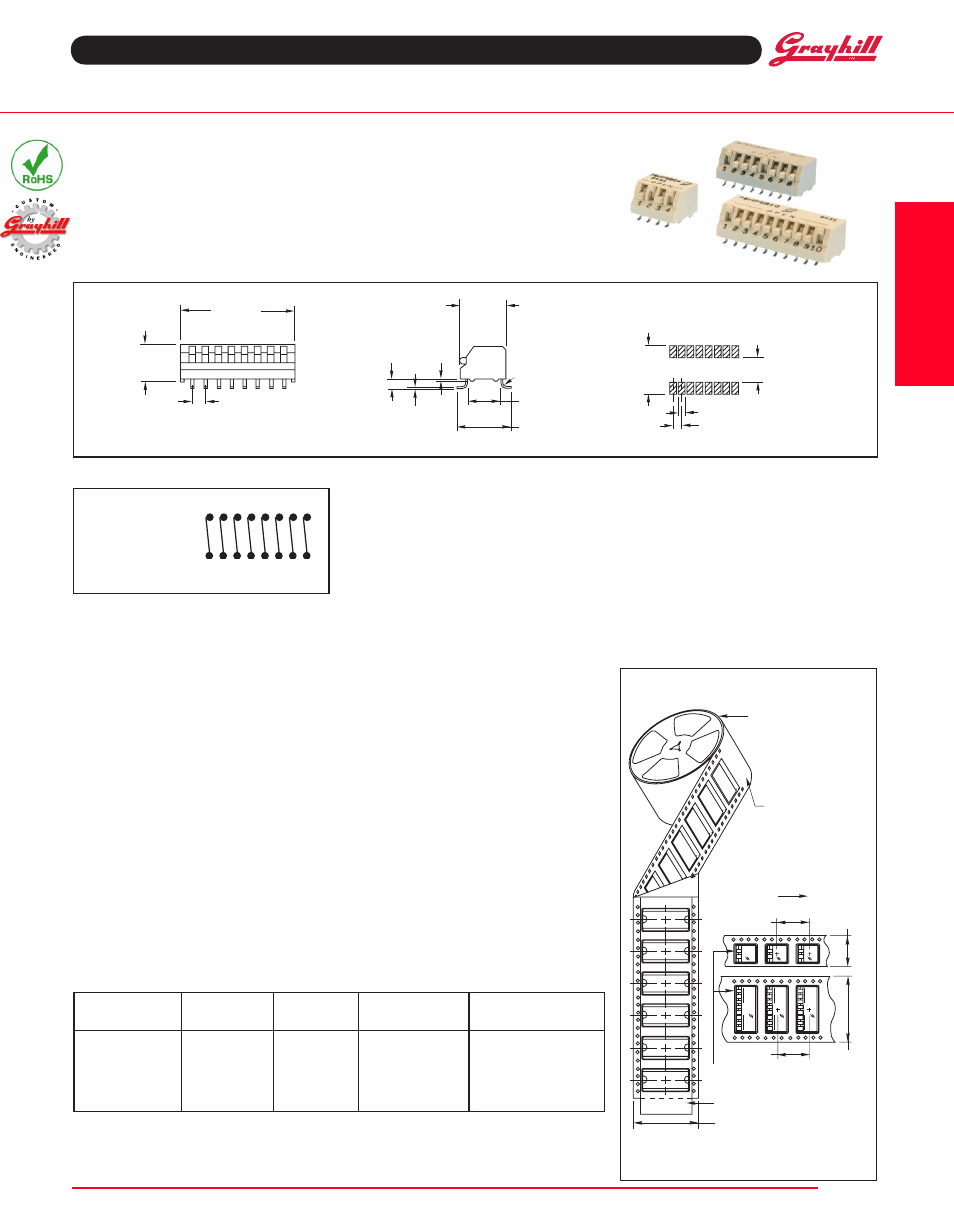

Grayhill DIP Switches: Surface Mount 76HP Series User Manual

Series 76hp, Surface mount dip switches, Side actuated piano-dip

DIP Switches

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

.100 ± .005
(2,54 ± 0,13) tyP.

L C

.305 ± .010

(7,75 ± 0,25)

LeNGtH

± .010 (0,25

See OrDer INFO

.380

± .010

(9,65

± 0,25)

.025 (0,64) r.

.424 ± .015
(10,77 ± 0,38)
tyP.

.303 ± .015
(7,70 ± 0,38)

.023

(5,84)

reF.

.012 ± .001

(0,30 ± 0,03)

tyP.

.055 ± .010

(1,40 ± 0,25)

.280 (7,11)

tyP.

.530

(13,46)

tyP.

L C

.070 (1,78) tyP.
.100 (2,54) tyP.

SerIeS 76HP

Side Actuated PIANO-DIP

DIMeNSIONS

In inches (and millimeters)

recommended PC Pad Dimensions

CIrCUItry

SpecificationS

electrical Ratings

Make-and-break current Rating: 2,000
operations per switch position at 1 mA, 5 Vdc;
50 mA, 30 Vdc; or 150 mA, 30 Vdc
contact Resistance: Initial: 30 mohms
maximum; After Life: 100 mohms maximum
(10 mA at 50 Vdc, open circuit)
insulation Resistance: Minimum, at 100 Vdc
between adjacent closed contacts and also
across open switch contacts. Initial: 2,000
Mohms
Dielectric Strength: Minimum voltage (AC
rMS) measured between adjacent closed
contacts and also across open switch contacts.
Initial: 750 volts; After Life: 500 volts
carry Rating: 5 amps, maximum rise of 20°C
Switch Capacitance: 2 pF at 1 megahertz

Mechanical Ratings

Mechanical Life: 2,000 operations per switch
position

FeAtUreS
• Compatible with SMt Assembly

Including Infrared reflow and
Vapor-Phase

• easily Accessed when PC Boards

are racked

• reliable Spring and Ball Contact

Vibration Resistance: Per Method 204, test
Condition B. 1 mS opening (10 mS allowed)
Mechanical Shock: Per Method 213, test
Condition A. 1 mS opening (10 mS allowed)
thermal Shock Resistance: Per specification;
no failures; passes contact resistance
terminal Strength: Per specification
thermal aging: 1,000 hours at 85°C; no
failures

environmental Ratings

Meets all requirements of MIL- S-83504**. Where
Grayhill performance is superior, the MIL spec
is listed in parentheses.
operating temperature Range: -40°C to +
85°C
Storage temperature Range: -55°C to +
85°C
Moisture Resistance: Per MIL-StD-202,
Method 106

Soldering information

Solderability: Per MIL-StD-202, Method 208
tested to eIA Standard rS-448-2.
Resistance to Soldering Heat: Per MIL-S-83504,
six second test
Recommended processing temperature:
220°C–230°C (1 pass—260°C maximum)
processing position: Switch is to be processed
with all actuators in the closed (on) position as
shipped.

Materials and finishes

Shorting Member: Brass, gold-plated
over nickel barrier.
Base contacts: Copper alloy, gold-plated,
over nickel barrier.
terminals: Copper alloy, matte tin plated over
nickel barrier.
Non-Conductive Parts: Cover is natural color
thermoplastic, actuators are white thermoplastic
(UL94V-O)
tape Seal: Not available with tape Seal.

As viewed from
the top of the
switch in the
positions shown
in the drawing.

Meets requirements of

eIA 481-2 or eIA 481-3

each reel has a 15.750 inch (390 mm)
minimum leader and a 6.30 inch (160 mm)
minimum trailer.

Available from your local Grayhill Distributor. For prices and discounts, contact a local Sales Office,
an authorized local Distributor or Grayhill.

No. of

Length

Carrier Width

Part

Positions*

(inches)

(metric)

Dim. A

Number

0.280"

7,1 mm

24 mm

76HPSB02GWrt

0.480"

12,2 mm

24 mm

76HPSB04GWrt

0.680"

17,3 mm

32 mm

76HPSB06GWrt

0.880"

22,4 mm

44 mm

76HPSB08GWrt

1.080"

27,4 mm

44 mm

76HPSB10GWrt

* For other lengths, contact Grayhill, Inc.
** Note: 100% matte tin terminal plating does not meet MIL-S-83504 for lead content.

OrDerING INFOrMAtION: tape and reel Packaging

(500 switches per reel)

tAPe AND reeL PACkAGING

DIP

Surface Mount DIP Switches

13 INCH
DIAMeter reeL

DIreCtION
OF FeeD

16 & 24mm

tAPe

16mm

32, 44 &

56mm

tAPe

16mm

PIN ONe LOCAtION

CONDUCtIVe
PLAStIC eMBOSSeD
tAPe

COVer tAPe

DIM. A (See OrDer INFO.)
