Slide Switches

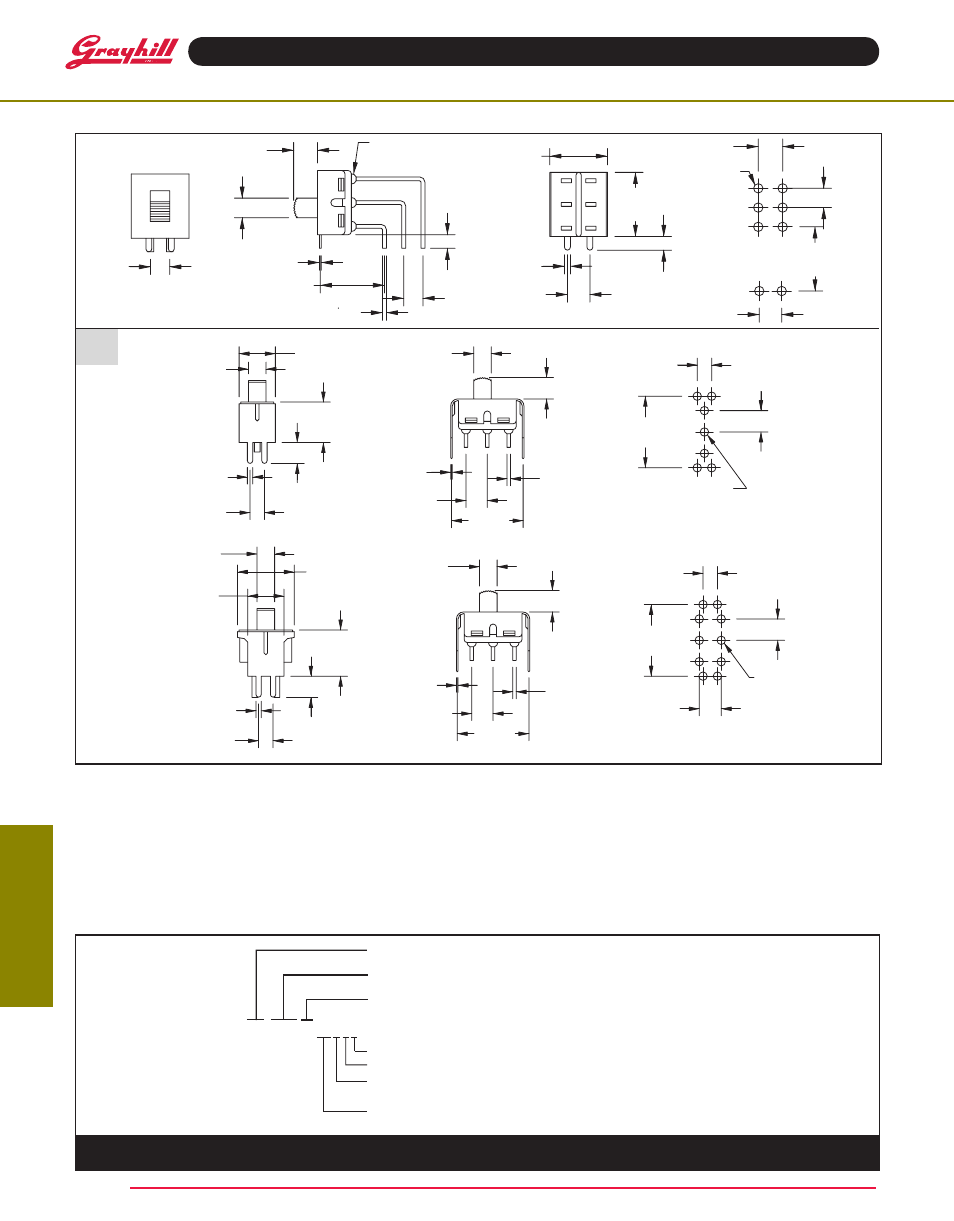

TerMiNATioN oPTioNS in inches (and millimeters)
V2 Vertical Bracket P.C. Mount
SPeciFicATioNS
rATiNgS
contact rating: Q option - 5A with resistive
load @ 125 VAC or 28 VDC; 2A with resistive
load @ 250 VAC. R option - 0.4 VA max @ 20
Vmax (AC or DC)
electrical life: 30,000 cycles at full load
contact resistance: 10 milliohms max. initial
@ 2-4 VDC, 100 mA
insulation resistance:1,000 megaohms min
dielectic Strength: 1,000 V RMS @sea level
operating Temperature: -30°C to 85°C
MATeriAlS
case: Diallyl phthalate (DAP) (UL94V-0)
Housing: Stainless steel
Slide Handle: Nylon
Terminal/contacts: Copper alloy with gold
over silver plate.
Terminal Seal: Epoxy
orderiNg iNForMATioN
Available from your local grayhill component distributor. For prices and discounts, contact a local Sales Office, an authorized local
Distributor or Grayhill.
Series 48A: Slide Switches
dPdT
SPdT
dPdT
1
2
3
4 5 6
EPOXY
SEAL
.186
(4.72)
.152
(3.86)
.014
(0.36)
.500
(12.70)
.030
(0.76)
.150
(3.81)
.106
(2.69)
.500
(12.70)
.175
(4.45)
.046
(1.17)
.450
(6.60)
.175
(4.45)
.150
(3.81) Ш.073
(Ш1.85)
.150
(4.83) .106
(2.69)
.500
(12.70)
.190
(4.83)
1 2 3
4 5 6
.350
(8.90)
.181
(4.60)
.314
(8.00) .152
(3.86)
.046
(1.17)
.125
(3.18)
.152
(3.86)
.620
(15.75)
.014
(0.36)
.185
(4.70)
.030
(0.76)
.186
(4.72)
.620
(15.75)
.185
(4.70)
.125
(3.18)
Ш.073
(Ш1.85)
.400
(10.16)
.314
(8.00)
.152
(3.86)
.046
(1.17)
.125
(3.18)
.152
(3.86)
.620
(15.75)
.014
(0.36)
.185
(4.70)
.030
(0.76)
.186
(4.72)
.620
(15.75)
.185
(4.70)
.125
(3.18)
Ш.073
(Ш1.85)
.184
(4.67)
.190
(4.83)
.492
(12.50)
48ASSP1S2M6RBT
RoHS Compliant
Mounting Options: A = Mounting Tabs, B= No Mounitng Tabs
Contacts: R = Copper alloy, gold plate over nickel plate,
Q = Copper alloy, silver plate
Termination Options: M1, M2, M3, M6, M7, V2
(See Termination options.)
Actuator Options: S1, S2, S3, S4, S5, S6, S7, T1
(See Actuator options.)
Model: SPDT: SSP1, SSP2, SSP3
DPDT: SDP1, SDP3
Series 48A Slide Switches
